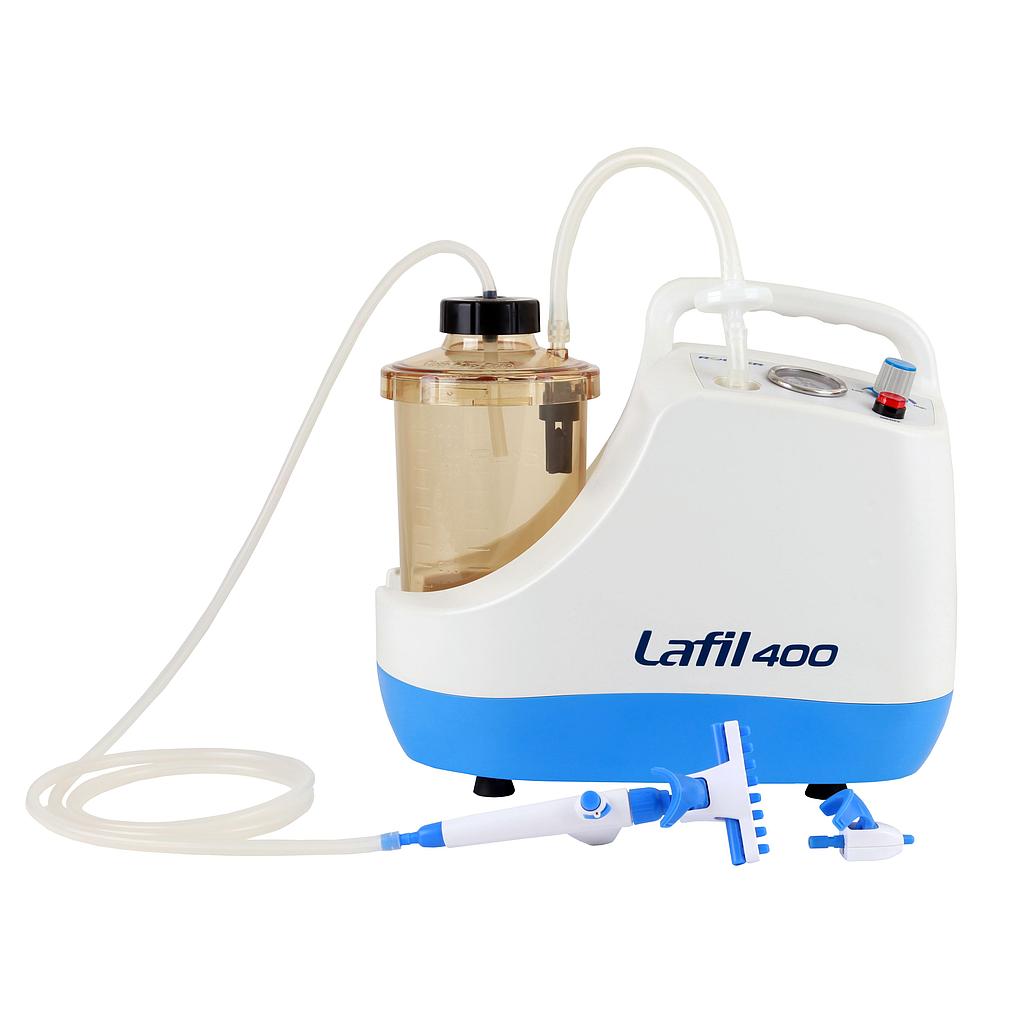

Absaugsystem / Vakuumfiltrationssystem Lafil 400 plus mit PES-Auffanggefäß 1200ml Vakuum-Absaugsystem

00829 197405-22

Stück

Vacuum filtration system Lafil 400 230V,
max. vacuum -720mmHg ,
flow rate 22 l/min, 1450rpm,
port thread 5/16 inch (8mm),
33.5x23x45cm, Handle,
1 channel tip adapter with ejector,
8 channel tip adapter with ejector,
tubing
PES waste bottle 1200ml graduated,
with overflow protection,
cap with suction fitting,
5/16 inch (8mm)

Ideal for:

filtration for microbiology tests
suspended solid tests
general laboratory filtration
vacuum filtration
cell culture aspiration
laboratory waste suction

Features:

-720 mmHg
up to 25 l/min
combines vacuum source with filtration accessories
compact design
different sets available
CE certified

Version
with stopper

Width (Outer)
120 mm

Diameter (outer)
Filter: Ø47 mm / 50 mm

Height (outer)
96 mm

Length (outer)
170 mm

Material
Housing: SUS 304; valve plate: EPDM; diaphragm: EPDM; inlet / outlet port: SUS 316; O-ring: FKM; tube: silicone

Ideal for
Microbiological filtration technique for analysing aqueous-based fluids for microbiological contamination, suspended solid test for municipal, surface, ground and drinking water, general filtration without the need of collection filtrate

Power supply
Current 1.0 A

Connections
EU-plug

Speed
Motor ration: 1750 rpm

Weight
1.16 kg

Capacity
Suction bottle: 1200 ml

Vacuum range
max. -540 mmHg

Accessories
Handle, 1-channel tip adaptor and 8-channel tip adaptor
