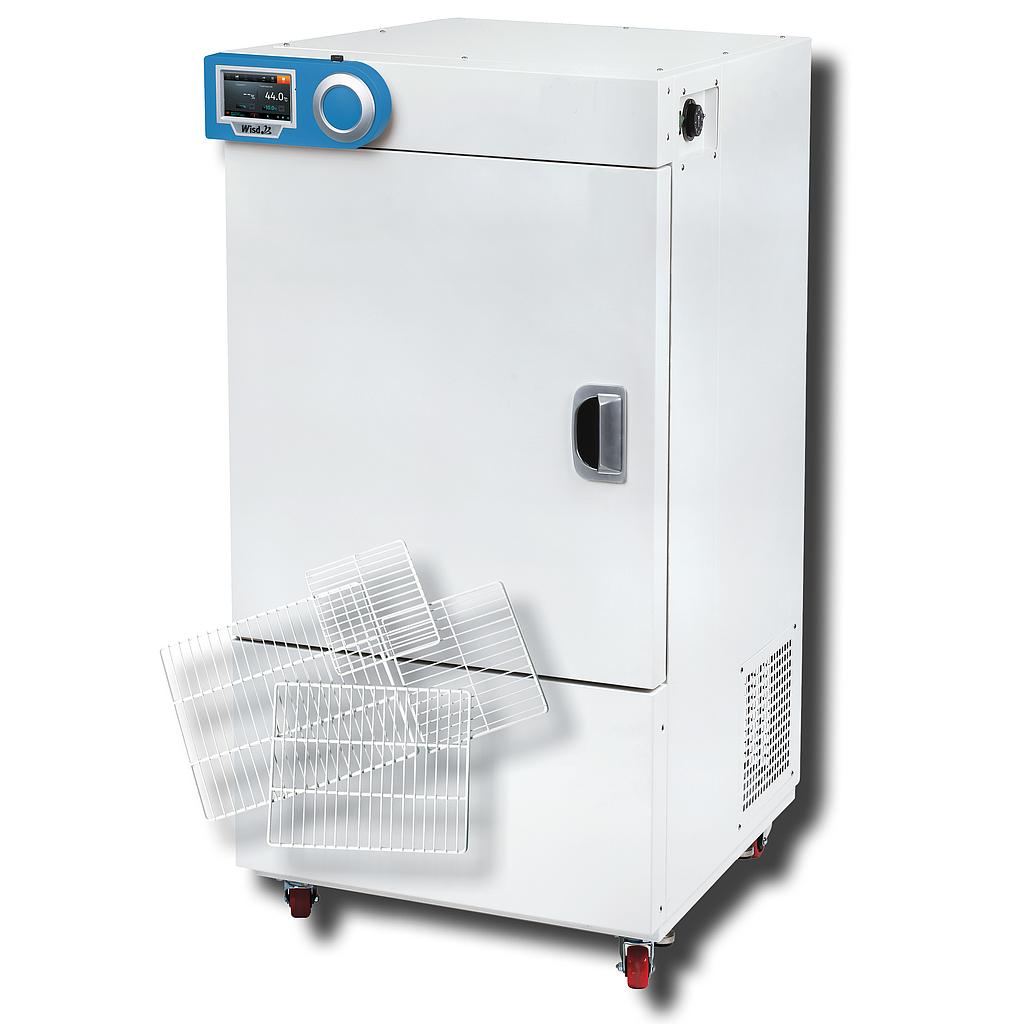

Inkubator SWIR B.O.D. SmartLab 150 Liter 0-60°C

DH.SWIR03150

Stück

Low Temperature Incubator, Type SWIR-150,
with Smart-Lab Controller, 4" Full Touch Screen,
Capacity: 150 Liter,
Temp.Range: 0°C+60°C,
Air circulation: forced convection,
Internal: 505 x 505 x 610 mm,
External: 640 x 832 x 1313 mm,
Heater: 700 W,
Timer: 99 hr. / 59 min.,
Power Supply: 230 V, 50/60 Hz,

Ideal for:

animal and plant cell culture, constant temperature, germination test, BOD test, etc.

Features:

CFC free refrigerant (R-404A)
intelligent refrigerator control prevents compressor overload
superior temperature uniformity by forced-air convection
stainless steel chamber, powder-coated body
tempered glass door to observe samples during incubation
3x PE-coated steel wire shelves included
0°C - +60°C (refrigerated)
CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection and leakage breaker

Controller:

Smart-Lab™ controller with 4? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi

Features

SMART-LabTM Controller

full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnosis
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

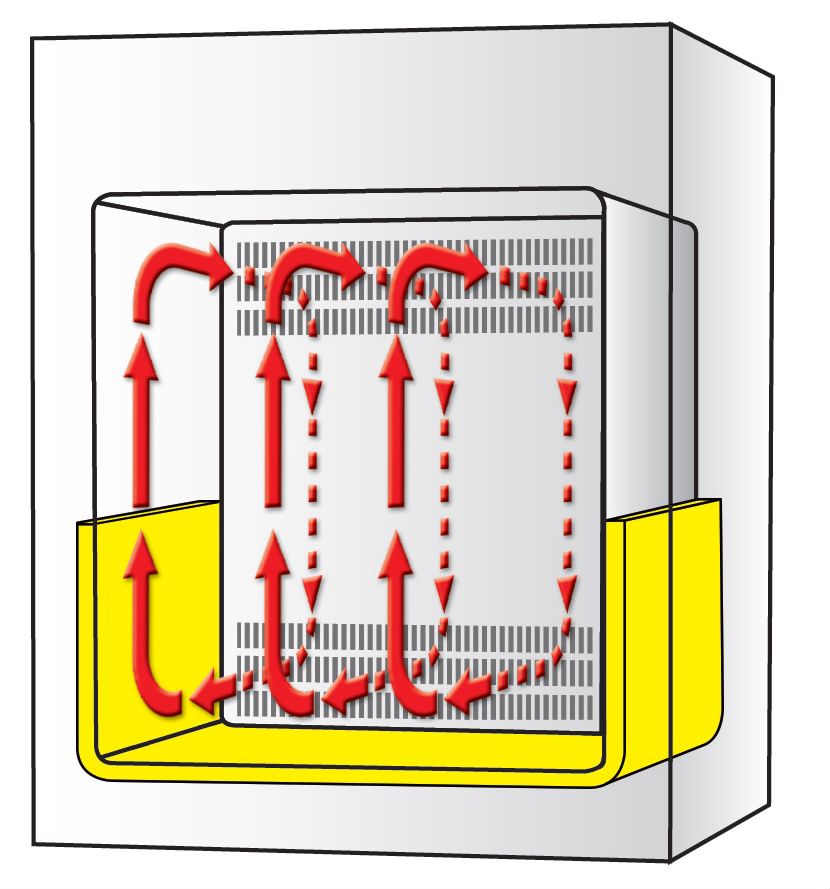

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.

Version
with Smart-LabTM controller, forced-air convection

Width (Outer)
640 mm

Height (outer)
1313 mm

Length (outer)
832 mm

Heating time
20 min. to 37°C, 20 min. to 50°C

Width (inner)
505 mm

Shelves
3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf)

Weight
118 kg

Weight with packaging
191 kg

Heating power
700 W

Height (inner)
610 mm

Capacity
150 l

Compressor
190 W

Refrigerant
R-404A (CFC-free refrigerant)

Length (inner)
505 mm

Power consumption
1600 W

Temperature variation
±0.5°C at 37°C, ±1.4°C at 50°C

Temperature range
0°C - +60°C

Temperature accuracy
±0.2°C to 37°C

Packing size
900 x 1000 x 1650 mm

Recovery time
10 min. to 37°C, 12 min. to 50°C

Sensor
Temperature sensor PT100
