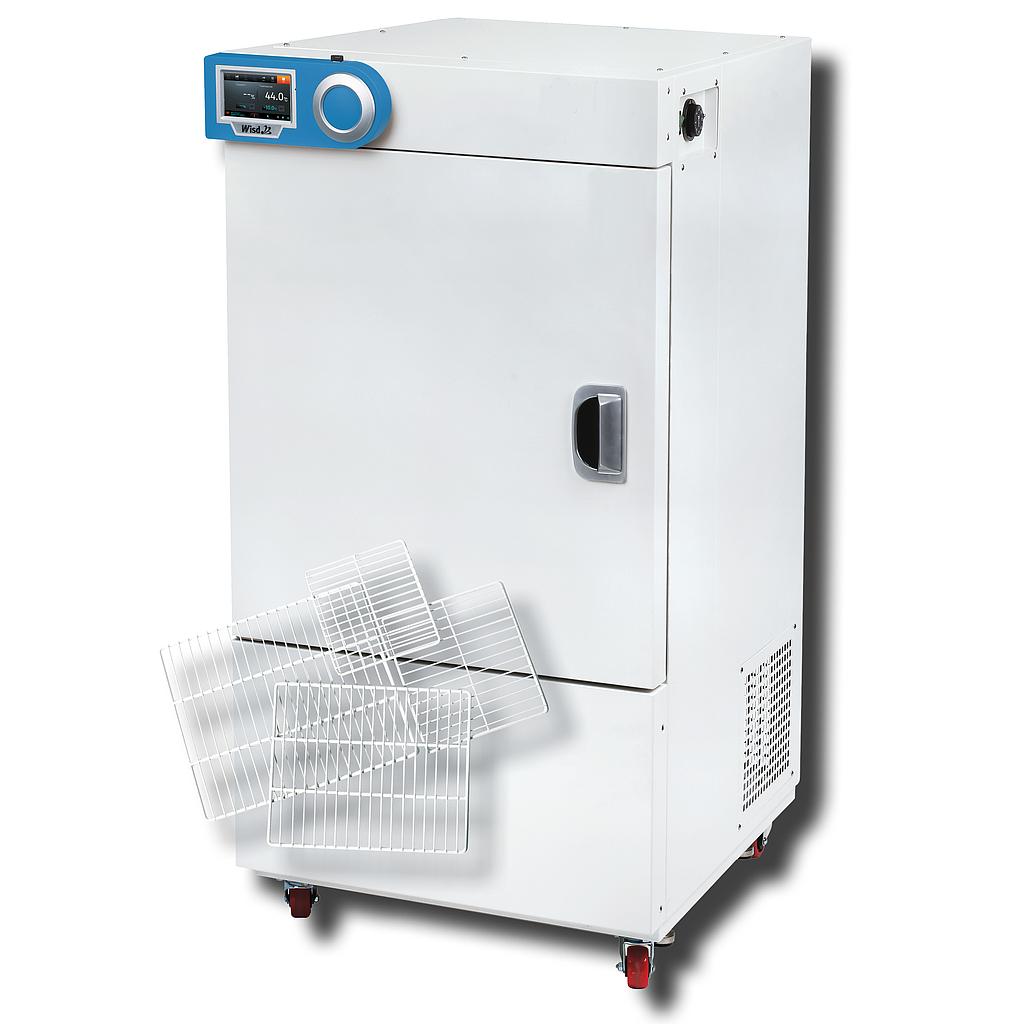

Inkubator SWIR B.O.D. SmartLab 420 Liter 0-60°C
ArtikelnummerDH.SWIR03420
MengeneinheitStück
Low Temperature Incubator, Type SWIR-420,
with Smart-Lab Controller, 4" Full Touch Screen,
Capacity: 420 Liter,
Temp.Range: 0°C+60°C,
Air circulation: forced convection,
Internal: 705 x 605 x 1000 mm,
External: 840 x 932 x 1753 mm,
Heater: 1.2 kW,
Timer: 99 hr. / 59 min.,
Power Supply: 230 V, 50/60 Hz,
Ideal for:
animal and plant cell culture, constant temperature, germination test, BOD test, etc.
Features:
CFC free refrigerant (R-404A)
intelligent refrigerator control prevents compressor overload
superior temperature uniformity by forced-air convection
stainless steel chamber, powder-coated body
tempered glass door to observe samples during incubation
3x PE-coated steel wire shelves included
0°C - +60°C (refrigerated)
CE & UL/CUL certified and unique serial number for tracing
Safety mechanism:
overheat and over-current protection
sensor error detection and leakage breaker
Controller:
Smart-Lab™ controller with 4? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi
Features
SMART-LabTM Controller
full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnosis
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC
Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.
Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

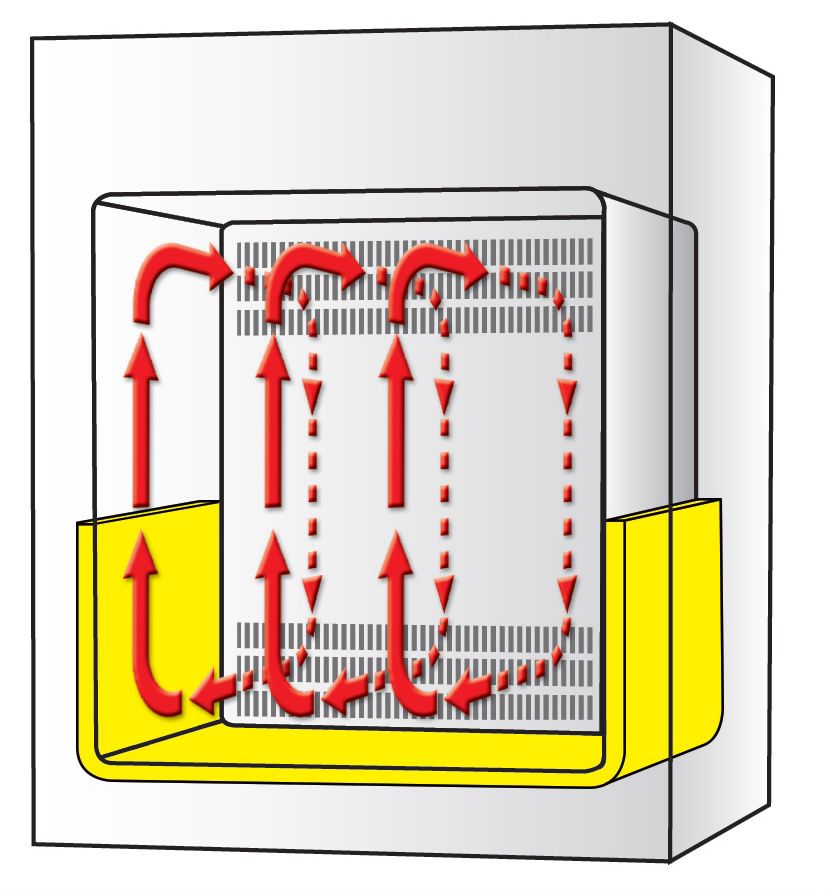

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.
Version
with Smart-LabTM controller, forced-air convection
Width (Outer)
840 mm
Height (outer)
1753 mm
Length (outer)
932 mm
Heating time
35 min. to 37°C, 35 min. to 50°C
Width (inner)
705 mm
Shelves
3 PE-coated steel wire shelves included, total load 48kg (16kg per shelf)
Weight
202 kg
Weight with packaging
277 kg
Heating power
1200 W
Height (inner)
1000 mm
Capacity
420 l
Compressor
370 W
Refrigerant
R-404A (CFC-free refrigerant)
Length (inner)
605 mm
Power consumption
2300 W
Temperature variation
±0.5°C at 37°C, ±1.4°C at 50°C
Temperature range
0°C - +60°C
Temperature accuracy
±0.2°C to 37°C
Packing size
1100 x 1100 x 2140 mm
Recovery time
12 min. to 37°C, 15 min. to 50°C
Sensor
Temperature sensor PT100
