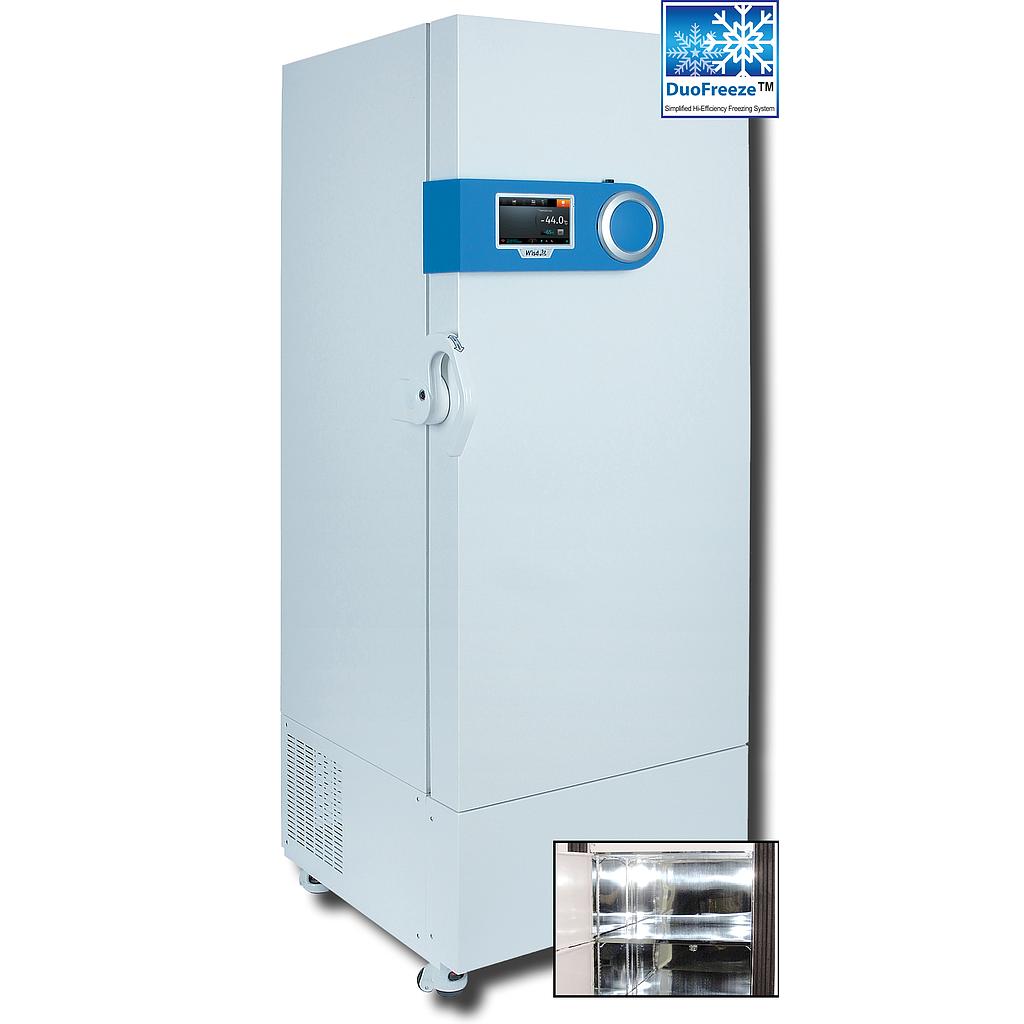

Tiefkühlschrank SWUFD DuoFreeze SmartLab 714 Liter -95°C
ArtikelnummerDH.SWUF01700
MengeneinheitStück
Ultra-Low Temperature Freezer, digital, type SWUF-D700,
Upright type,
temperature range: -90°C to -65°C,
capacity: 714 Liter,
with ergonomic 7"-Full-Touchscreen TFT LCD (Smart-Lab™ Controller),
with WiRe™-App- and web service,
internal dimension: 880 x 620 x 1310 mm,
external dimension:1120 x 870 x 1900 mm,
no protection against explosion,
incl. 3 stainless steel shelves,
power supply: 230 V, 1 phase, 50/60 Hz
Ideal for:
ultra low refrigeration
Features:
CFC free refrigerant (R-404A)
DuoFreeze™ with 2 compressors: when one system fails, the other still cools down to -80°C
automatic vacuum breaker – easy to re-open the door
external temperature sensor hole
block condenser removes filter & causes of related failure
filter-free mechanism lowers heat from the compressor
easy maintenance and improved performance
high-quality insulation panel and inner doors ensure defrosting around outer surface
easy monitoring and control – eye level controller
stainless steel interior, powder-coated steel body and inner door
3x stainless steel shelves to separate chamber into 4 sub-chambers included
castors for easy movement
UL/CUL, CE & RoHS certified and unique serial number for tracing
SWUF-D500 model is GMP certified
Safety mechanism:
push alarm service to your smartphone
sensor error detection
door locking system, door open error
door ajar and power failure alarm
standard warning and alarm functions
Controller:
Smart-Lab™ controller with 7? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi
Features
DuoFreezeTM system:The combination of a doubled UniFreezeTM system ensures temperatures down to -95°C. The second system also acts as backup system.
Green product
RoHs certified:No hazardous substances (Pb, Cd, Hg, Hex-Cr, PBB, PBDE) are used in all UniFreezeTM and DuoFreezeTM freezers!
Natural refrigerants:Instead of using HFC refrigerants (R-134a, R-404A, R-507) all UniFreezeTM and DuoFreezeTM models have a specially mixed refrigerant mostly consisting of natural materials.
Power consumption: Up to 39% lower than the average competitor.
SMART-LabTM Controller:
full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnosis function and interactive temperature graph
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC
Version
Max. rack quantity: 24 pcs. with 20 (4 x 5) placed racks (RFU50)
Width (Outer)
1120 mm
Height (outer)
1900 mm
Length (outer)
870 mm
Ideal for
Ultra low refrigeration
Width (inner)
880 mm
Shelves
3 stainless steel shelves to separate chamber into 4 sub-chambers included
Weight
320 kg
Weight with packaging
442 kg
Height (inner)
1310 mm
Capacity
714 l
Compressor
2 compressors, hermetic type
Condenser
Block condenser, no pin, filter-free
Refrigerant
R-404A (CFC-free refrigerant)
Length (inner)
620 mm
Power consumption
Dual mode: 596 W/h,; eco mode: 503 W/h
Temperature range
-90°C to -65°C
Packing size
140 x 140 x 221 cm
Sensor
Temperature sensor PT100
