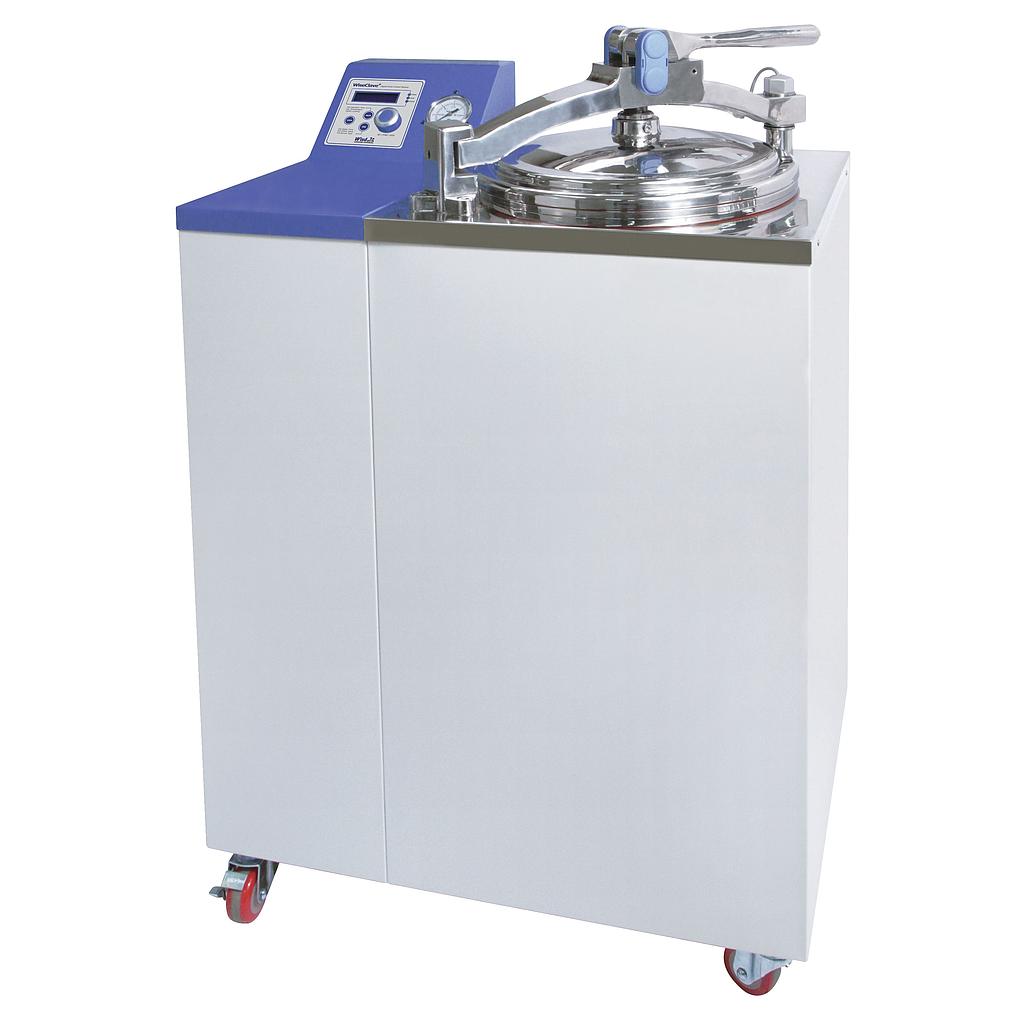

Autoklav / Dampfsterilisator WAC 60 Liter 121°C inklusive Drahthorb und Rekorder

DH.WACR2060

Stück

Steam Sterilizer, vertical, WAC-R60,
capacity: 60 L,
with built-in recording printer (sterilization cycle data),
digital fuzzy-controlled autoclave,
timer 99 hr. / 59 min.,
temperature range: ambient +5°C to +132°C,
inner dimension: Ø 350 x height 650 mm,
ext. dimension: 680 x 470 x 900 mm,
incl. 2 wire baskets,
heating power: 3 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

biotechnology, clinical, environmental, medical and food industry

Features:

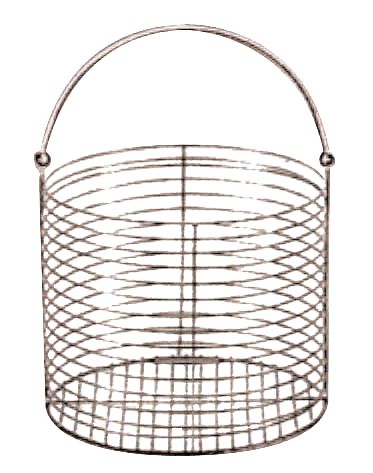

stainless steel wire basket (2 pcs. included) and pressure vessel
powder-coated steel body
top loading sterilizer for loading of large working volume

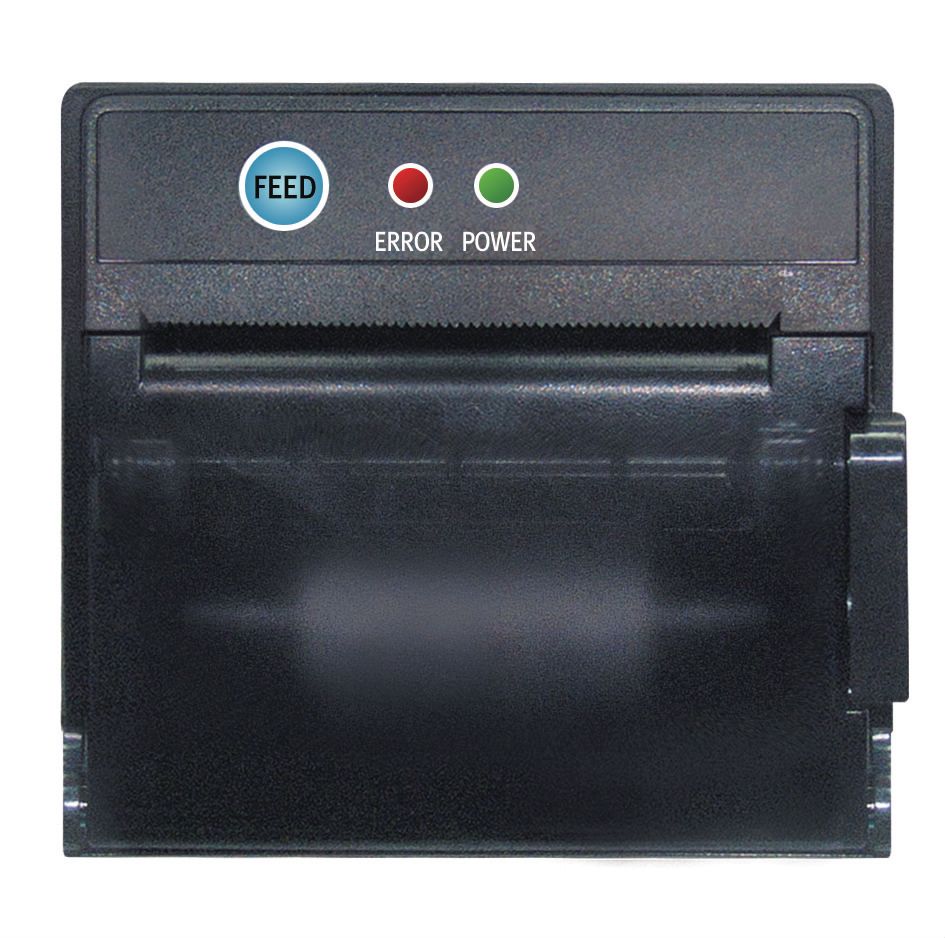

thermal printer (record paper roll w58/ Ø 40 mm) (WAC-R)
solid and liquid mode
with casters for excellent mobility
digital backlight LCD display
digital timer function – delay time and operation time can be controlled
built-in recorder: print sterilization data (only WAC-R)
high-quality backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
automatic over pressure release valve & heat-protective lid
error alarm, power failure and temperature error
water low level detection
electronic door lock sensing system (locks the door over 80°C)

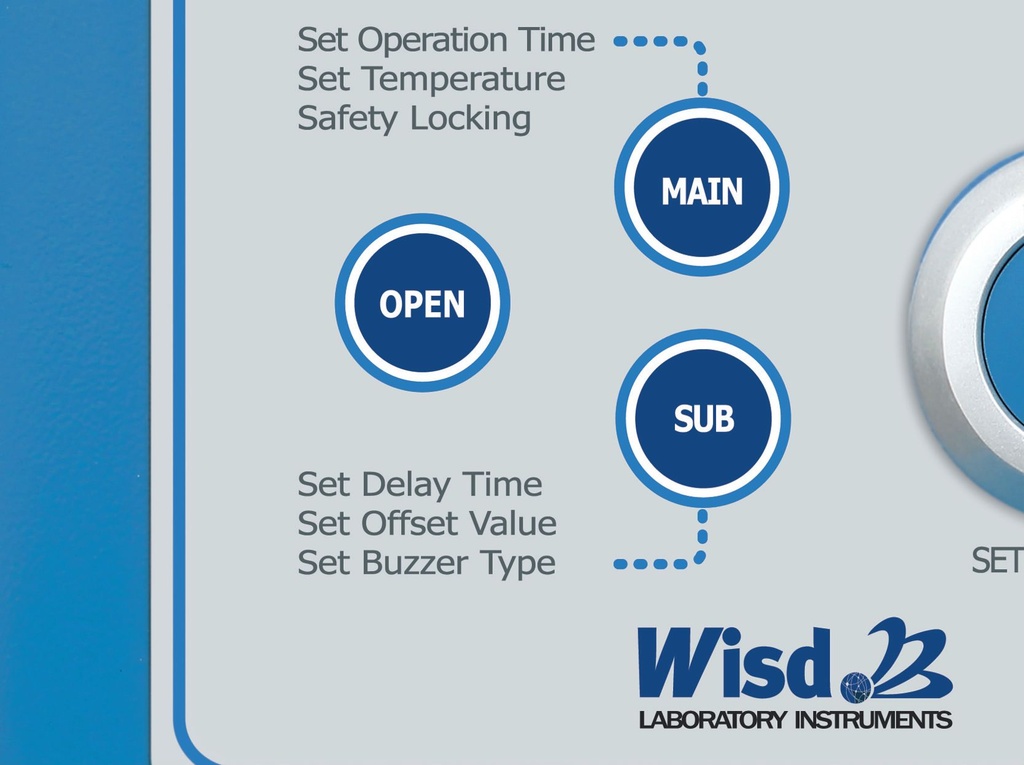

Controller:

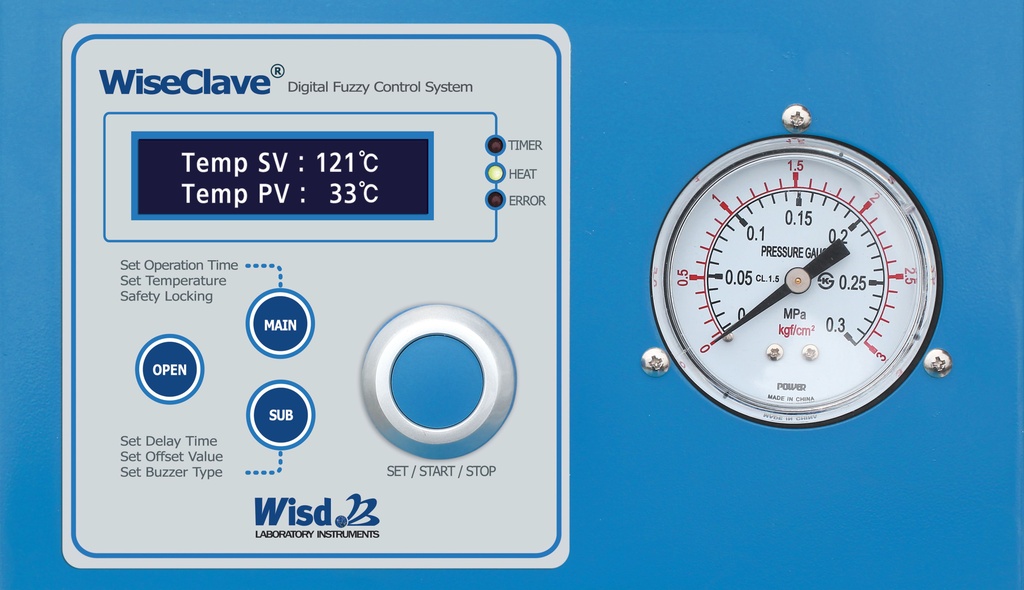

digital fuzzy controller (fully automatic)

Features

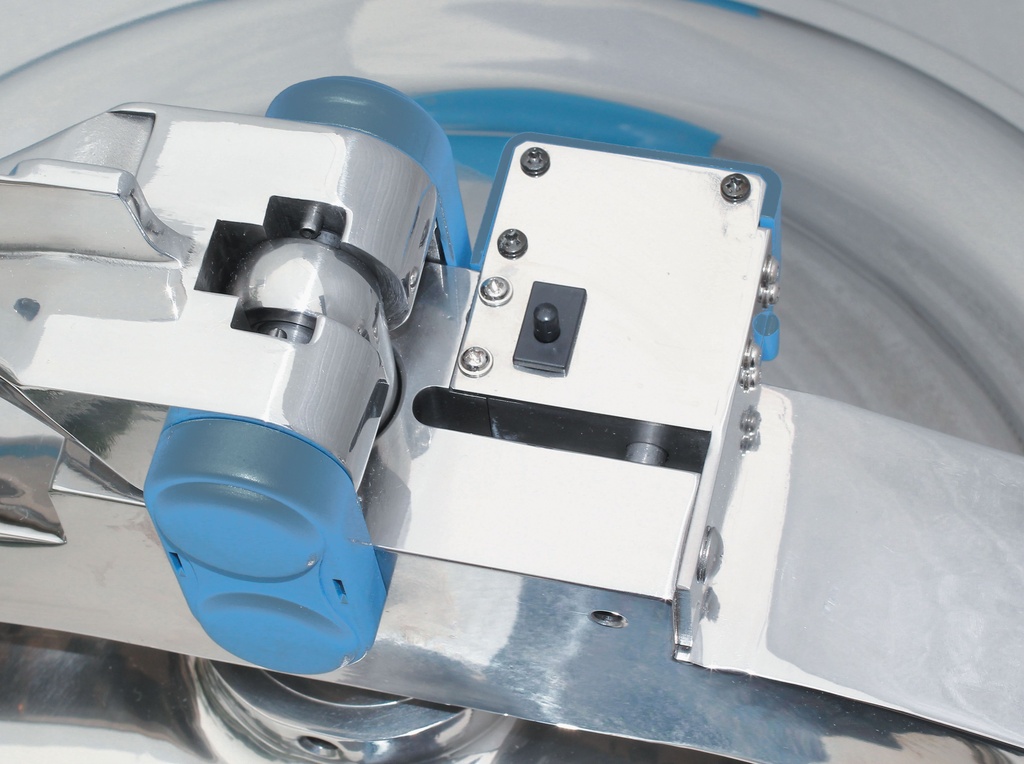

Safety electronic door locking system:Sterilizing cycle only starts when the door is locked. Electro-mechanical sensor, magnetic latch, and one-touch open button work together to implement the perfect safety door, which can be opened only when the temperature and pressure has dropped to a safe level inside the pressure vessel.

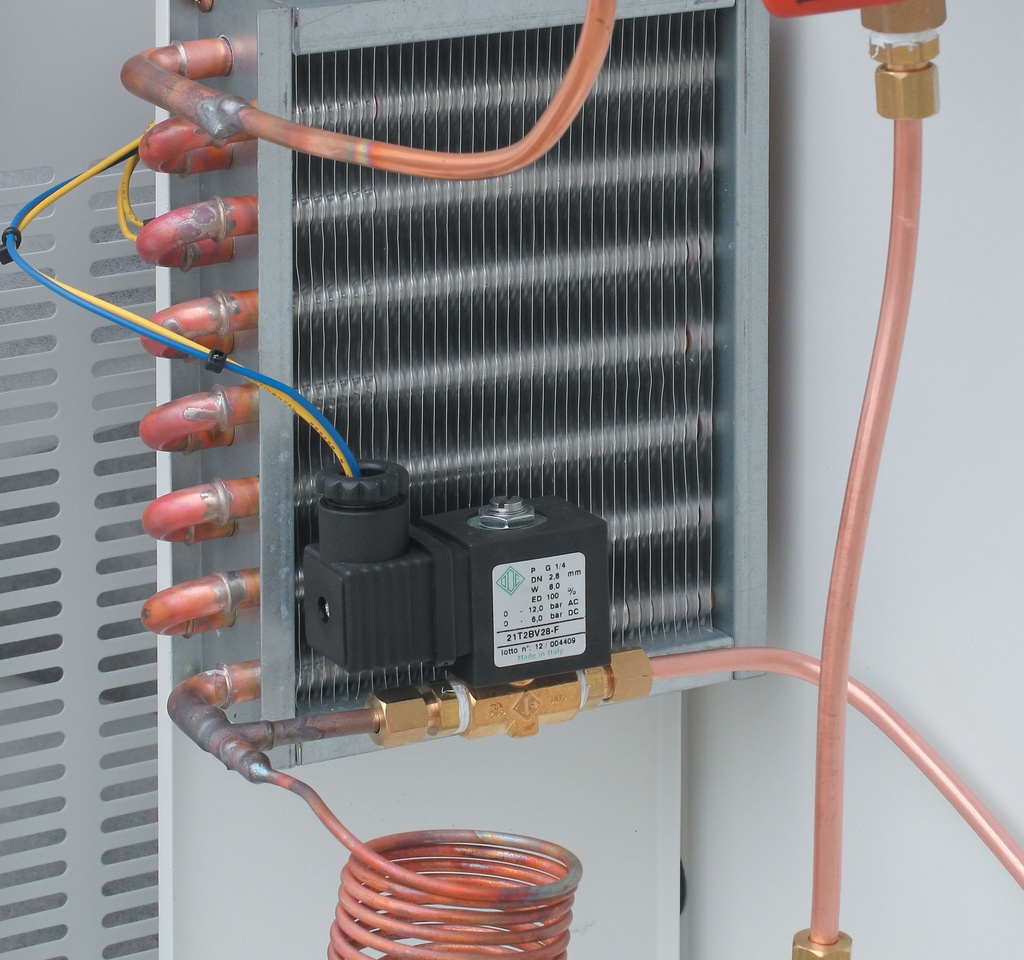

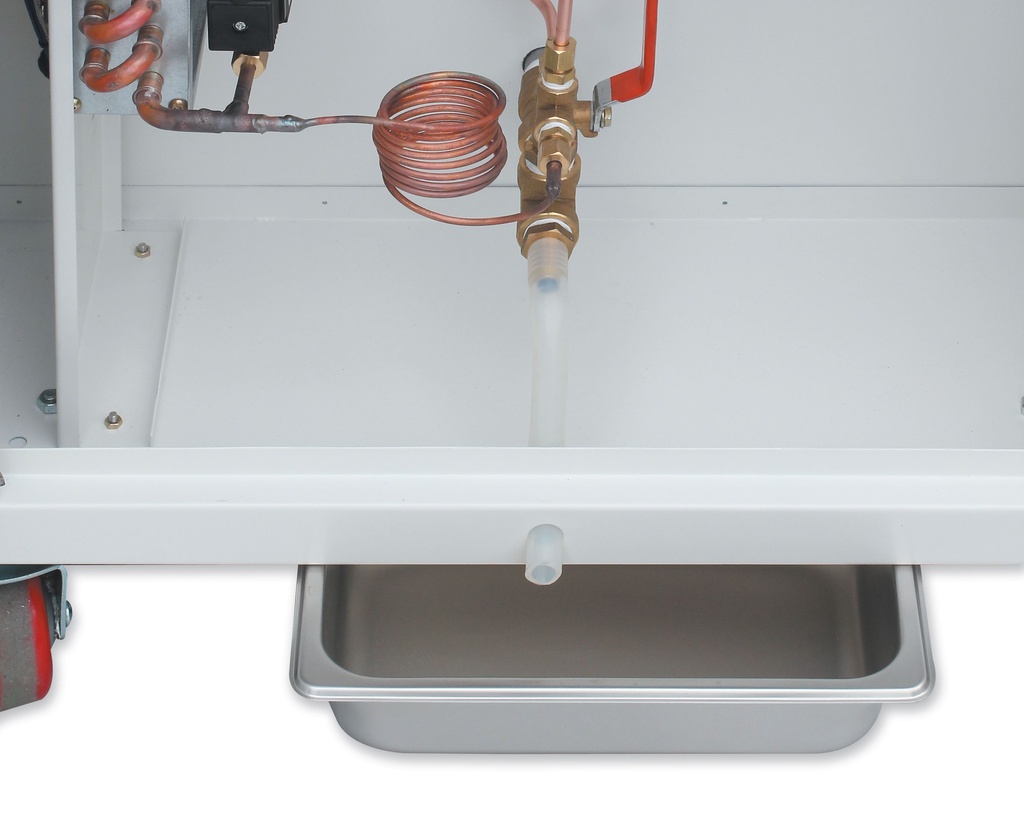

Special steam condensing mechanism:Hot steam generated by sterilizing cycle is not released out directly. It is condensed into a small amount of water just after the sterilizing cycle by a special condensing mechanism, which protects the user from dangerous high temperature steam.

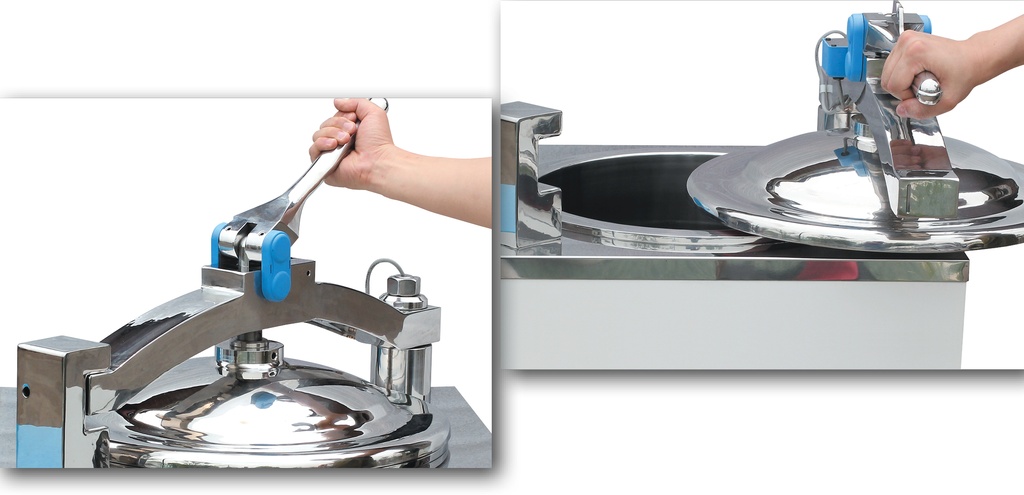

Lever-type sliding door:Opening and closing the autoclave door is smooth and easy due to the lever-type sliding door.

Liquid & solid cycle mode:Optional operation in liquid and solid cycle mode. During liquid mode the temperature decreases very slow and steam is released step by step, during solid mode the temperature decreases very fast and steam is released directly.

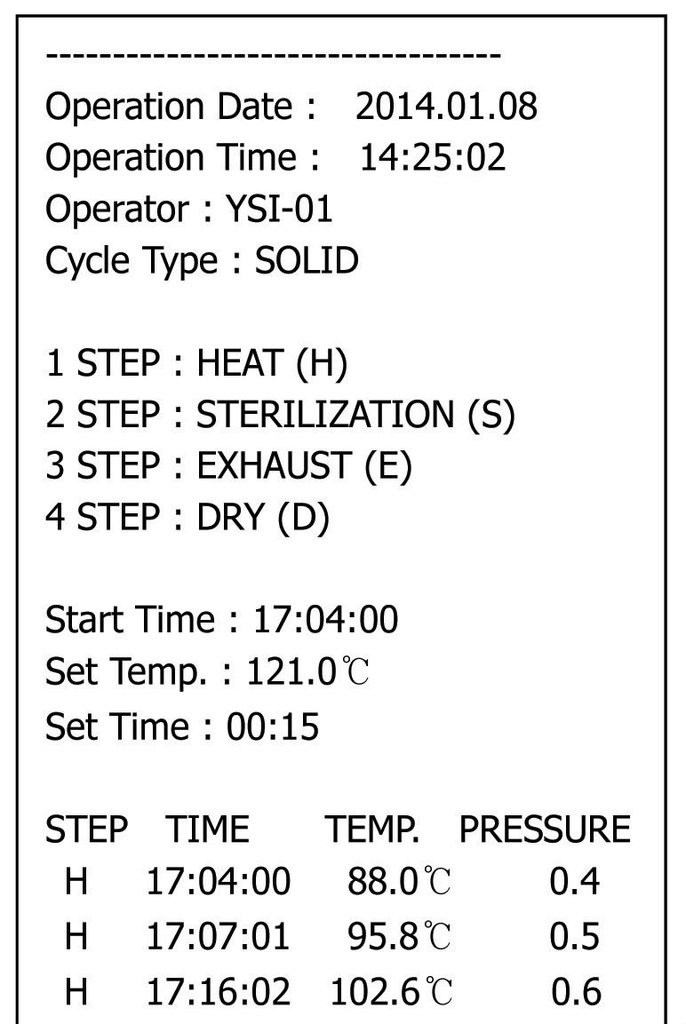

Sterilization cycle data recorder:The WAC-R models come along with a built-in recorder which allows to analyse the process of temperature, pressure, time and error status during the sterilization process.

PED (pressure equipment directive) certification, IQ|OQ only without PED certification available

Version
Lever type sliding door/ safety electronic door closing system, recorder-type: built-in recorder printer, sterilization cycle data (date, temperature, pressure, time, error status, etc.)

Width (Outer)
680 mm

Diameter (inner)
Ø350 mm

Height (outer)
900 mm

Length (outer)
470 mm

Ideal for
Biotechnology, clinical, environmental, medical and food industry

Pressure
1.2 kgf/ cm2 at 121°C / 2.0 kgf/ cm2 at 132°C, gauge: 0 - 3 kgf/ cm2

Weight with packaging
120 kg

Heating power
3000 W

Height (inner)
650 mm

Capacity
60 l

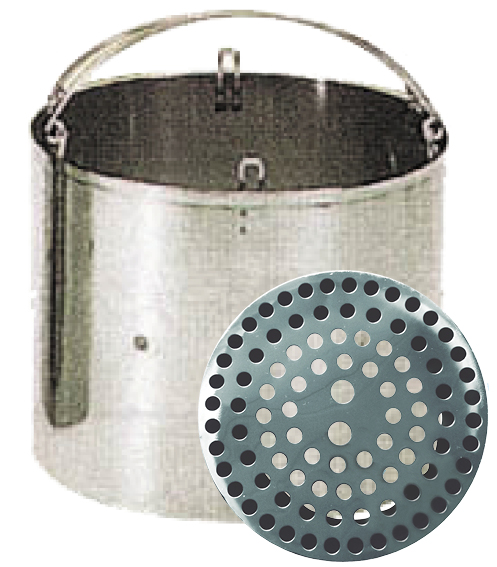

Basket
Ø320 x 240 mm

Temperature range
Room temperature + 5°C - 132°C

Temperature accuracy
±5°C to 121°C

Packing size
840 x 610 x 1252 mm
