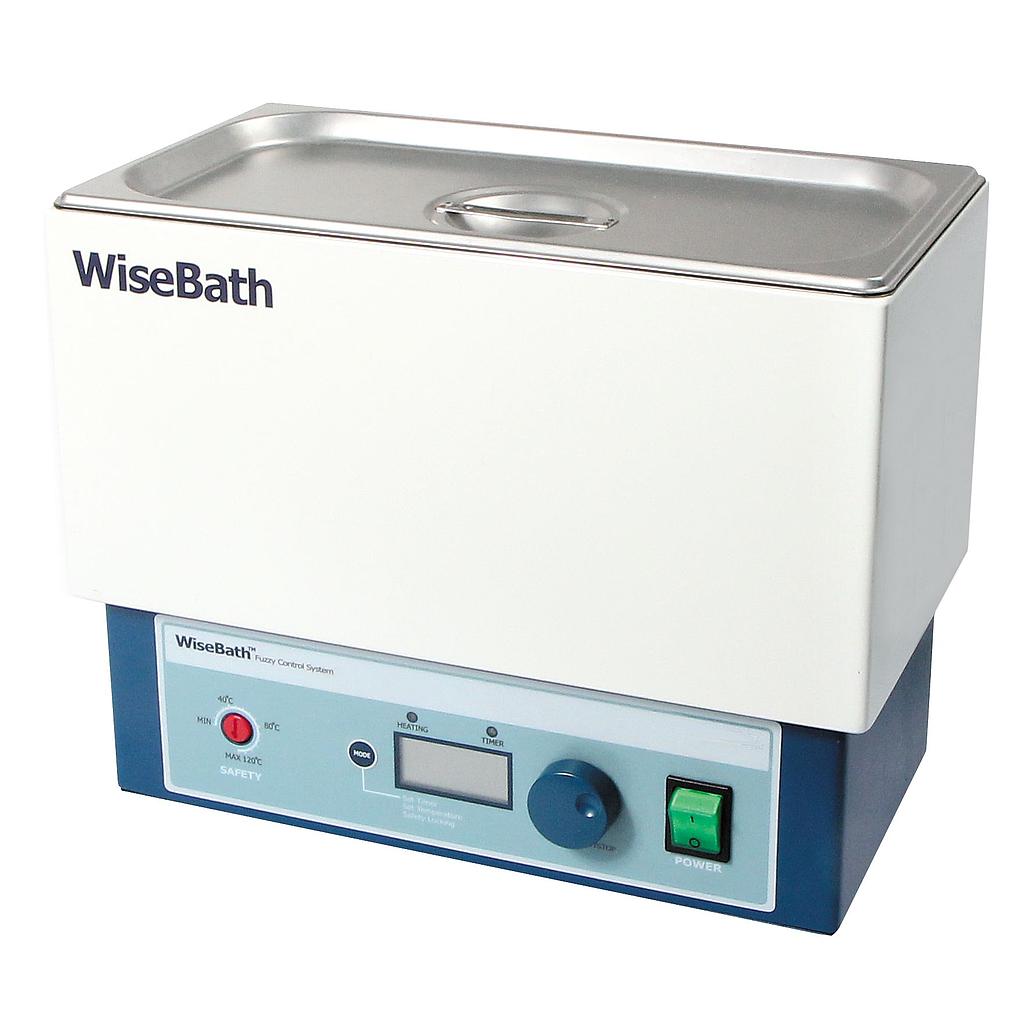

WB-6 Wasserbad 6 Liter 100°C ±0,1°C

DH.WB000106

Stück

Water bath, type WB-6,
digital, capacity: 6 L,
heater: 800 W,
temp. range: ambient +5 - 100°C,
digital fuzzy control system,
Timer: 99 hr. / 59 min.,
bath effective space: 300 x 155 x 110 mm,
external dim.: 325 x 180 x 260 mm,
complete with stainless steel flat lid,
power supply: 230 V, 50/60 HZ

Ideal for:

water bath for general purpose

Features:

user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
stainless steel bath & lid for superior durability & high thermal efficiency / consistency, dome lid optional
digital timer function (99hr 59min): delay time and operation time can be controlled
storage function for the set values of temperature and timer
backlight LCD display
CE-certified and unique serial number for tracing

Safety mechanism:

locking mode
over- temperature and over-current protection
sensor error protection

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
325 mm

Height (outer)
260 mm

Length (outer)
180 mm

Width (inner)
300 mm

Weight with packaging
8 kg

Height (inner)
150 mm

Capacity
6 l

Length (inner)
155 mm

Effective space
300 x 155 x 110 mm

Power consumption
800 W

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±1.0°C

Temperature accuracy
±0.1°C

Packing size
350 x 210 x 310 mm

Sensor
Temperature sensor PT100
