Umwäzthermostat 11 Liter 100°C ±0,1°C

DH.WCB00111

Stück

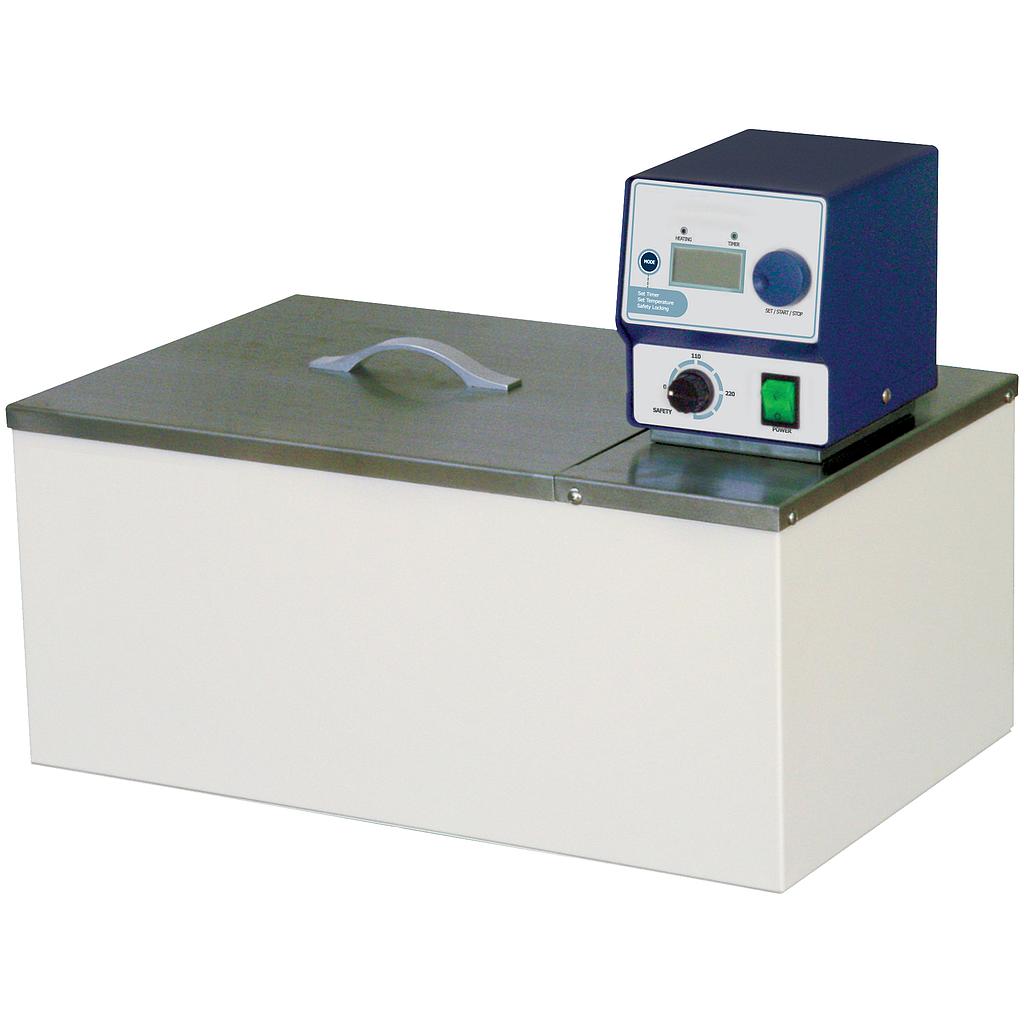

Digital Precise Circulation Water Bath WCB-11,
complete with stainless steel bath,
capacity: 11 L,
temperature range: ambient +5°C - 100°C,
digital fuzzy control system,
Timer: 99 hr. / 59 min.,
Pump: 5 L/min.,
bath effective space: 170 x 240 x 150 mm,
Ext.: 335 x 275 x 385 mm,
incl. stainless steel flat lid,
heater: 1 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

biotechnology, clinical, environmental, medical, petroleum & food industry, pharmaceutical and industrial applications
connection with evaporators and viscometers is applicable

Features:

user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
stainless steel bath & lid for superior durability & high thermal efficiency / consistency
storage function for the set values of temperature and timer
powerful circulation pump assures temperature uniformity: internal and external circulation
storage function for the set values of temperature and timer
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

locking mode
over- temperature and over-current protection
sensor error detection
low water level warning and automatic stop function

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
335 mm

Height (outer)
385 mm

Length (outer)
275 mm

Connections
Circulation nozzle inner Ø7 x outer Ø11mm ( IØ 9 / OØ 12mm silicon tube connection for inner circulation)

Width (inner)
302 mm

Weight with packaging
13 kg

Height (inner)
150 mm

Capacity
11 l

Length (inner)
240 mm

Effective space
170 x 240 x 150 mm

Pump performance
5 l/min

Power consumption
1000 W

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±0.2°C

Temperature accuracy
±0.1°C

Packing size
360 x 300 x 420 mm

Sensor
Temperature sensor PT100

Flow rate
5 l/Min (innen/außen)
