Thermostat WCR-30 Umwälzthermostat 30 Liter, -25°C bis 150°C ±0,1°C

DH.WCR00430

Stück

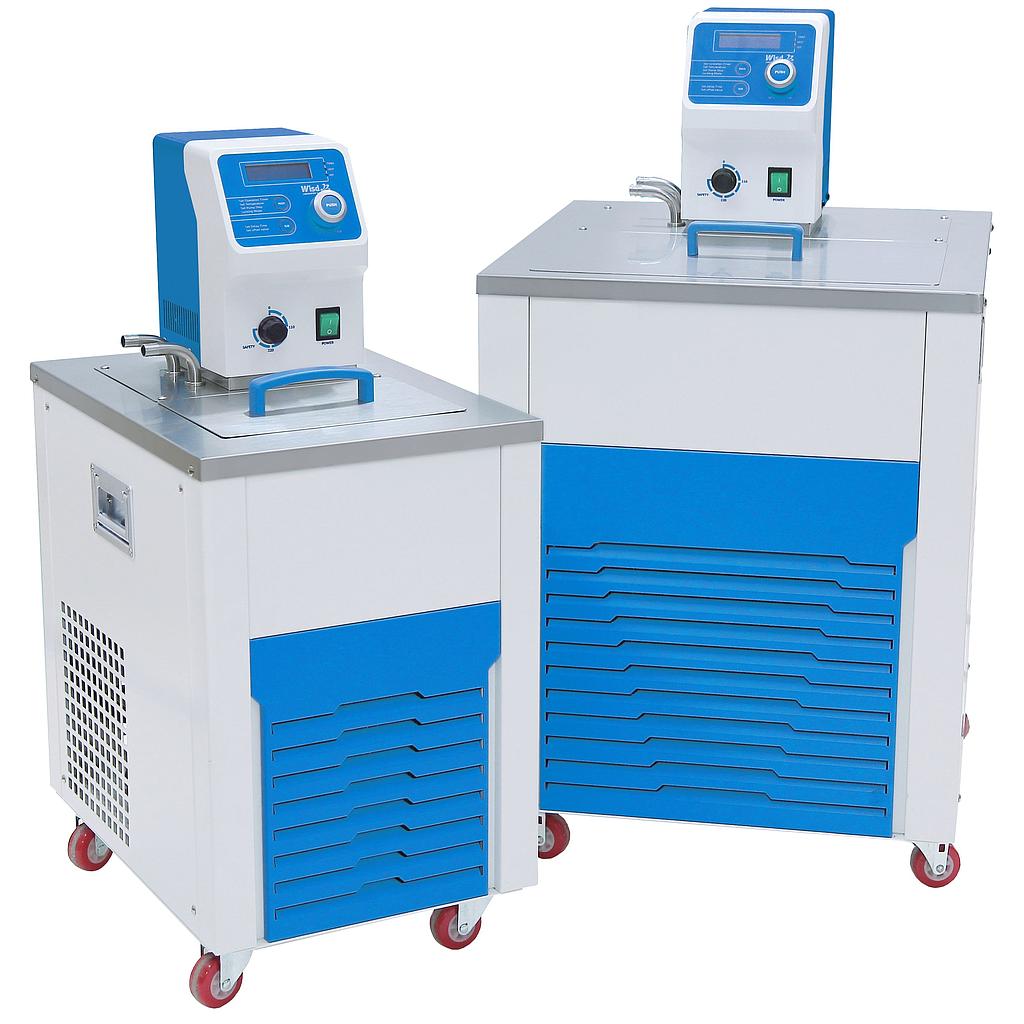

Refrigerated bath circulator WCR-30,
w. digital fuzzy control & digital LCD-back light system,
capacity: 30 Liter,
effective space: 330 x 290 x 200 mm,
temperature range: -25°C + 150°C,
pump: 25 Liter/min.,
timer: 99 hr / 59 min.,
incl. stainless steel flat lid and drain valve,
with wheels,
power: 2,2 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

connection with evaporator

Features:

stainless steel bath, polyurethane insulation of 40 mm thickness and body made of powder-coated steel
innovated refrigeration system ensures temperature performance, includes intelligent control for preventing compressor overload, CFC-free (R-404A)
innovated powerful circulation pump ensures temperature uniformity: internal and external circulation and 5 steps circulation speed

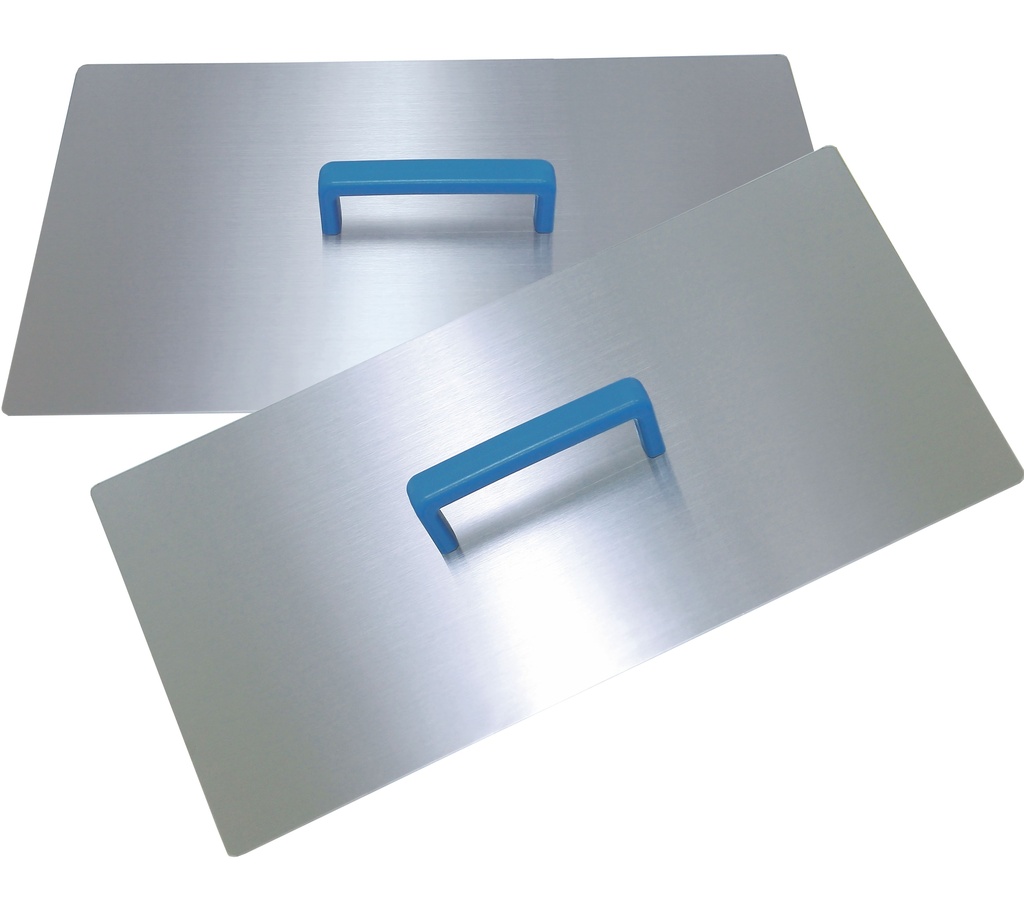

stainless steel flat lid & valve ball included, dome lid optional
RS232C interface: remote monitoring and controlling with PC
proper liquid level tag in bath
user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection and leakage breaker
low liquid level warning and automatic stop function
locking mode

Controller:

digital fuzzy controller with Jog-Dial-switch (turn + push) & capacitive touch button

Width (Outer)
494 mm

Height (outer)
906 mm

Length (outer)
633 mm

Ideal for
Connection with evaporator

Connections

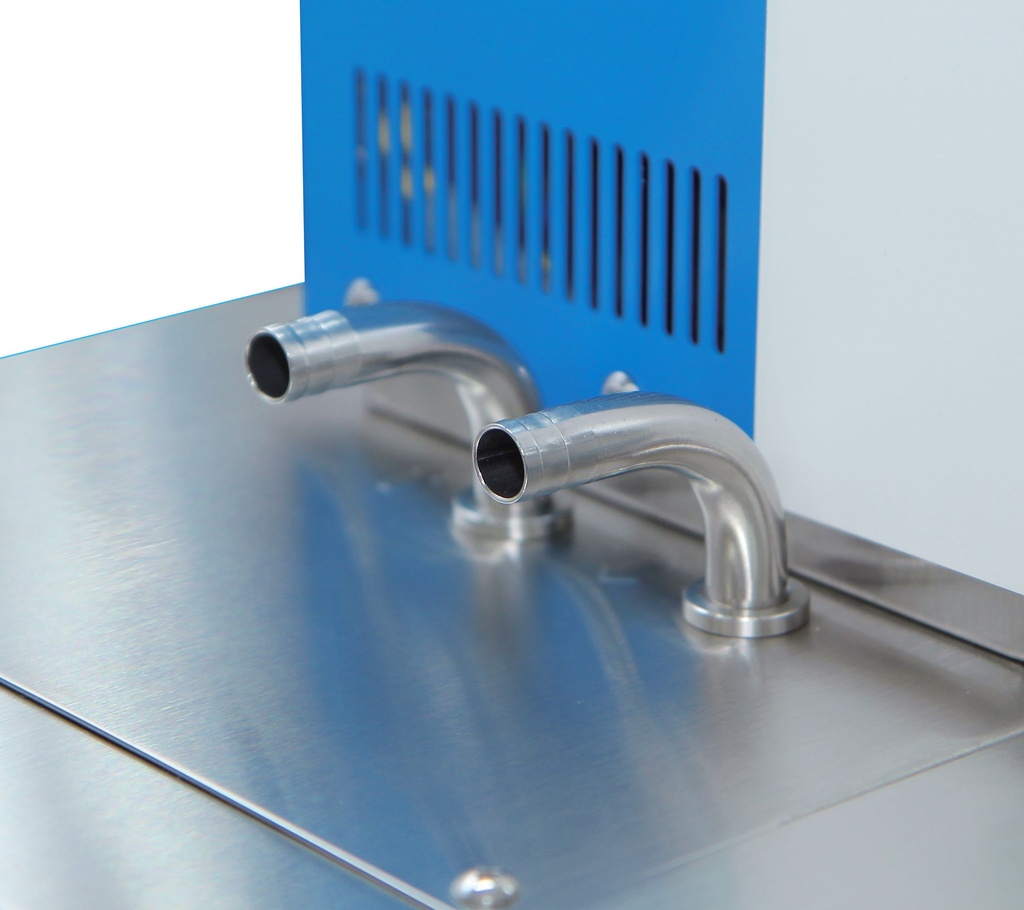

External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles

Width (inner)
330 mm

Pressure
7.5 psi

Weight with packaging
70 kg

Heating power
2200 W

Height (inner)
200 mm

Capacity
30 l

Length (inner)
460 mm

Effective space
330 x 290 x 200 mm

Pump performance
25 l/min., max. lift: 4 m

Temperature variation
±0.2°C to -10°C

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
-25°C - +150°C

Temperature accuracy
±0.1°C

Packing size
740 x 625 x 1072 mm

Refrigerator
560 W

Cooling capacity
850 W at +20°C, 620 W at 0°C, 400 W at -20°C

Sensor
Temperature sensor PT100

Flow rate
25l/Min.
