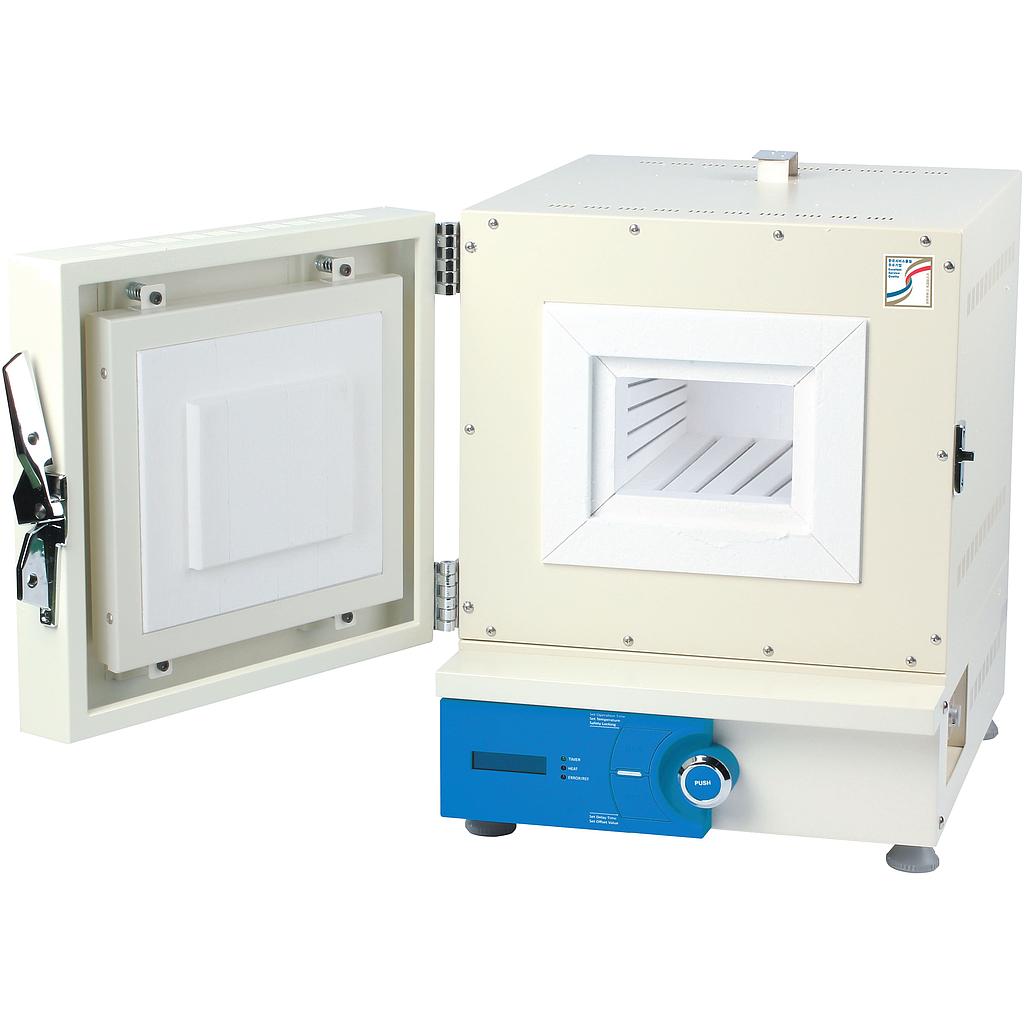

Muffelofen FP-63 63 Liter 1000°C
ArtikelnummerDH.WF23.P63
MengeneinheitStück
Digital Muffle Furnace,
programmable,
1000°C,
63 Liter,
with 4-side heating,
digital PID Control System LCD,
Timer: 99 hr. / 59 min.,
internal dim.: 400 x 400 x 400 mm,
external dim.: 630 x 710 x 790 mm,
Power supply 400 V, 50/60 Hz,
power plug 3phase, 16A CEE
*** open door safety switch included ***
Ideal for:
ash-determinations, enameling, fusions, precipitate drying
Features:
user‘s self-compensation function for temperature (±50.0°C)
resolution: 1°C, 1 min
ceramic fibre plate included
powder-coated steel body, ceramic fibre insulation, ceramic fibre exposed heating wire interior with 4-sided heating
backlight LCD display
CE certified and unique serial number for tracing
Safety mechanism:
safety switch for door opening
overheat and over-current protection
sensor error detection
Controller:
Jog-Dial controller (PID) with 2-way knob (turn + push), digital LCD with backlight, and two durable setting buttons
programmable: 4 patterns with 10 segments
Width (Outer)
1000 mm
Height (outer)
920 mm
Length (outer)
730 mm
Ideal for
Ash-determinations, enameling, fusions, precipitate drying
Heating time
23 min. to 800°C
Width (inner)
400 mm
Weight with packaging
225 kg
Heating power
9000 W
Height (inner)
400 mm
Capacity
63 l
Length (inner)
400 mm
Temperature range
300°C - 1000°C
Thermocouple
K-type thermocouple
Packing size
1160 x 900 x 1100 mm
Accessories
Heater: Kanthal A1, expose wire heating elements, 4-side heating
