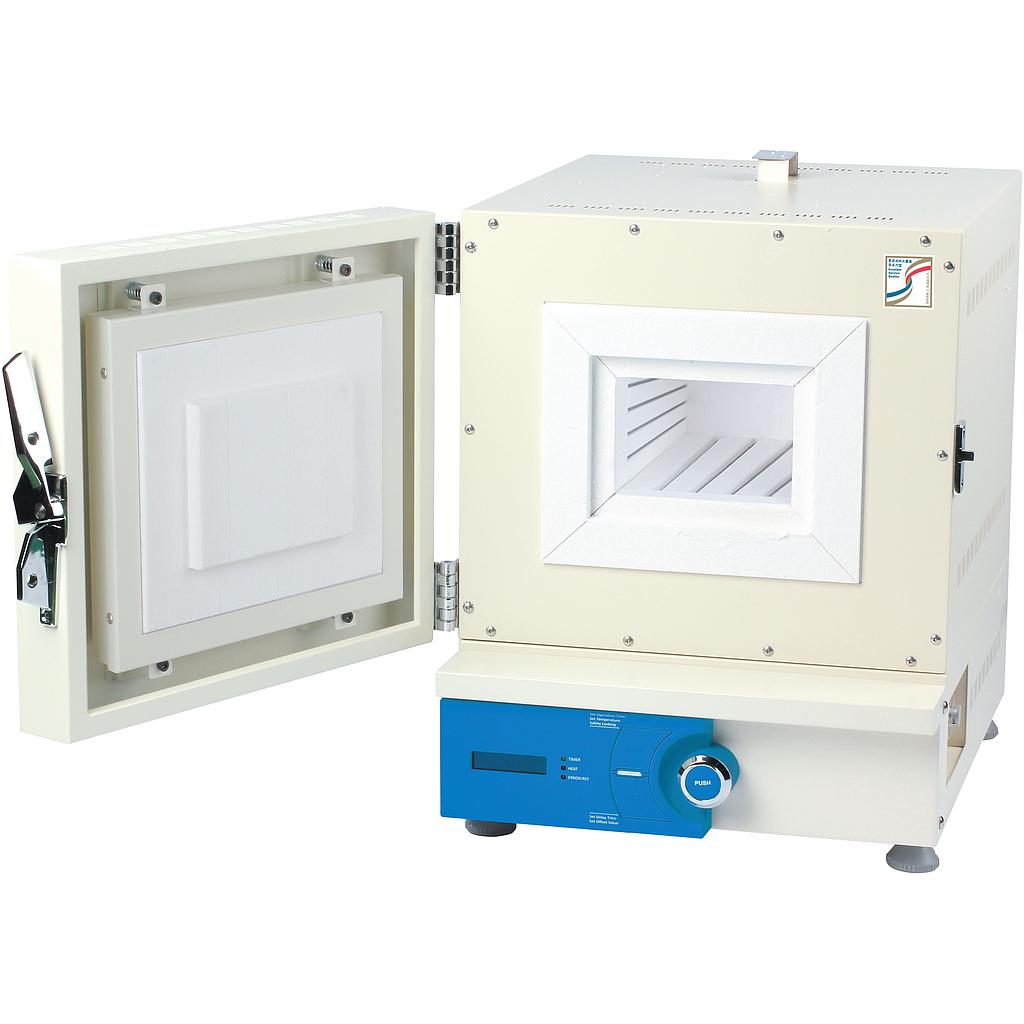

Muffelofen FHP-27 27 Liter 1200°C
ArtikelnummerDH.WFH23.P27
MengeneinheitStück
Muffelofen, Typ FHP-27,
programmierbar,
Temperaturbereich: 1200°C,
4-seitige Beheizung,
programmierbarer PID-Regler,
Volumen: 27 L,
Timer: 99 hr. / 59 min.,
Nutzmaße: 300 x 300 x 300 mm,
Außen: 580 x 590 x 760 mm,
Leistung: 4,6 kW,
Stromanschluss: 400 V, 50/60 Hz,
Steckertyp 3-phasig, 16A CEE
*** inkl. Sicherheitsabschalter ***
Ideal for:
ash-determinations, enameling, fusions, precipitate drying
Features:
user‘s self-compensation function for temperature (±50.0°C)
resolution: 1°C, 1 min

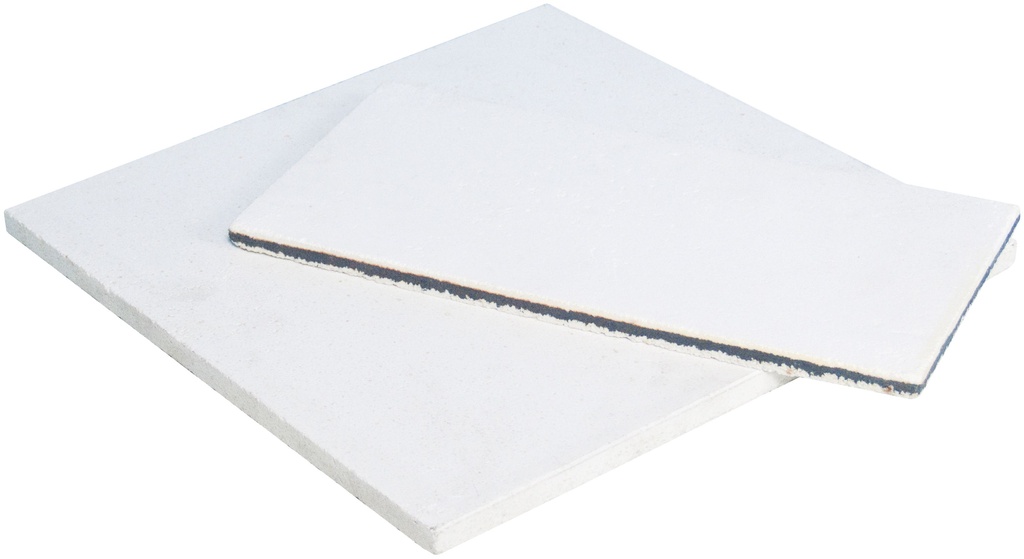

ceramic fibre plate included

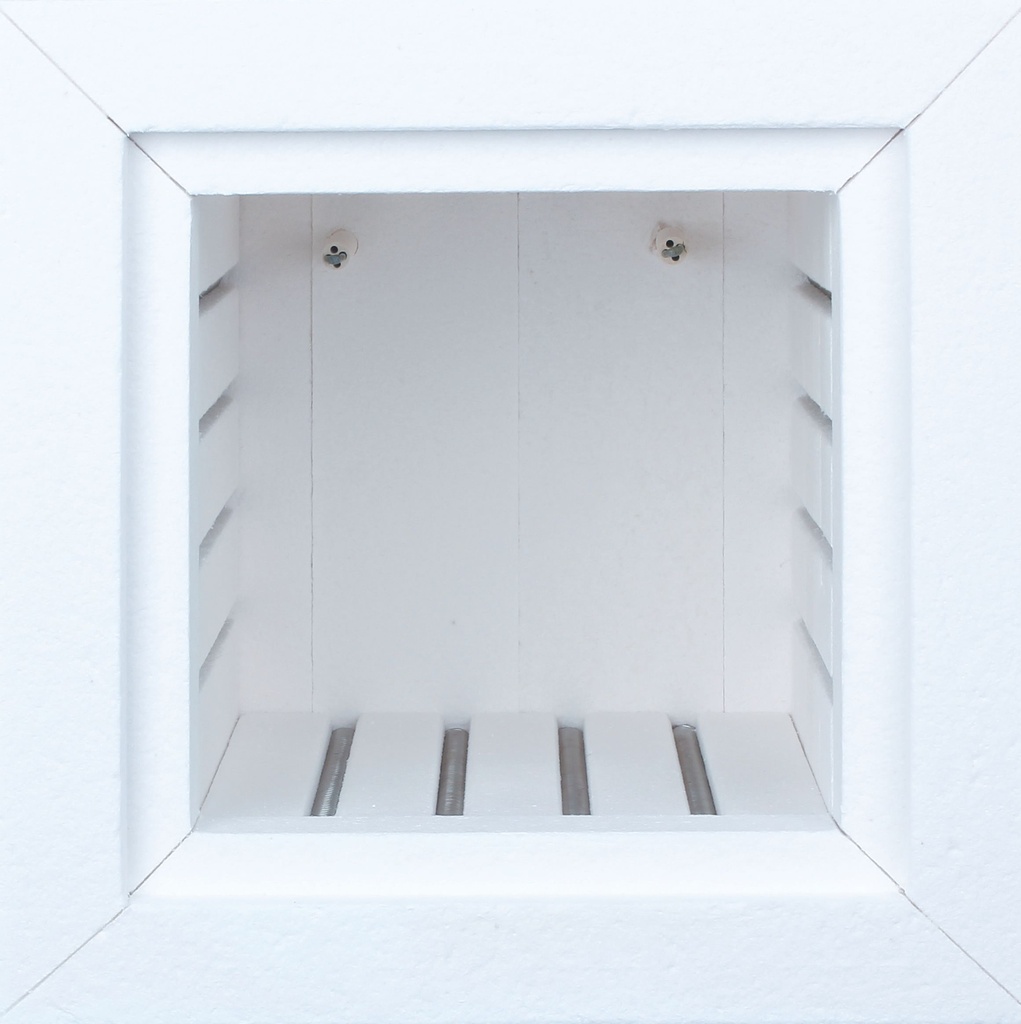

powder-coated steel body, ceramic fibre insulation, ceramic fibre exposed heating wire interior with 4-sided heating
backlight LCD display
CE certified and unique serial number for tracing
Safety mechanism:
safety switch for door opening
overheat and over-current protection
sensor error detection
Controller:
Jog-Dial controller (PID) with 2-way knob (turn + push), digital LCD with backlight, and two durable setting buttons
programmable: 4 patterns with 10 segments
Width (Outer)
600 mm
Height (outer)
760 mm
Length (outer)
590 mm
Ideal for
Ash-determinations, enameling, fusions, precipitate drying
Heating time
20 min. to 800°C
Width (inner)
300 mm
Weight with packaging
83 kg
Heating power
4600 W
Height (inner)
300 mm
Capacity
27 l
Length (inner)
300 mm
Temperature range
300°C - 1200°C
Thermocouple
K-type thermocouple
Packing size
740 x 730 x 990 mm
Accessories
Heater: Kanthal A1, expose wire heating elements, 4-side heating
