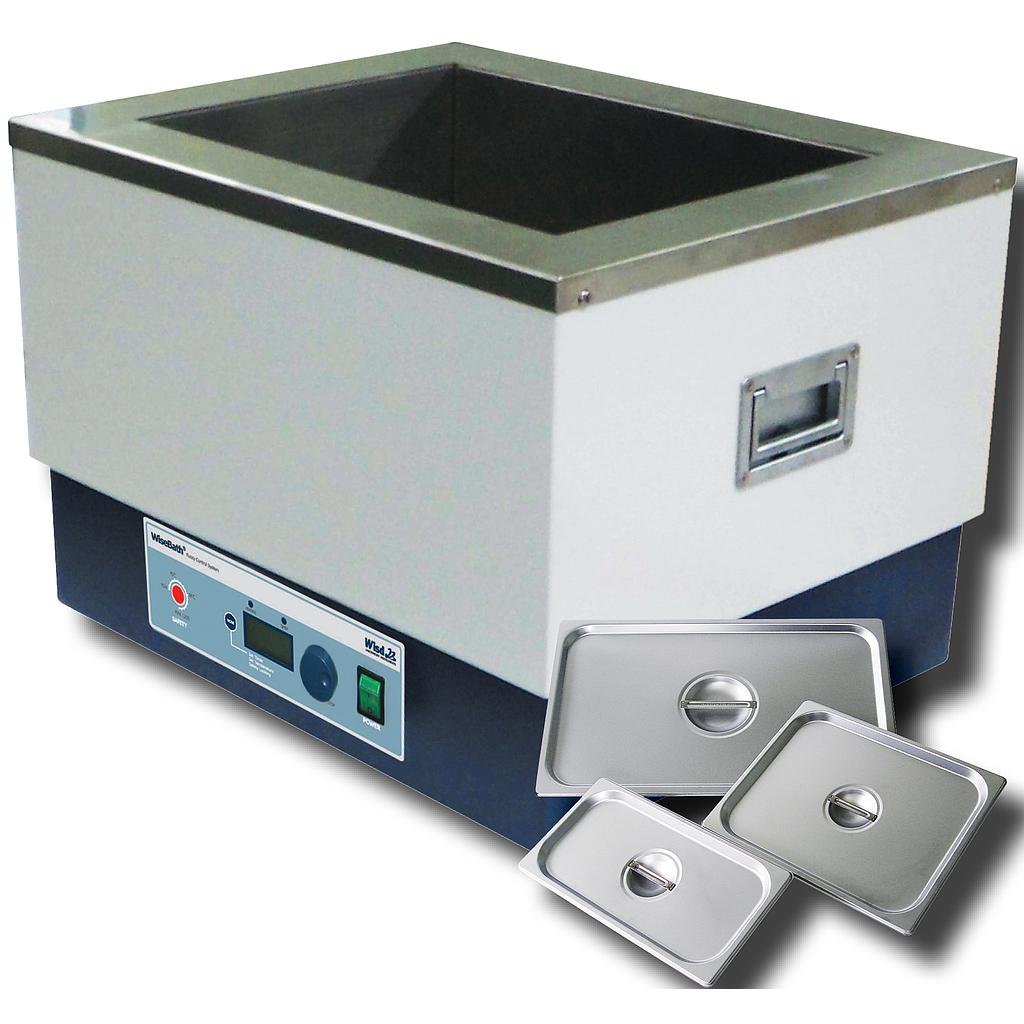

Hochteperatur Ölbad WHB-22 22 Liter 250°C ±0,1°C

DH.WHB00122

Stück

High temperature Oil Bath, Type WHB-22,
Capacity: 22 L,
Heater: 2,0 kW,
Temperature range: ambient +5 - 250°C,
Digital Fuzzy Control System,
Timer: 99 hr. / 59 min.,
Bath effective space: 400 x 300 x 140 mm,
External dimension: 525 x 425 x 370 mm,
complete with stainless steel flat lid,
Power supply: 230 V, 50/60 Hz

Ideal for:

oil bath for general purpose with high temperature

Features:

user‘s self-compensation function to control difference between real temperature and indicated temperature
stainless steel bath & lid for superior durability & high thermal efficiency / consistency
digital timer function (99hr 59min): delay time and operation time can be controlled
storage function for the set values of temperature and timer
backlight LCD display
CE-certified and unique serial number for tracing

Safety mechanism:

locking mode
over- temperature and over-current protection
sensor error protection

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
525 mm

Height (outer)
370 mm

Length (outer)
490 mm

Drain valve
mounted

Width (inner)
400 mm

Weight with packaging
39 kg

Height (inner)
180 mm

Capacity
22 l

Length (inner)
300 mm

Effective space
400 x 300 x 140mm

Power consumption
2500 W

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
Room temperature +5°C - 250°C

Temperature fluctuation
±3.0°C

Temperature accuracy
±0.1°C

Packing size
600 x 490 x 500 mm

Sensor
Temperature sensor PT100
