Homogenisatoren HG15A-SET-A 27000rpm analog integrierte Steuerung

DH.WHG02016

Stück

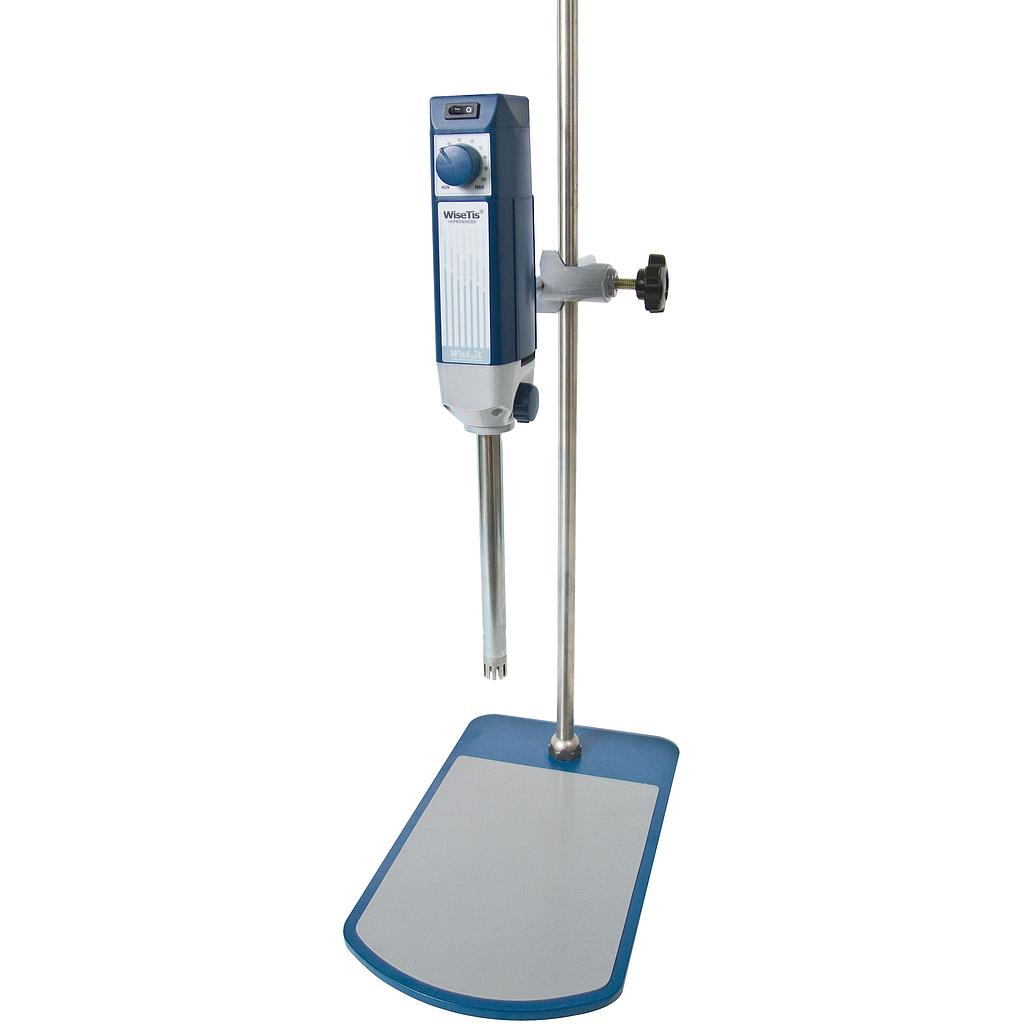

Homogenizer HG-15A-Set-A,
with analog stepless control system,
working range: 1 - 2500 ml,
max. 27000 rpm,
motor rating: 300/160 W,
60 x 75 x 215 mm,
power supply: 230 V, 50/60 Hz

additional supplied with:
Dispersing tool HT1018, rotor Ø 12,7 mm
stator Ø 18 mm, working range: 10 - 1000 ml
Clamp CL200, for rods up to 23 mm
Standard plate stand ST110, plate 200 x 350 mm,
rod 800 x 16 mm

Ideal for:

all disperging and homogenizing applications
designed for liquid and tissue samples

Features:

up to 27,000 rpm
working range 1 - 2,500 ml
CE certified and unique serial number for tracing

Safety mechanism:

overheat protection

Controller:

analog stepless controller with touch-button

Version
Set A

Width (Outer)
60 mm

Diameter (outer)
Extension arm size: Ø12.7

Height (outer)
215 mm

Length (outer)
75 mm

Material
ABS & aluminium die-casting

Ideal for
all disperging and homogenizing applications, designed for liquid and tissue samples

Controller
Analog, integrated

Moisture range
85% RH

Speed
up to 27000 rpm, stepless

Weight
2.5 kg

Weight with packaging
5 kg

Capacity
1 - 2500 ml

Length (inner)
Extension arm: 250 mm

Motor rating
Input: 300 W, output: 160 W

Temperature range
Ambient temperature +5 - 50°C

Packing size
320 x 300 x h190 mm
