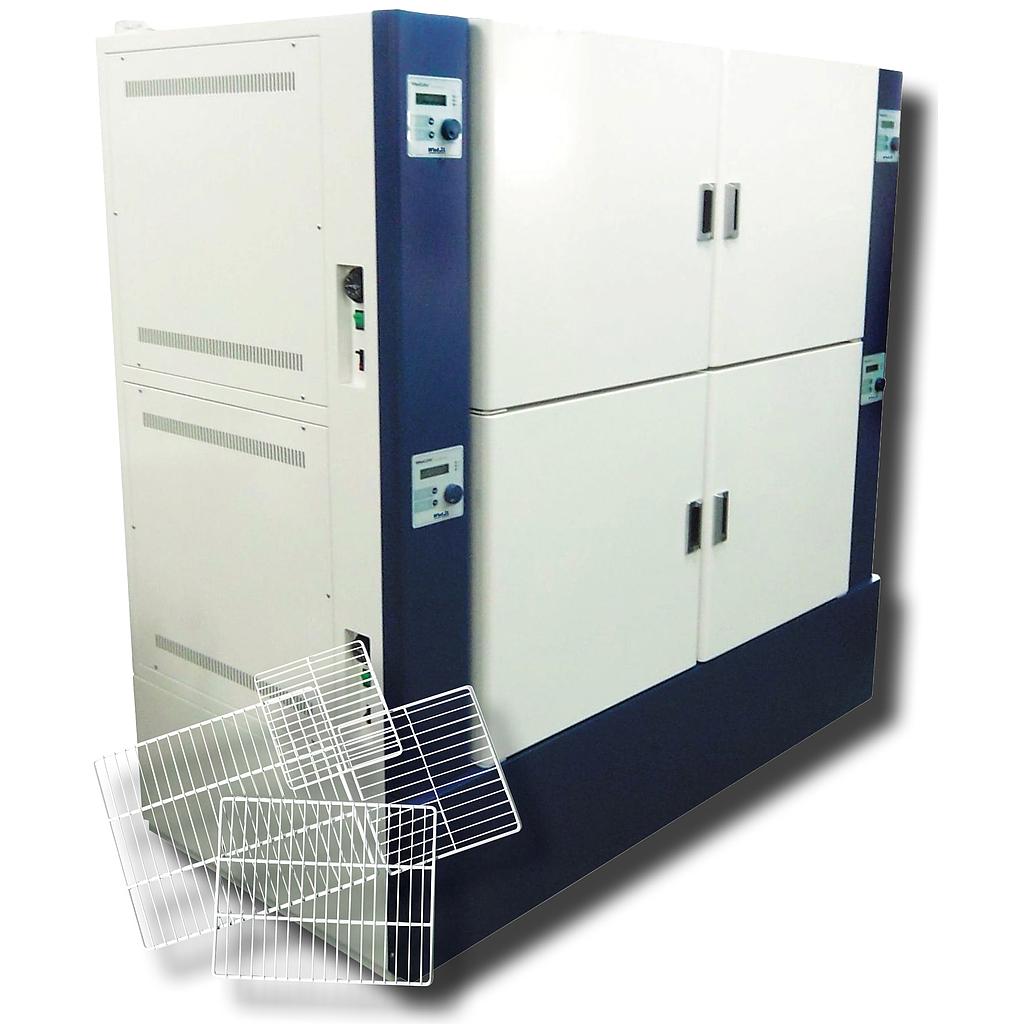

Inkubator WIM-4 Industriell 4 Kammern je 125 Liter
ArtikelnummerDH.WIM04125
MengeneinheitStück
Multi-Room Incubator, type WIM-4,
4 rooms à 125 L,
each room 500 x 500 x 500 mm,
with digital fuzzy control,
Timer: 99 hr. / 59 min.,
temp. range: ambient +5°C - 70°C,
forced convection,
none refrigerator,
none illumination,
external dimension: 1655 x 845 x 1710 mm,
incl. 4x 2 PTFE- coated shelves,
max. load per shelf: 16 kg,
heater: 4x 500 W,
power supply: 230 V, 50/60 Hz
Ideal for:
microorganism culture, animal and plant cell culture, constant temperature, germination, etc.
Features:
forced-air flow by silent fan motor implements the highest uniformity of temperature in each chamber
4x125 liter chambers
each chamber has an independent fuzzy controller for different temperature and time control
8x PE-coated steel wire shelves included
corrosion resistant stainless steel chamber, powder-coated body
tempered glass door to observe samples during incubation
storage function for the set values of temperature and timer
backlight LCD display
CE & UL/CUL certified and unique serial number for tracing
Safety mechanism:
locking mode
overheat and over-current protection
sensor error detection
Controller:
digital fuzzy controller with Jog-Shuttle-switch (turn + push)
Features
Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.
Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.
Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.
Version
4 individual chambers, forced-air convection
Width (Outer)
1655 mm
Height (outer)
1710 mm
Length (outer)
845 mm
Heating time
15 min. to 37°C, 30 min. to 50°C
Shelves
8 PE-coated steel wire shelves included
Weight
343 kg
Weight with packaging
441 kg
Heating power
4 x 500 W
Capacity
4 chambers x 125 l
Effective space
500 x 500 x 500 mm (each room)
Power consumption
2600 W
Temperature variation
±0.3°C at 37°C, ±0.7°C at 50°C
Temperature range
Room temperature +5°C - 70°C
Temperature accuracy
±0.2°C to 37°C
Recovery time
8 min. to 37°C, 10 min. to 50°C
Sensor
Temperature sensor PT100
