Überkopfrührer HS-100D 20L HighSpeed 200-3000rpm 50'000 mPas digital integrierte Steuerung - Set

DH.WOS01026

Stück

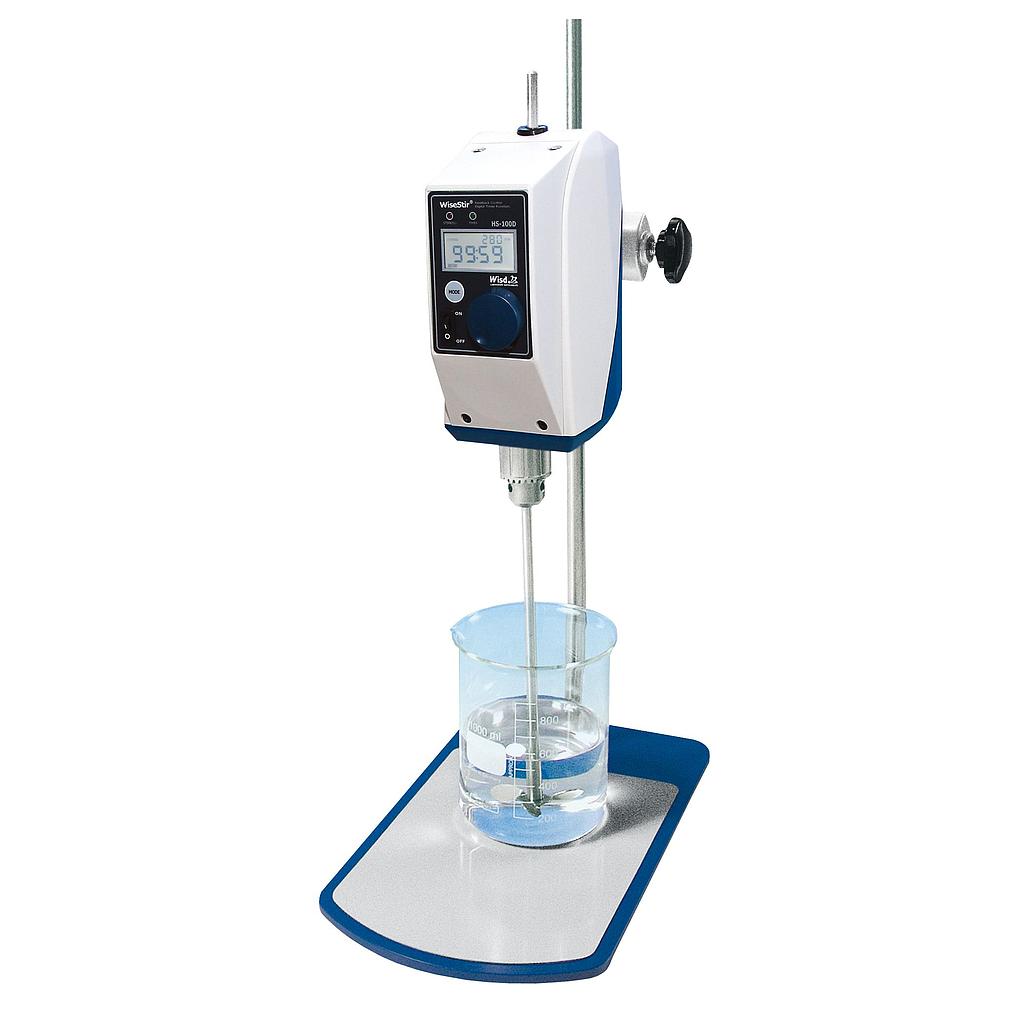

Digital Overhead Stirrer, type HS-100D-Set,
stirring capacity: 20 L,
max. 50.000 mPas,
with digital Controller,
speed range: 200-3000 rpm,
motor rating 83/75 W,
dim.: 90 x 145 x 180 mm,
weight: 8,0 kg,
power supply: 230 V, 50/60 Hz

addtional supplied with:
Impeller PL015, 4 blades, stainless steel, blade Ø 70 mm,
rod length: 500 mm, Ø 8 mm

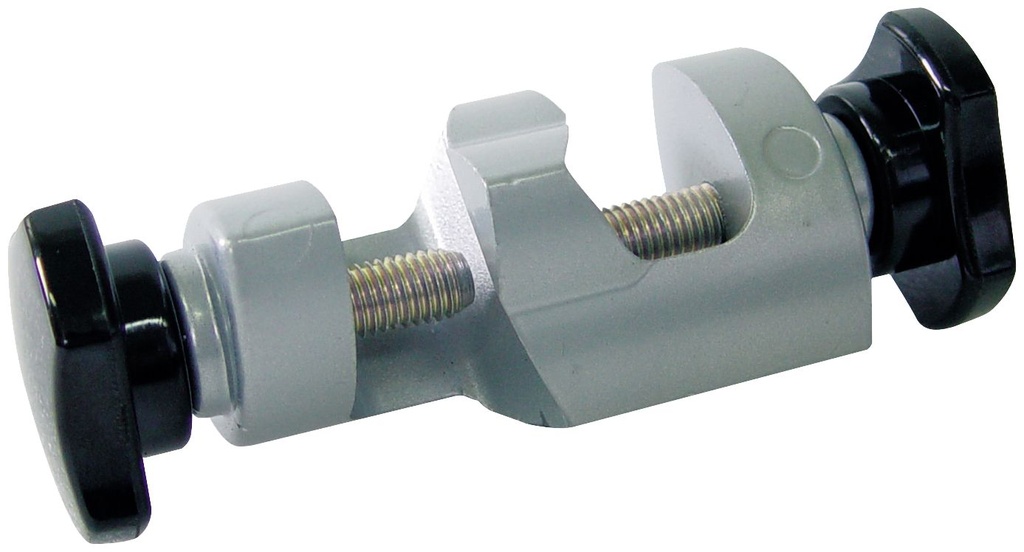

Clamp CL200, capacity up to Ø 25 mm
Standard plate stand ST120,
plate: 300 x 400 mm, rod: Ø 23 mm, height 1000 mm

Ideal for:

all mixing applications in the laboratory
specialized for low- to medium-viscosity materials

Features:

maximal 10 / 20 liter
200 - 3,000 rpm
maximal viscosity 10,000 / 50,000 mPas
direct driven motor
digital LCD display
6 light sources
smooth start and change of stirring speed while operation
storage function for timer and speed
impeller height adjustable
chrome-plated stainless steel chuck
CE certified and unique serial number for tracing

Safety mechanism:

timer 99h 59min with timer-end signal
error status
locking mode
overload protection
overheat protection
operation LEDs

Controller:

Jog-Shuttle controller with touch-button

Features

powerful DC motor for various stirring applications (direct-driven or worm-geared)
the direct driven motor ensures high-speed at all recommended viscosities
digital feedback controller
steady and constant stirring speed

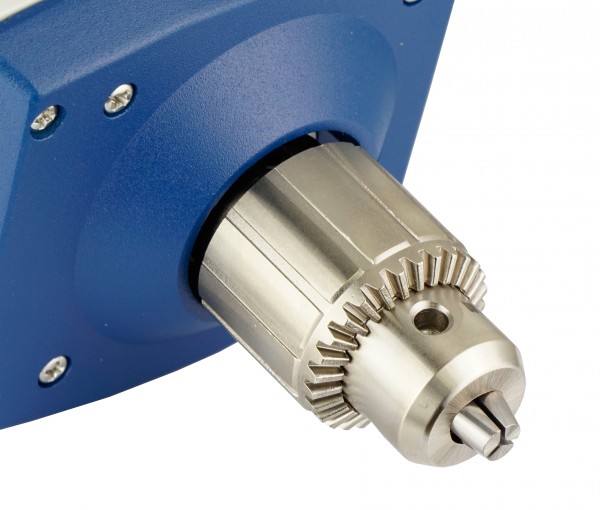

chrome-plated stainless steel chuck to prevent corrosion

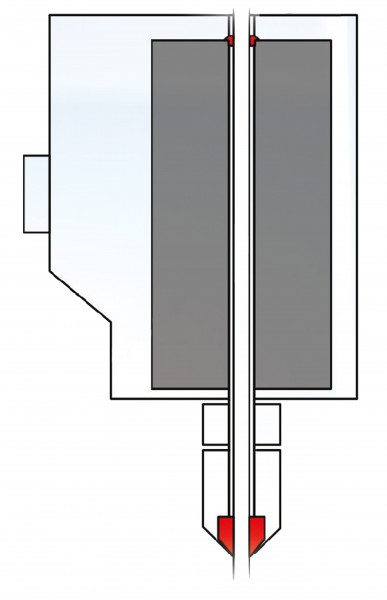

anti-trembling system - the impeller is fixed at two points within the body and chuck
adjustable impeller position (height)
motor overload and overheat protection for highest safety and long lifetime
available as set with impeller, plate stand and clamp
many different impellers and plate stands available

Version
High-speed

Width (Outer)
90 mm

Height (outer)
180 mm

Length (outer)
145 mm

Material
ABS & Aluminium

Ideal for
All mixing applications in the laboratory, specialized for low- to medium-viscosity materials

Controller
Digital, integrated

Torque
145 N cm at chuck

Moisture range
80% RH

Speed
200 - 3000 rpm

Weight
5.3 kg

Weight with packaging
8 kg

Capacity
max. 20 l

Stirrer diameter
Shafts Ø8 mm

Temperature range
Ambient temperature +0°C - 40°C

Packing size
320 x 300 x h180 mm

Viscosity (mPas)
max. 50000 mPas
