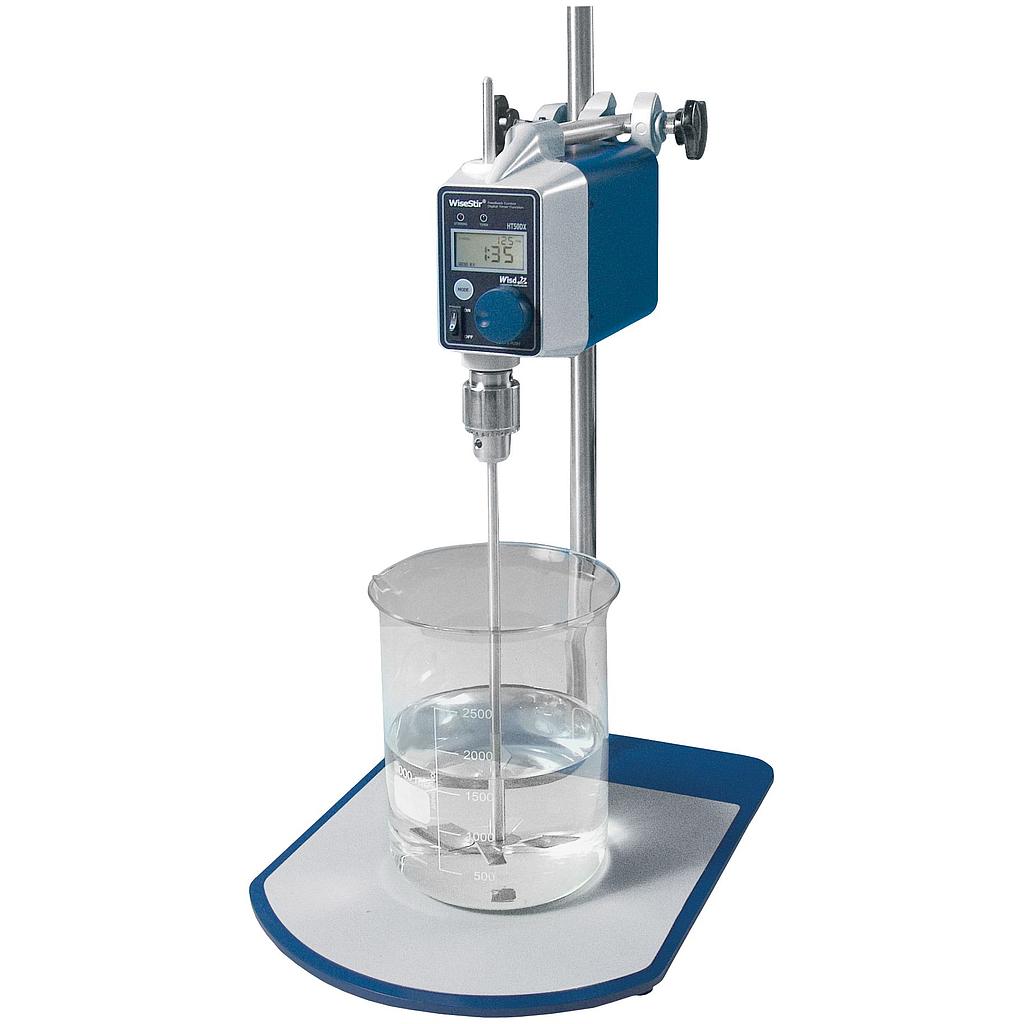

Überkopfrührer HT-50DX 40L HighTorque 50-1000rpm 100'000mPas digital integrierte Steuerung - Set

DH.WOS01052

Stück

Overhead stirrer, type HT-50DX-Set,
digital, s
tirring cap.: max. 40 L,
motor rating 83/75 W,
speed range: 50-1000 rpm,
100.000 mPas,
dimension: 90 x 180 x 130 mm,
weight: 3,5 kg,
power supply: 230 V, 50/60 Hz

Additional supplied with:
Impeller PL020, 4 blades, stainless steel, blade Ø 90 mm,
rod length: 500 mm, Ø 8 mm, Clamp CL200,
capacity up to Ø 25 mm, Plate stand ST120,
400 x 300 mm, rod: 1000 x 23 mm

Ideal for:

all mixing applications in the laboratory
specialized for light watery solutions up to high-viscosity fluids

Features:

maximal 40 / 60 liter
50 - 1,000 rpm
maximal viscosity 100,000 / 150,000 mPas
worm-geared motor (ratio 3.5:1)
digital LCD display
smooth start and change of stirring speed while operation
storage function for timer and speed
impeller height adjustable
chrome-plated stainless steel chuck
CE certified and unique serial number for tracing

Safety mechanism:

timer 99h 59min with timer-end signal
error status
locking mode
overload protection
overheat protection
operation LEDs

Controller:

Jog-Shuttle controller with touch-button

Features

powerful DC motor for various stirring applications (direct-driven or worm-geared)
The worm-geared motor ensures high-torque at all recommended viscosities
digital feedback controller
steady and constant stirring speed
chrome-plated stainless steel chuck to prevent corrosion
anti-trembling system - the impeller is fixed at two points within the body and chuck
adjustable impeller position (height)
motor overload and overheat protection for highest safety and long lifetime
available as set with impeller, plate stand and clamp
many different impellers and plate stands available
the impeller is fixed at two points within the body to ensure smooth operation without trembling

Version
High-torque

Width (Outer)
90 mm

Height (outer)
130 mm

Length (outer)
180 mm

Material
ABS & Aluminium

Ideal for
All mixing applications in the laboratory, specialized for light watery solutions up to high-viscosity fluids

Controller
Digital, integrated

Torque
300 N cm at chuck

Moisture range
80% RH

Speed
50 - 1000 rpm

Weight
3.5 kg

Weight with packaging
5 kg

Capacity
max. 40 l

Stirrer diameter
Shafts Ø10 mm

Temperature range
Ambient temperature +0°C - 40°C

Packing size
320 x 300 x h180 mm

Viscosity (mPas)
max. 100000 mPas
