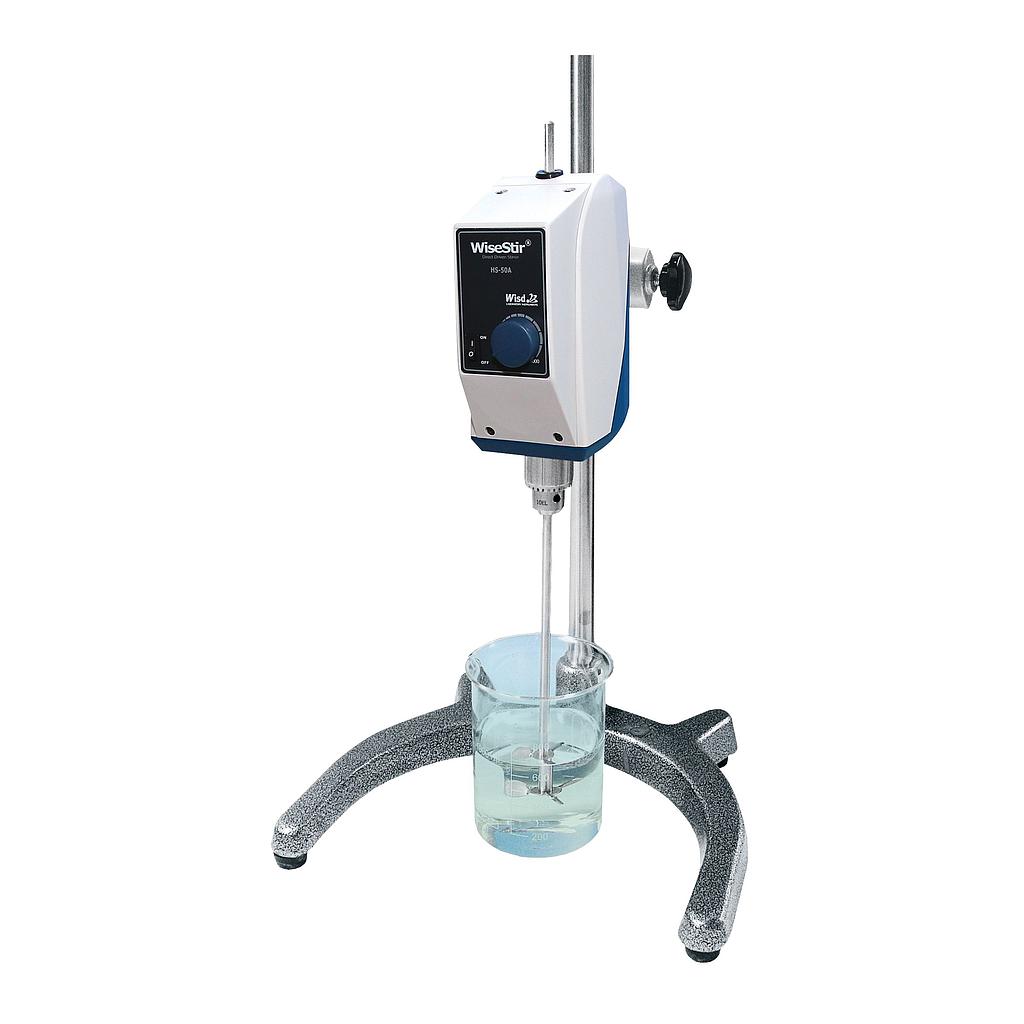

Überkopfrührer HS-50A 10L HighSpeed 200-3000rpm 10'000 mPas analog integrierte Steuerung - Set

DH.WOS01211

Stück

Overhead stirrer, type HS-50A Set,
analog,
stirring cap.: max. 10 L,
motor rating 83/75 W,
speed range: 200-3000 rpm,
10.000 mPas,
dimension: 90 x 145 x 180 mm,
weight: 10 kg,
power supply: 230 V, 50/60 Hz

Additional supplied with:
Impeller PL010, 3 blades, stainless steel, blade Ø 50 mm,
rod length: 500 mm, Ø 8 mm, Clamp CL200, capacity up to Ø 25 mm
Safety stand KA1177, U-shape, rod: 23 x 800 mm,
stand base: 340 x 290 mm

Ideal for:

all mixing applications in the laboratory
specialized for low- to medium-viscosity materials

Features:

maximal 10 / 20 liter
up to 3,000 rpm
maximal viscosity 10,000 / 50,000 mPas
direct driven motor
smooth start and change of stirring speed while operation
impeller height adjustable
chrome-plated stainless steel chuck
CE certified and unique serial number for tracing

Safety mechanism:

overheat protection
operation LEDs

Controller:

Analog phase controller with control knob

Features

powerful DC motor for various stirring applications (direct-driven or worm-geared)
the direct driven motor ensures high-speed at all recommended viscosities
digital feedback controller
steady and constant stirring speed
chrome-plated stainless steel chuck to prevent corrosion
anti-trembling system - the impeller is fixed at two points within the body and chuck
adjustable impeller position (height)
steady and constant stirring speed
chrome-plated stainless steel chuck to prevent corrosion
anti-trembling system - the impeller is fixed at two points within the body and chuck
adjustable impeller position (height)
the impeller is fixed at two points within the body to ensure smooth operation without trembling

Version
High-speed

Width (Outer)
90 mm

Height (outer)
180 mm

Length (outer)
145 mm

Material
ABS & Aluminium

Ideal for
All mixing applications in the laboratory, specialized for low- to medium-viscosity materials

Controller
Analog, integrated

Torque
85 N cm at chuck

Moisture range
80% RH

Speed
up to 3000 rpm

Weight
4.5 kg

Weight with packaging
5 kg

Capacity
max. 10 l

Stirrer diameter
Shafts Ø8 mm

Temperature range
Ambient temperature +0°C - 40°C

Packing size
320 x 300 x h180 mm

Viscosity (mPas)
max. 10000 mPas
