WSB-18 Schüttelwasserbad 18 Liter 100°C ±0,1°C

DH.WSB03018

Stück

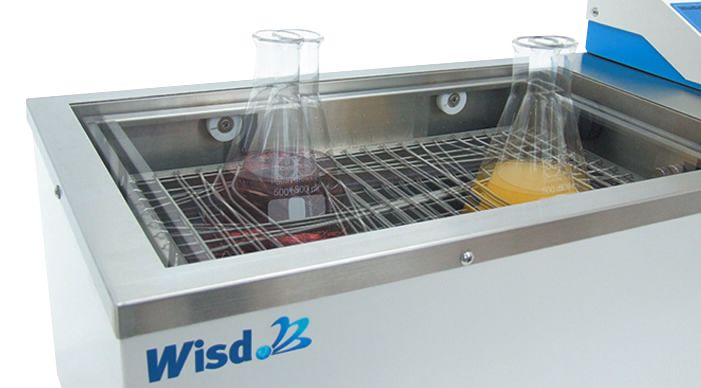

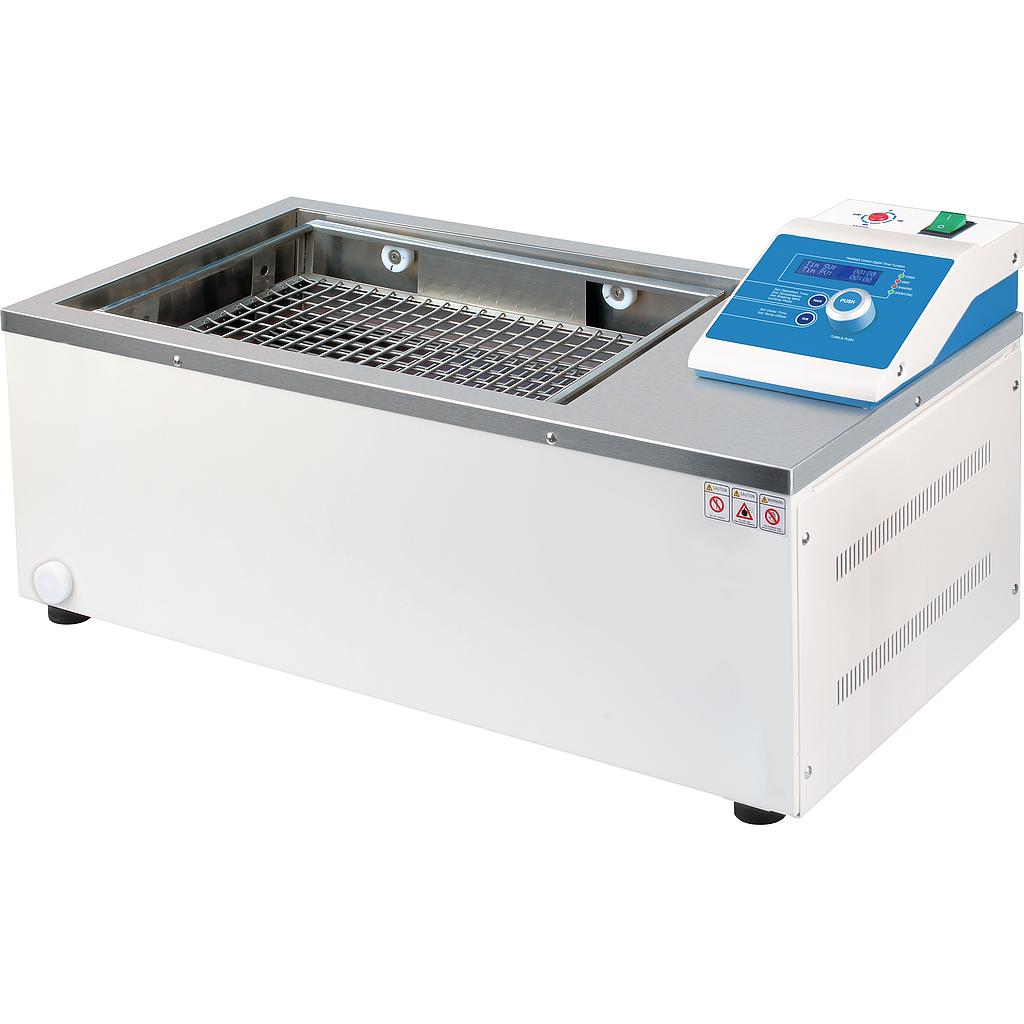

Shaking Water Bath, type WSB-18,
capacity 18 Liter,
reciprocating motion,
with digital fuzzy control,
temperature range: ambient +5°C to 100°C,
shaking speed: 20 to 250 stroke/min.,
timer: 99 hr. / 59 min.,
delay & continuous function incl.,
bath dimension: 300 x 300 x 200 mm,
external: 563 x 353 x 340 mm,
incl. stainless steel spring rack,
230 V, 50/60 Hz

Suitable for:

direct immersion of samples or shaking on site in the field of biotechnology and for laboratories, hybridisation, cell cultures, cell revitalisation, increasing solubility rates, molecular biological samples and bacterial cultures


Technical characteristics:

Stainless steel interior and bath, powder-coated steel housing, 1.2t, double painted and baked, 20 mm polyurethane insulation

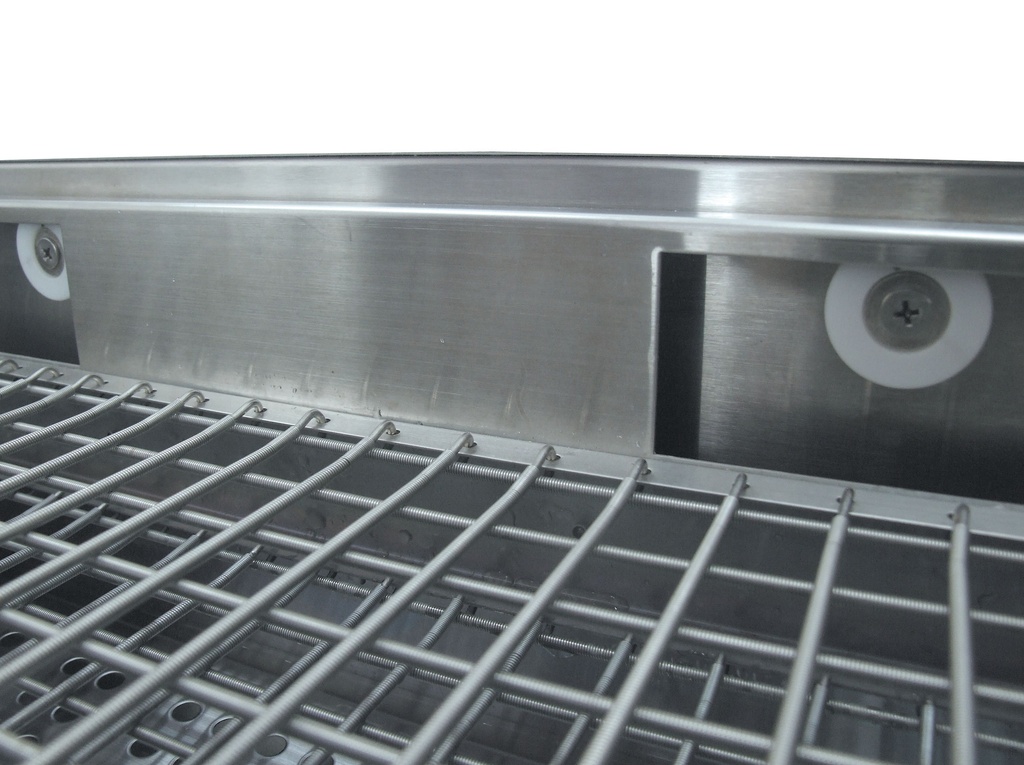

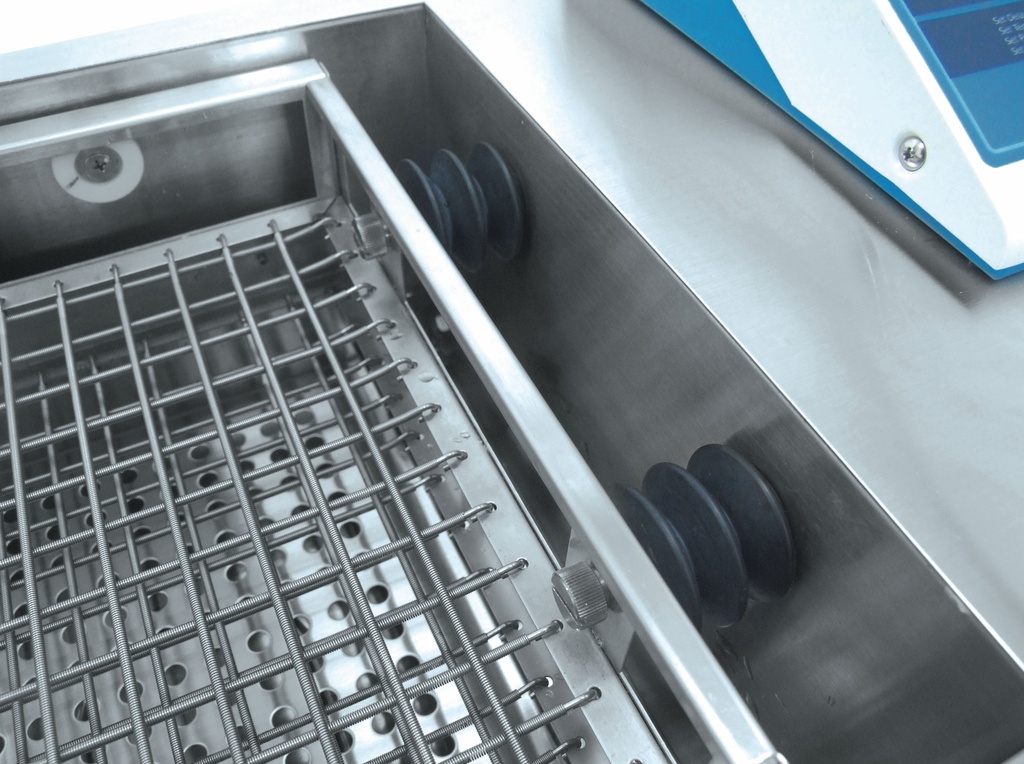

High performance shaking motor for best, smooth shaking movement, minimum noise level and vibration including universal spring frame made of stainless steel: for various types of flasks and tubes (up to 2l), easy to disassemble
Adjustment function for adjusting the displayed temperature to the actual temperature (±10.0 °C)

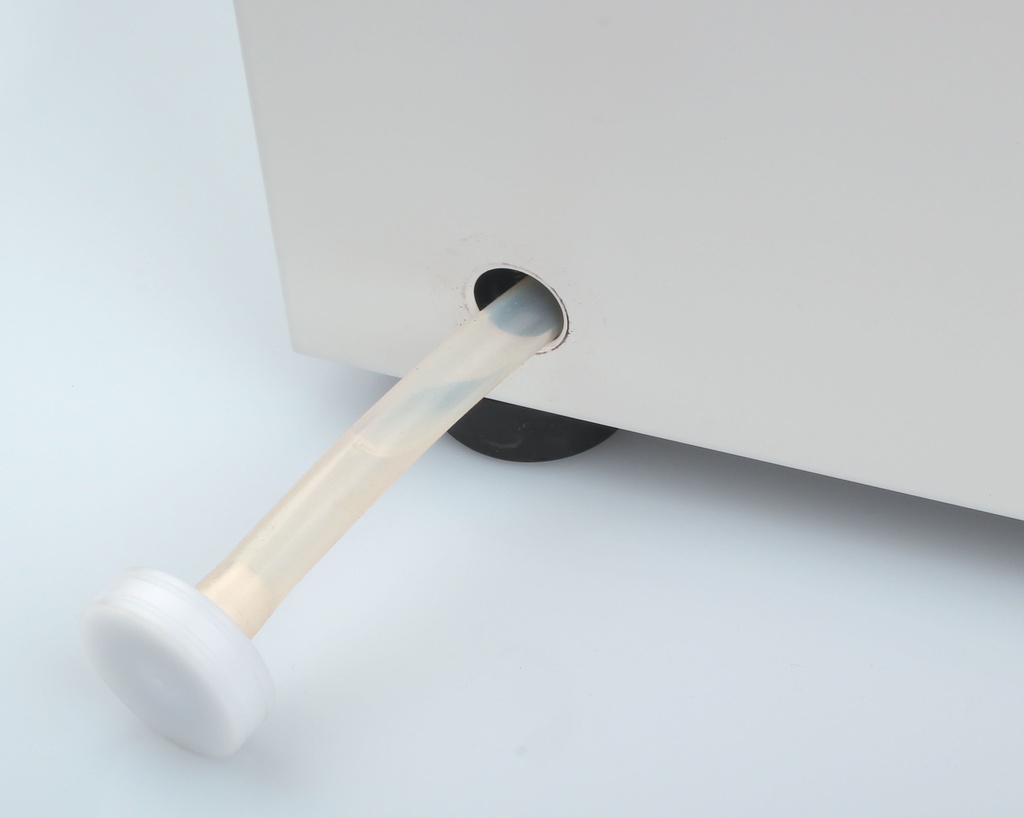

Drain valve mounted
a leakage of water is prevented by the completely sealed bath
LCD display with backlight
CE certificate and traceability through serial numbers


Safety device:

Overheating and overcurrent protection
Sensor error detection


Control:

Jog dial control (turn + press)
digital feedback control for precise speed control
digital fuzzy control for precise temperature control


Design
Max. Number of flasks: 6 x 250 ml, 4 x 500 ml, 1 x 1000 ml

Width (outside)
563 mm

Height (outside)
340 mm

Length (outside)
353 mm

Width (inside)
300 mm

Weight with packing
24 kg

Height (inside)
200 mm

Capacity
18 l

Length (inside)
300 mm

Shaking speed
20 - 250 rpm, display 1 rpm, controller 1 rpm

Shaking stroke
20 mm (other strokes on request)

Power consumption
1400 W

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±0.5°C at -20°C

Temperature accuracy
±0,1°C

Package size
620 x 420 x 450 mm

Sensor
Temperature sensor PT100
