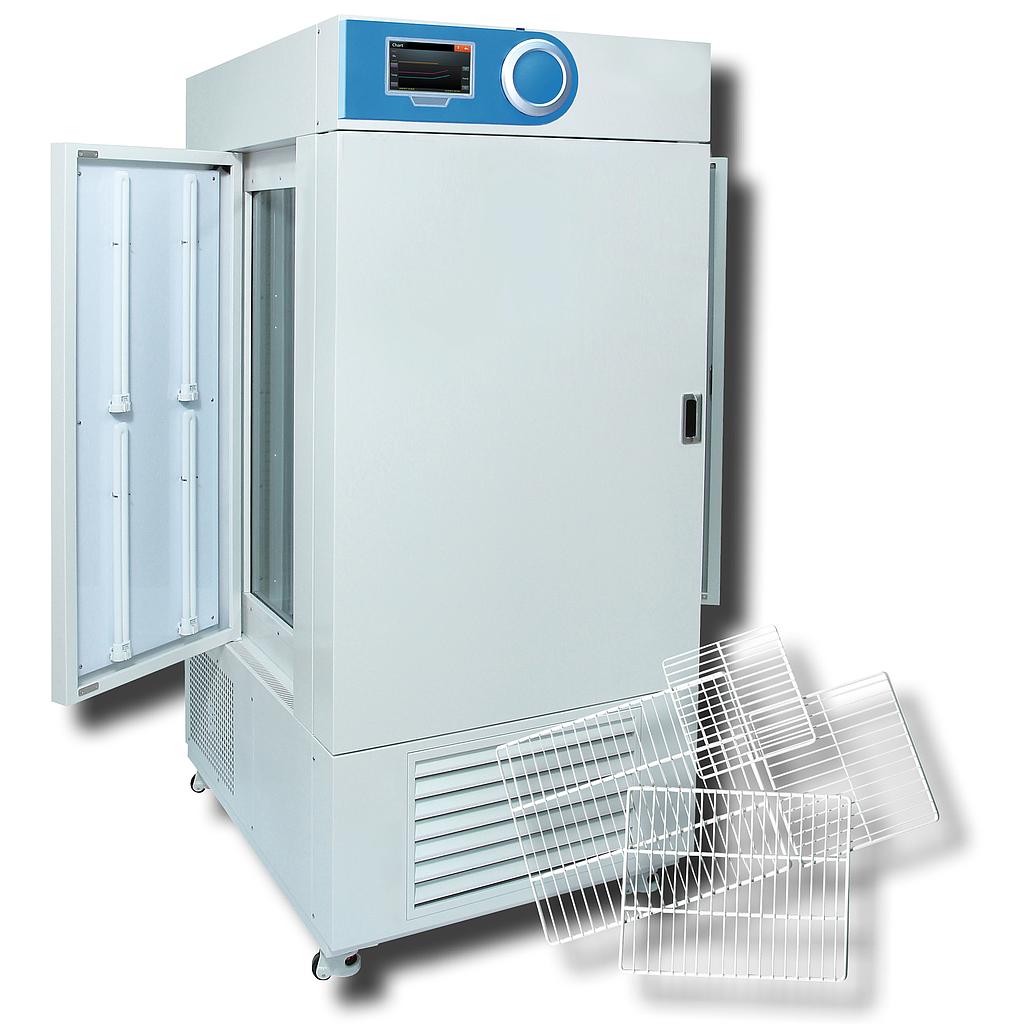

Wachstumskammer SWGC SmartLab Beleuchtung 864 Liter 10°C bis 60°C, 95%
ArtikelnummerDH.SWGC61000
MengeneinheitStück
Wachstumsschrank SWGC-1000,
Inhalt 864 L,
mit multifunktionalem Kontrollsystem,
0 - 15.000 Lux,
Messbereich: 30-95 % RH,
Temp.bereich: 10°C -60°C,
mit ergonomischem 7"-Voll-Touchscreen
TFT LCD Controller,
mit WiRe™-App- und Internetservice,
Außenmaße: 1400 x 1150 x 1965 mm,
Nutzmaße: 1200 x 790 x 1050 mm,
fahrbar mit Rollen,
komplett mit 8 PTFE-beschichteten Stahl-Einschiebebleche,
inkl. Wassertank, Silikonschlauch und Luxmeter
Stromanschluss: 3N~ 400V, 50/60 Hz, Steckertyp 5-polig, 16A CEE
Ideal for:
growth of organisms and plants, stability and endurance testing of materials, environmental simulations
stability product self-life QC testing
Features:
stability product self-life QC testing
3-sided light bank system: intensity of light is controlled by 8 levels and displayed on LCD
inner tempered glass door with silicone packing offers easy observation without door opening
PE-coated wire shelves included (4 or 8 acc. to model)
3-sided magnetic doors with light banks
stainless steel interior and powder-coated body
CE certified and unique serial number for tracing
Safety mechanism:
push alarm service to your smartphone
overheat and over-current protection
sensor error detection and leakage breaker
Controller:
Smart-Lab™ controller with 7? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function and interactive temperature graph
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
Version
2 doors
Bore
28 x FPL 55 W, 0 bis 15.000 Lux "
Width (Outer)
1200 mm
Thread
585 kg
Height (outer)
1965 mm
Cone (ST)
864 l
Synthetic coating
R-404A (FCKW-frei)
Length (outer)
1150 mm
Ideal for
Growth of organisms and plants, stability and endurance testing of materials, environmental simulations, stability product self-life QC testing
Power supply
6500 W
Cooling time
13 min. (0% illumination) / 15 min. (100% illumination)
Heating time
11 min. (0% illumination) / 9 min. (100% illumination)
Humidifier
Evaporation by fan with heater
Illumination
3 x light banks: left, right, front; 28 x FPL 55 W, 0 to 15000 Lux
Width (inner)
1200 mm
CO2 range
1200 mm
Shelves
8 PE-coated steel wire shelves (16 kg/shelf)
Immersion depth
8 PE-beschichtete Drahteinschübe (16 kg/Einschub)
Moisture range
±1%
Weight with packaging
585 kg
Heating power
3000 W
Height (inner)
1050 mm
Socket (ST)
1050 mm
Capacity
864 l
Compressor
750 W
Condenser
750 W
Refrigerant
R-404A (CFC-free refrigerant)
Length (inner)
790 mm
Hole diameter
790 mm
Plate size
Pflanzen- und Organismenwachstum, Stabilität- und Belastungstests, Umweltsimulationen, Lebensdauerqualitätstests
Power consumption
6500 W
Temperature range
10°C - +60°C
Temperature range with filter
10°C - +60°C
Temperature fluctuation
±0.5°C at 10°C, ±0.5°C at 25°C (0% illumination) / ±1°C at 10°C, ±1°C at 25°C (100% illumination)
Temperature accuracy
±1°C at 20°C
Thermocouple
±1°C bei 20°C
Packing size
1600 x 1500 x 2200 mm
Viscosity (mPas)
1600 x 1500 x 2200 mm
Recovery time
3 min. to 10°C, 1 min. to 37°C (0% illumination); 5 min. to 10°C, 1 min. to 37°C (100% illumination)
Angle
"3 Min. bei 10°C, 1 Min. bei 37°C (0% Beleuchtung)
Accessories
5 Min. bei 10°C, 1 Min. bei 37°C (100% Beleuchtung)"
Feuchtigkeitsgenauigkeit
±1%
Humidity stability
±3% at 60°C
Refrigerator
±1%
Cooling capacity
±3% bei 60°C
Sensor
Temperature sensor PT100
Washing surface
Temperatursensor PT100
