Trockenschrank SWON-W Natürliche Umluft SmartLab 155 Liter 230°C mit Sichtfenster

DH.SWON07155

Stück

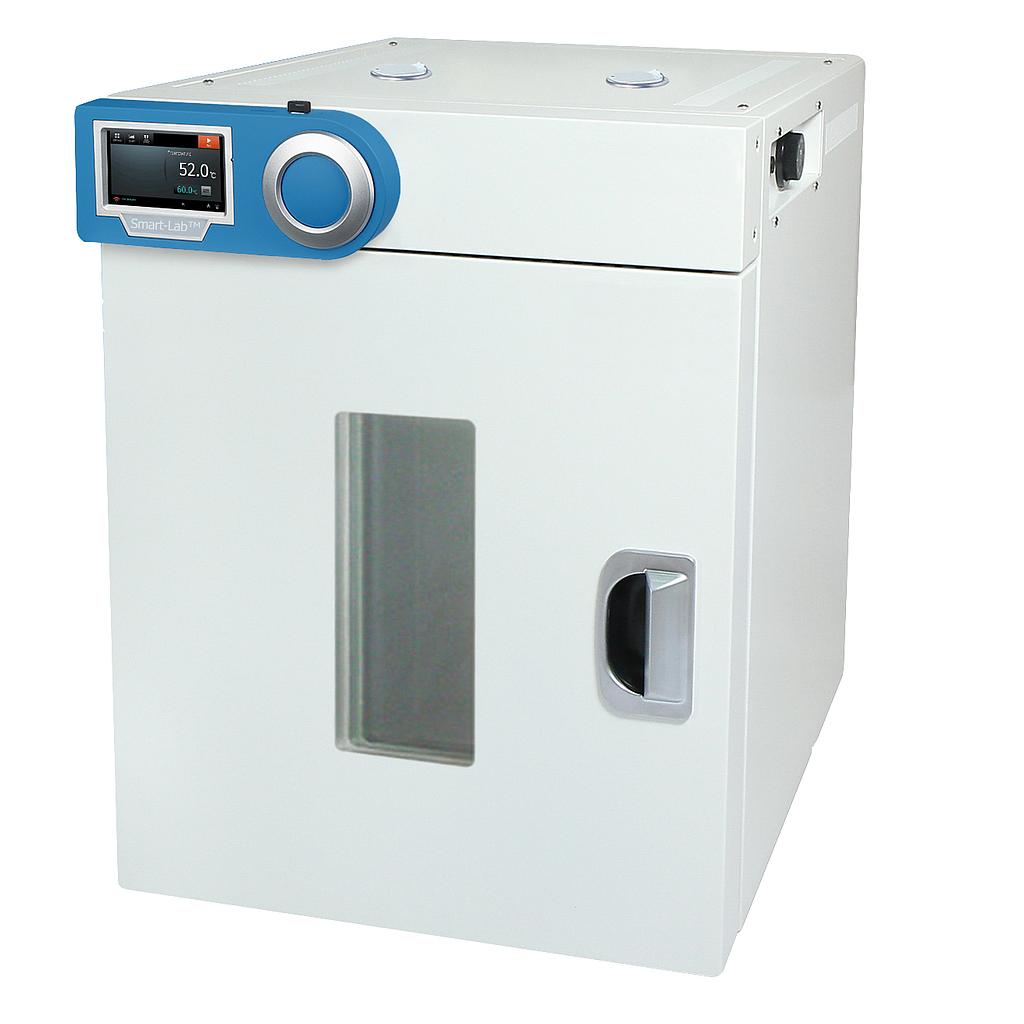

Oven, type SWON-W155,
standard model with viewing window,
capacity: 155 Liter,
with Smart-Lab Controller, 4" Full Touch Screen,
temp. range: ambient +5° +230°C,
Timer: 99 hr. / 59 min.,
circulation: gravity convection type,
internal dimension: 550 x 474 x 600 mm,
external dim.: 718 x 777 x 947 mm,
heater power: 1,6 kW,
incl. 2 stainless steel shelves,
power supply: 230 V, 50/60 Hz

Ideal for:

drying, baking, conditioning, curing, pre-heating and aging

Features:

optimized air flow by gravity-air mechanism
3-side heating ensures temperature uniformity and accuracy
ambient +5°C to 230°C range, fluctuation of ±0.5°C at 100°C
stainless steel chamber
powder-coated steel body and glass wool insulation
available with viewing window (SWON-W models)
new compact body design
storage function for set values of temperature and timer
2x stainless steel wire shelves included
CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

push alarm service to your smartphone
locking mode
overheat and over-current protection
sensor error detection

Controller:

Smart-Lab™ controller with 4? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi

Features

SMART-LabTM Controller:

full touch screen TFT LCD
WiRe™ app service, remote control system
variable program settings
self-diagnosis function
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

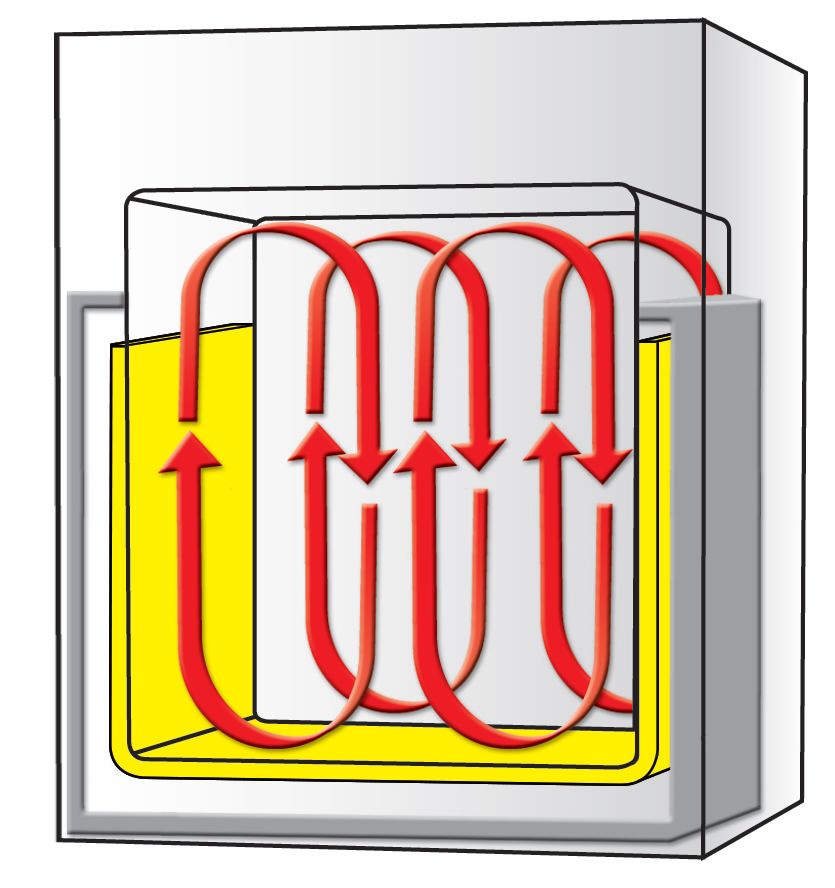

Gravity-air:The ovens gravity-air flow is established by heating up air in a pre-heating zone by heating elements on the bottom, left and right side. The pre-heated air will be restrictively provided into the chamber.

IQ/OQ available

Version
with viewing window

Width (Outer)
718 mm

Height (outer)
947 mm

Length (outer)
777 mm

Ideal for
Drying, baking, conditioning, curing, pre-heating and aging

Heating time
35 min. to 100°C, 50 min. to 150°C

Width (inner)
550 mm

Shelves
2 stainless steel wire shelves included, load per shelf 16 kg

Weight
78 kg

Weight with packaging
92 kg

Heating power
1600 W

Height (inner)
600 mm

Capacity
155 l

Length (inner)
474 mm

Hole diameter
Ø35 mm

Holes
2 ventilation holes with stainless steel cap

Power consumption
1566 W

Temperature variation
±1.2°C at 100°C, ±2.2°C at 150°C

Temperature control resolution
Control ±0.1°C

Temperature range
Room temperature +5°C - 230°C

Temperature fluctuation
±0.5°C at 100°C, ±0.8°C at 150°C

Packing size
808 x 884 x 1133 mm

Recovery time
12 min. to 100°C, 10 min. to 150°C

Sensor
Temperature sensor PT100
