Thermostat WCL Kälte-Umwälzthermostat 8 Liter, -35°C bis 150°C ±0,1°C

DH.WCL00408

Stück

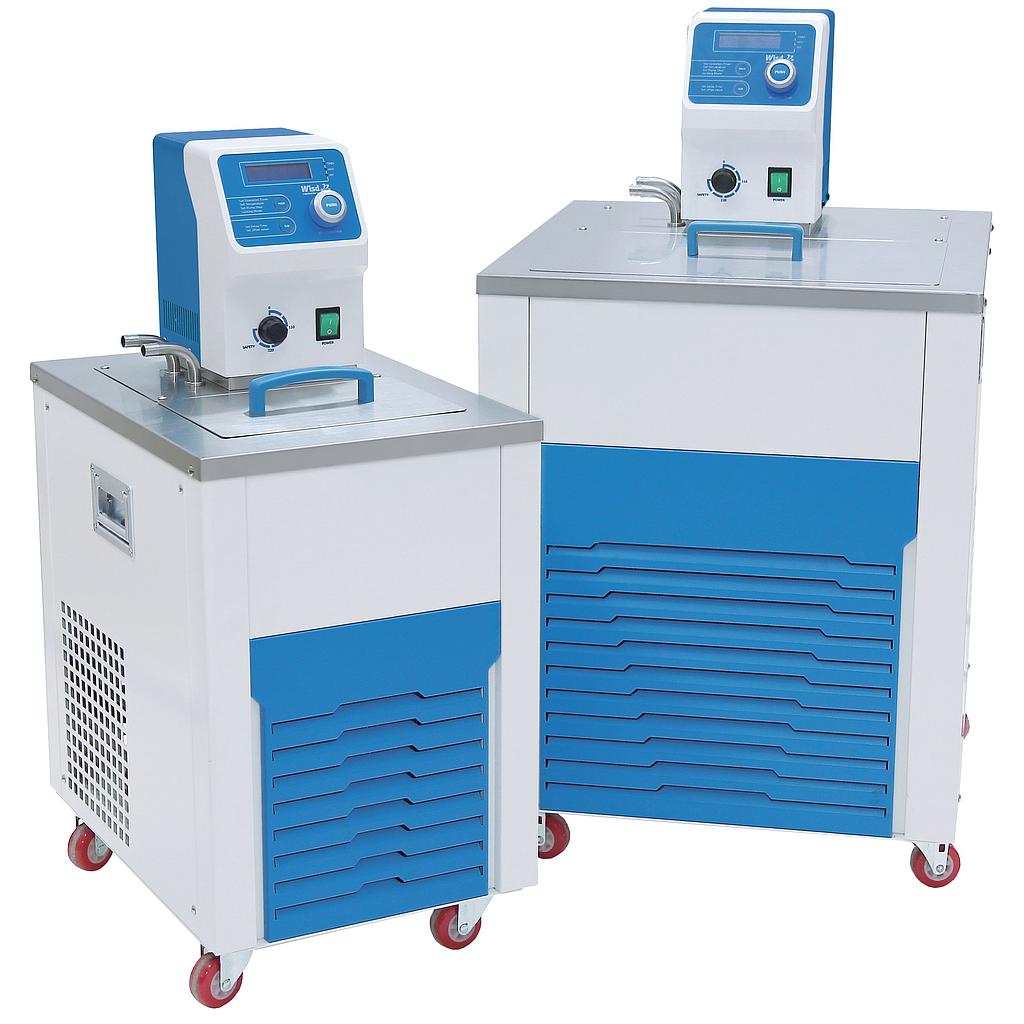

Refrigerated bath circulator WCL-8,
w. digital fuzzy control & digital LCD-back light system,
capacity: 8 Liter,
effective space: 175 x 153 x 150 mm,
temperature range: -35°C + 150°C,
pump: 25 Liter/min.,
timer: 99 hr / 59 min.,
incl. stainless steel flat lid and drain valve,
with wheels,
power: 1 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

connection with evaporator

Features:

stainless steel bath, polyurethane insulation of 40 mm thickness and body made of powder-coated steel
innovated refrigeration system ensures temperature performance, includes intelligent control for preventing compressor overload, CFC-free (R-404A)
innovated powerful circulation pump ensures temperature uniformity: internal and external circulation and 5 steps circulation speed

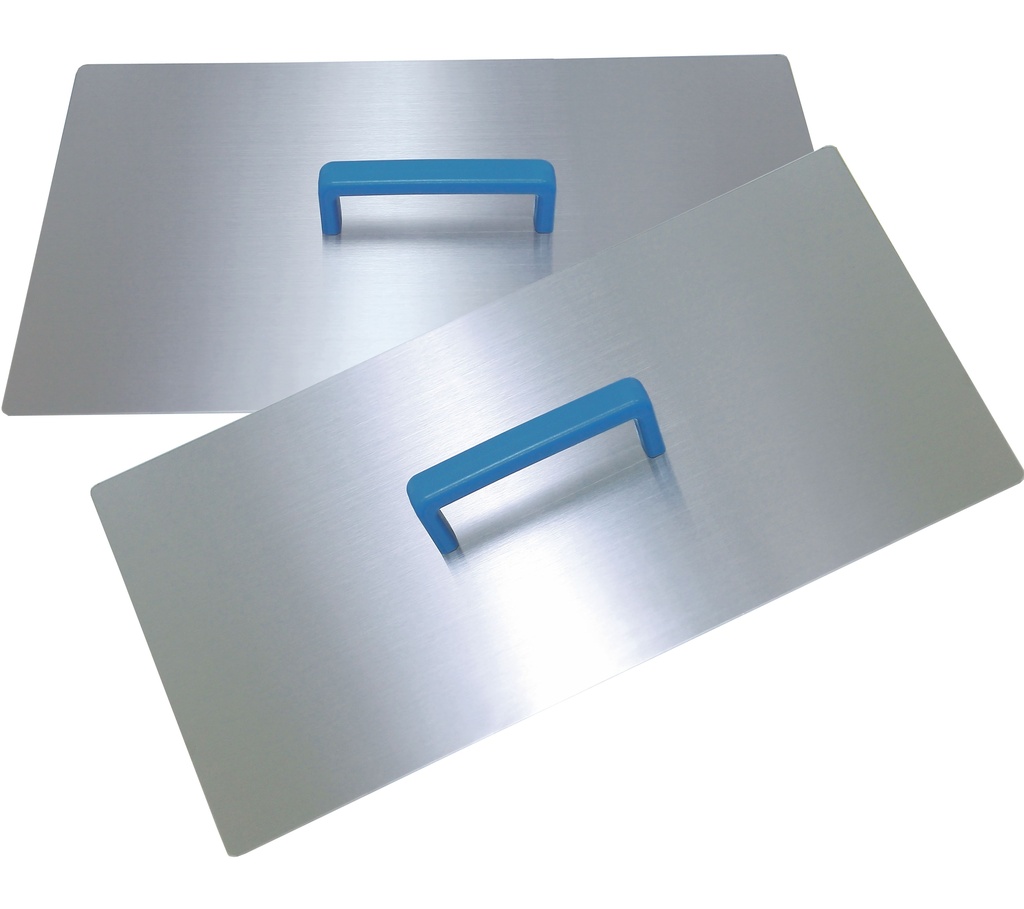

stainless steel flat lid & valve ball included, dome lid optional
RS232C interface: remote monitoring and controlling with PC
proper liquid level tag in bath
user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection and leakage breaker
low liquid level warning and automatic stop function
locking mode

Controller:

digital fuzzy controller with Jog-Dial-switch (turn + push) & capacitive touch button

Width (Outer)
400 mm

Height (outer)
807 mm

Length (outer)
523 mm

Ideal for
Connection with evaporator

Connections

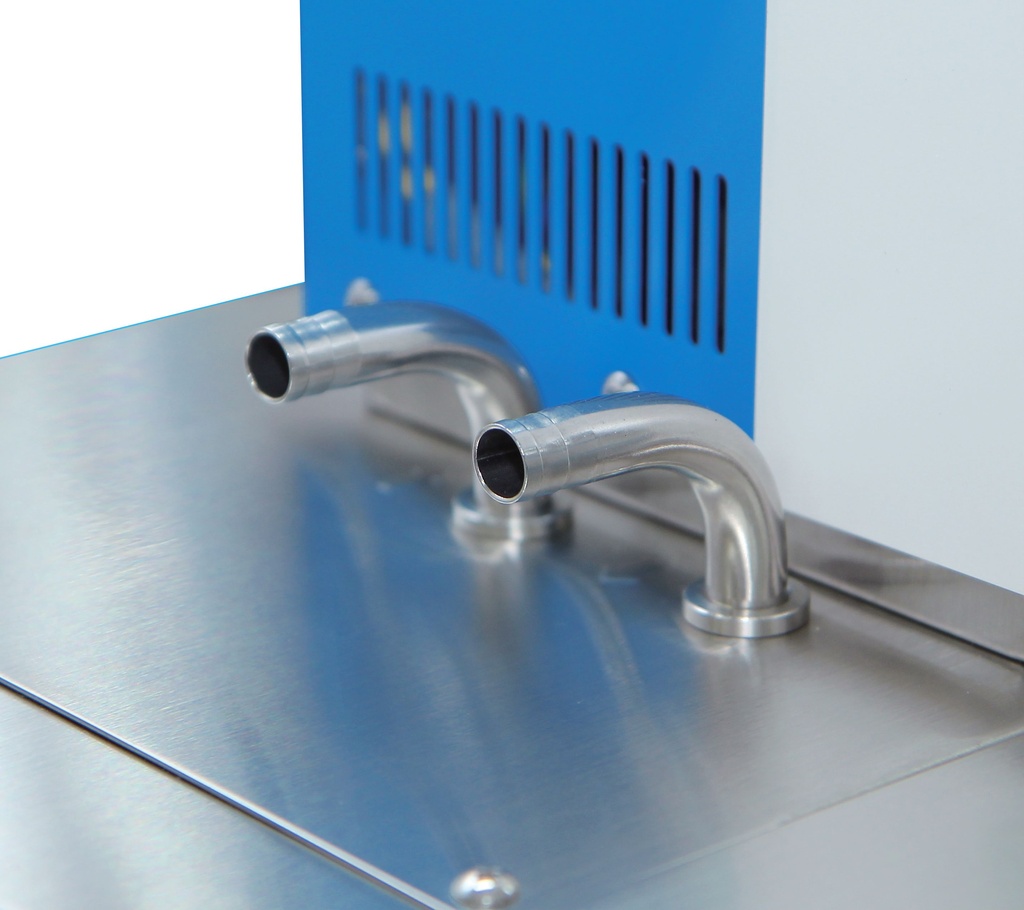

External circulation nozzle: inner: Ø10.5mm, outer Ø12.5mm, for inner circulating: connect directly the in-/outlet nozzles

Width (inner)
175 mm

Pressure
7.5 psi

Weight with packaging
50 kg

Heating power
1000 W

Height (inner)
150 mm

Capacity
8 l

Length (inner)
320 mm

Effective space
175 x 153 x 150 mm

Pump performance
25 l/min., max. lift: 4 m

Temperature variation
±0.2°C to -20°C

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
-35°C - +150°C

Temperature accuracy
±0.1°C

Packing size
630 x 530 x 972 mm

Refrigerator
370 W

Cooling capacity
500 W at +20°C, 340 W at 0°C, 200 W at -20°C

Sensor
Temperature sensor PT100

Flow rate
25l/Min.
