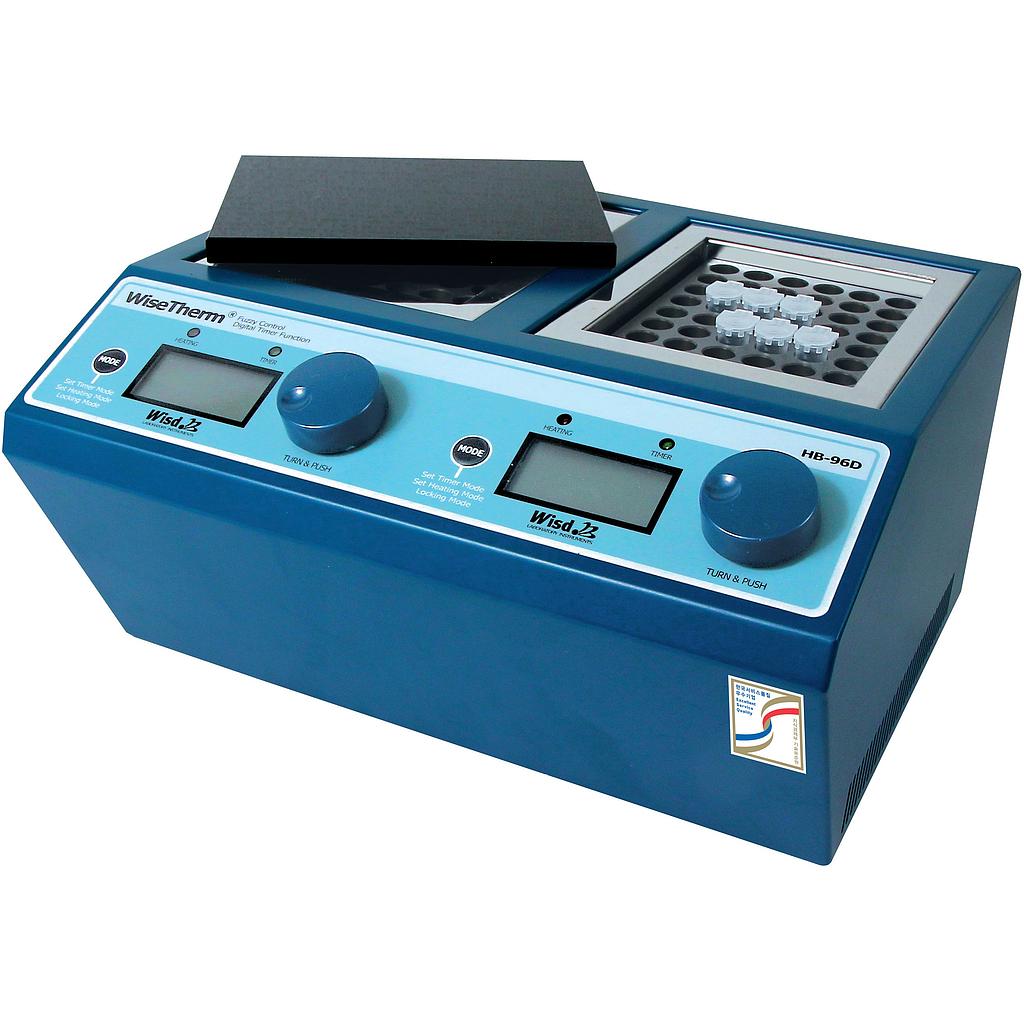

Blockthermostat HB-96D 2 Blöcke bis 150°C

DH.WHB00198

Stück

Heating Block HB-96D,
Dual Control,
Digital timer and PID Control System,
Timer: 99 hr. / 59 min.,
Temp. range: ambient +5° - 150°C,
Heater: 600 W,
Block: 2x 90 x 120 x 60 mm,
Ext.: 285 x 250 x 155 mm,
power supply: 230 V, 50/60 Hz

Ideal for:

enzyme reactions, inactivation of sera, incubation and other laboratory procedures
multifunctional dry block heater

Features:

user‘s self-compensation function to offset between real temperature and indicated temperature (±10.0°C)
unit made of stainless steel and powder-coated steel, block made of anodized aluminium
digital timer function
internal PPS bath ensures best insulation, block made of anodized aluminium
precise temperature control
block extraction tongs “BLE101” & block cover are included
storage function for the set values of temperature and timer
alarm function: error status and timer end
various kinds of blocks are offered (optional)
dual block and 2 molded heater (300W)
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

locking mode
overheat and over-current protection
sensor error detection

Controller:

dual digital fuzzy controller with Jog-Shuttle-switch

Width (Outer)
250 mm

Height (outer)
155 mm

Length (outer)
285 mm

Heating time
approx. 5°C/min

Width (inner)
90 mm

Weight with packaging
6 kg

Height (inner)
60 mm

Length (inner)
120 mm

Power consumption
600 W

Temperature range
Room temperature +5°C to 150°C

Temperature accuracy
±0.1°C at 37°C, ±0.2°C to 90°C, ±0.4°C at 135°C

Packing size
400 x 270 x 200 mm

Sensor
Temperature sensor PT100
