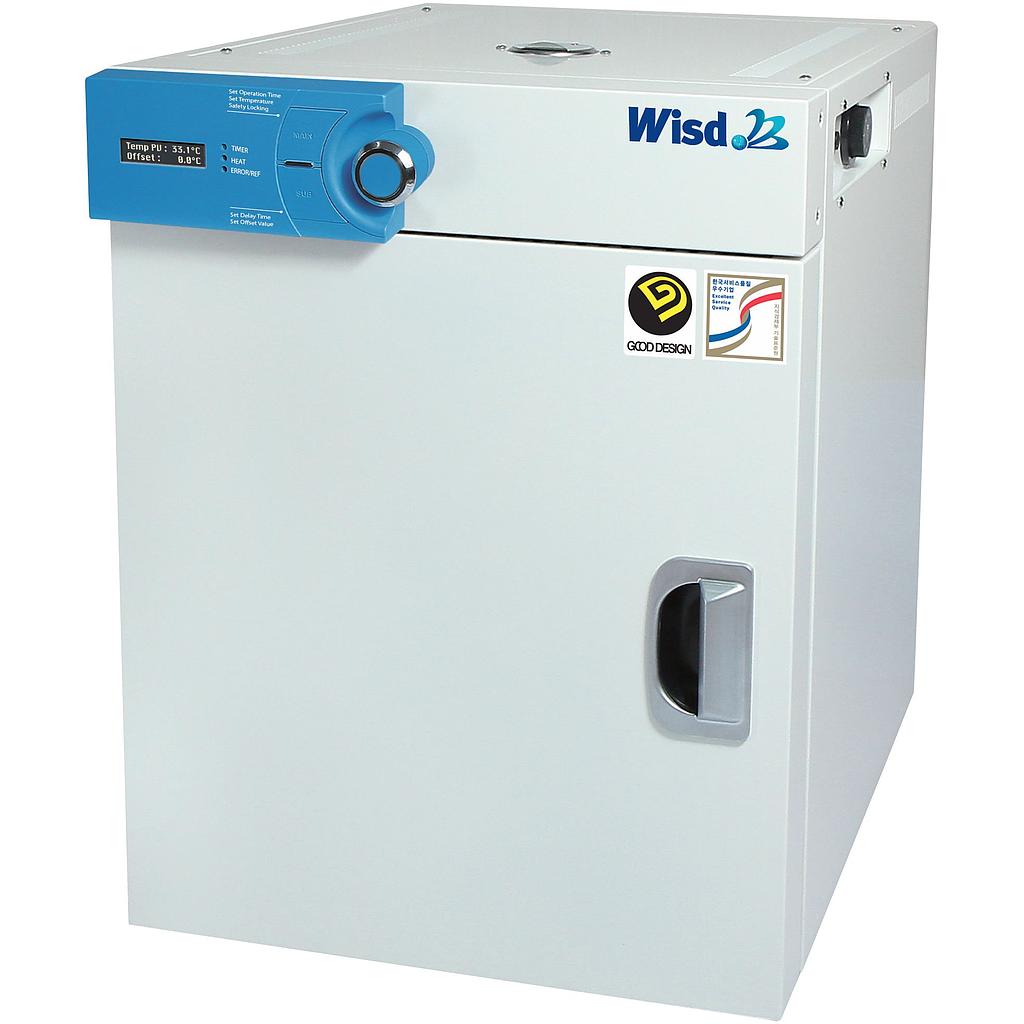

Trockenschrank WON-32 Natürliche Umluft 32 Liter 230°C

DH.WON05032

Stück

Natural-Flow Oven WON-32,
without viewing window,
with digital fuzzy control,
capacity: 32 Liter,
temp. range: ambient +5° +230°C,
Timer: 99 hr. / 59 min.,
natural-flow type,
internal dimension: 310 x 290 x 360 mm,
external dimension: 458 x 557 x 664 mm,
heater: 500 W,
incl. 2 stainless steel shelves of adjustable position,
power supply: 230 V, 50/60 Hz

Ideal for:

drying, baking, conditioning, curing, pre-heating and aging

Features:

optimized air flow by gravity-air mechanism
3-side heating ensures temperature uniformity and accuracy
ambient +5°C to 230°C range, fluctuation of ±0.5°C at 100°C
RS232C interface for monitoring and controlling (WireRemote)
stainless steel chamber
powder-coated steel body and glass wool insulation
available with viewing window (WON-W models)
new compact body design
storage function for set values of temperature and timer
backlight LCD display
2x stainless steel wire shelves included
CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

locking mode
overheat and over-current protection
sensor error detection

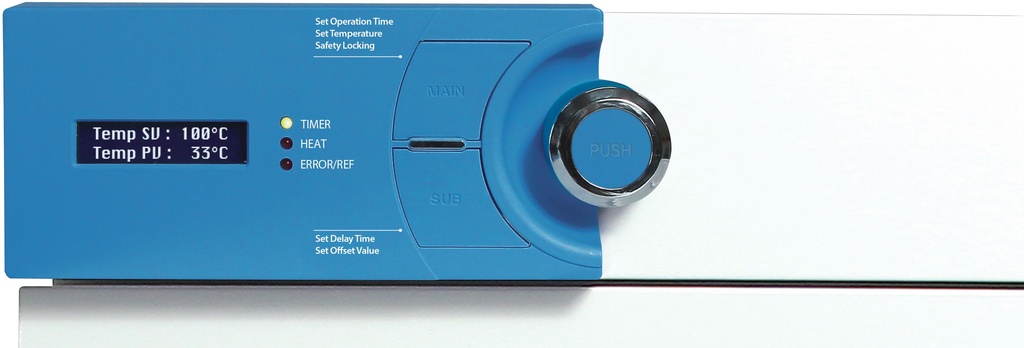

Controller:

Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons

Features

Jog-Dial controller:

ergonomic design for easy and convenient usage
2-way Jog-Dial knob provides simple setting of required temperature and time
high quality illuminated LCD
„MAIN“ and „SUB“ button to access all menus

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

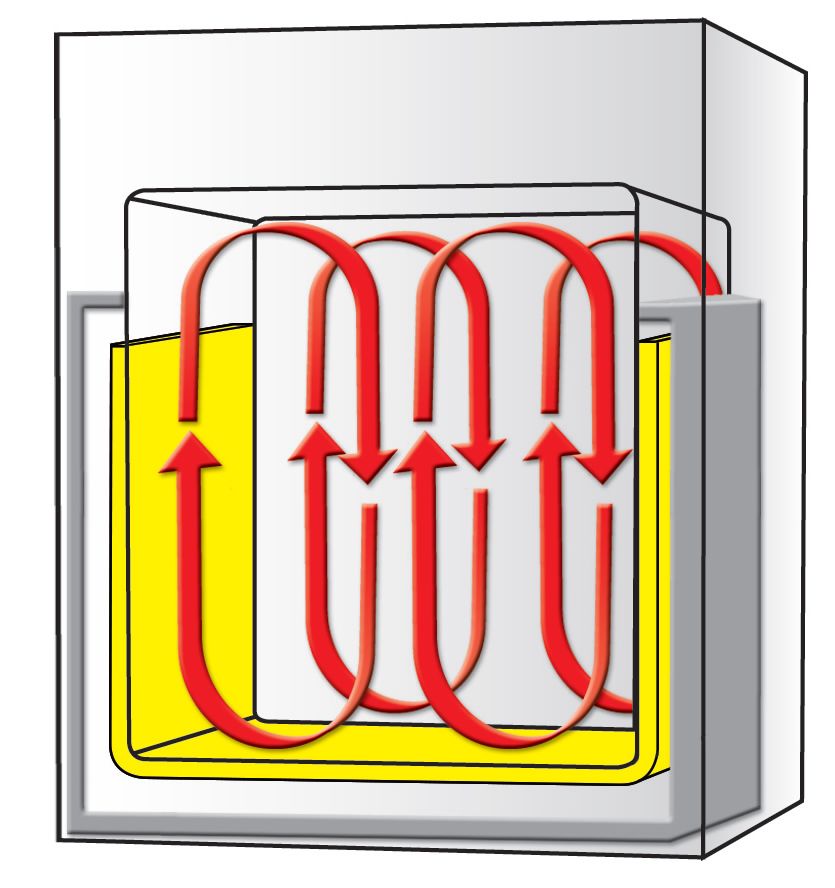

Gravity-air:The ovens gravity-air flow is established by heating up air in a pre-heating zone by heating elements on the bottom, left and right side. The pre-heated air will be restrictively provided into the chamber.

IQ/OQ available

Width (Outer)
458 mm

Height (outer)
664 mm

Length (outer)
557 mm

Ideal for
Drying, baking, conditioning, curing, pre-heating and aging

Heating time
30 min. to 100°C, 43 min. to 150°C

Width (inner)
310 mm

Shelves
2 stainless steel wire shelves included, load per shelf 16 kg

Weight
36 kg

Weight with packaging
43 kg

Heating power
500 W

Height (inner)
360 mm

Capacity
32 l

Length (inner)
290 mm

Hole diameter
Ø35 mm

Holes
1 ventilation hole with stainless steel cap

Power consumption
502 W

Temperature variation
±1.2°C at 100°C, ±2.2°C at 150°C

Temperature control resolution
Control ±0.1°C

Temperature range
Room temperature +5°C - 230°C

Temperature fluctuation
±0.5°C at 100°C, ±0.6°C at 150°C

Packing size
562 x 664 x 747 mm

Recovery time
8 min. to 100°C, 10 min. to 150°C

Sensor
Temperature sensor PT100
