VortexMixer VM10 Kreisbewegung

DH.WVM00010

Stück

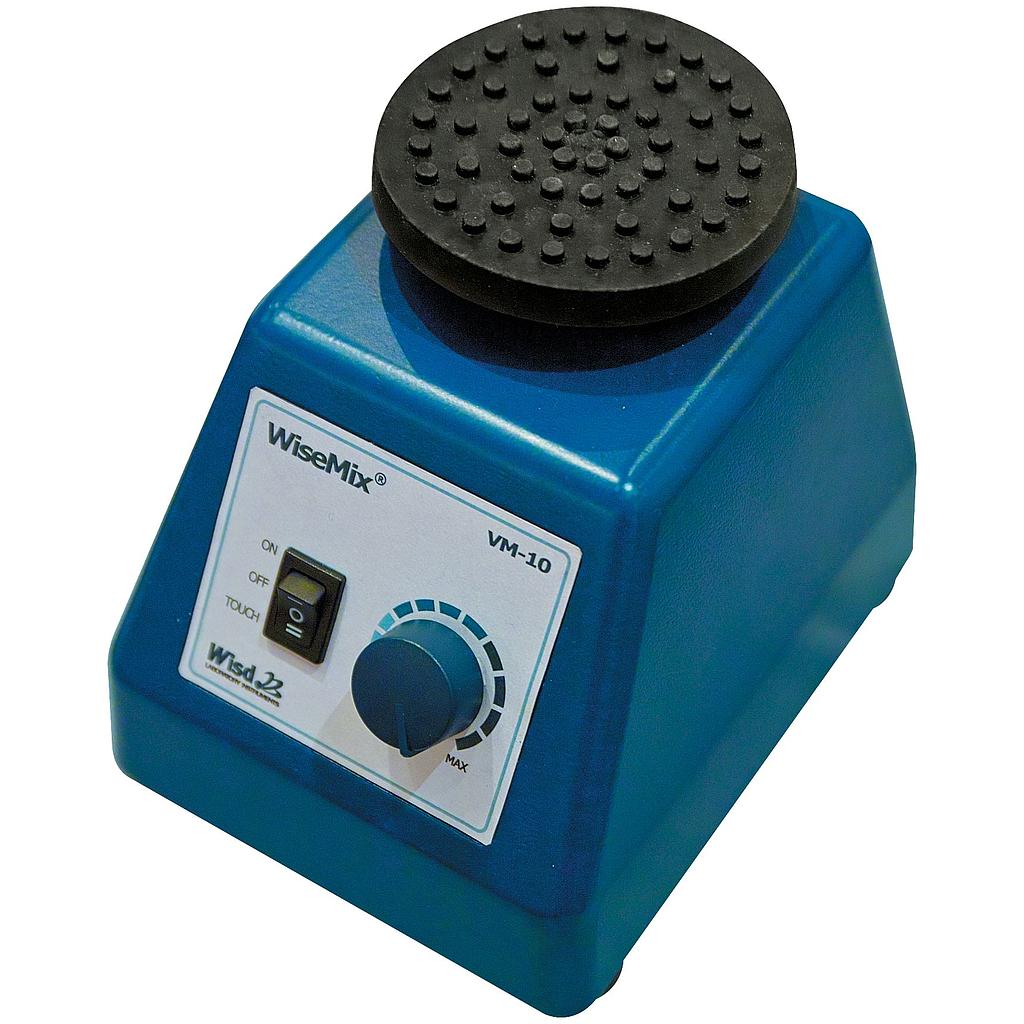

Vortex Mixer Typ VM-10,
shaking motion: orbital,
speed Range from 0 to 3300 rpm,
dimension: 160 x 128 x 145 mm,
Weight: 4 kg,
complete with platform and Pop-off Cup Head,
Power Supply: 230 V, 60 Hz

Ideal for:

mixing solutions in test tubes or small flasks with circular, oscillating movement

Features:

0 - 3,300 rpm
orbital motion
inclusive platform head Ø76 mm and pop-off cup head
3-position power switch for continuous run or „touch-on“
stepless adjustable speed by turning the dial-knob
tough metal housing and reliable suction cups ensure stable motion, low noise and safe working
various shapes, sizes and materials of the head allow mixing of almost all common tubes and containers
CE certified and unique serial number for tracing

Controller:

analog phase controller
3-position switch for start, stop and „touch-on“
dial-knob for stepless speed setting


Width (Outer)
160 mm

Height (outer)
145 mm

Length (outer)
128 mm

Material
Aluminium die-casting with powder-coating

Ideal for
Mixing solutions in test tubes or small flasks with circular, oscillating movement

Controller
Analog

Speed
0-3300 rpm

Weight
3 kg

Weight with packaging
4 kg

Shaking motion
Orbital motion

Packing size
260 x 200 x h220 mm

Accessories
included pop-off cup head and Ø76 mm platform

Max. load
5 kg
