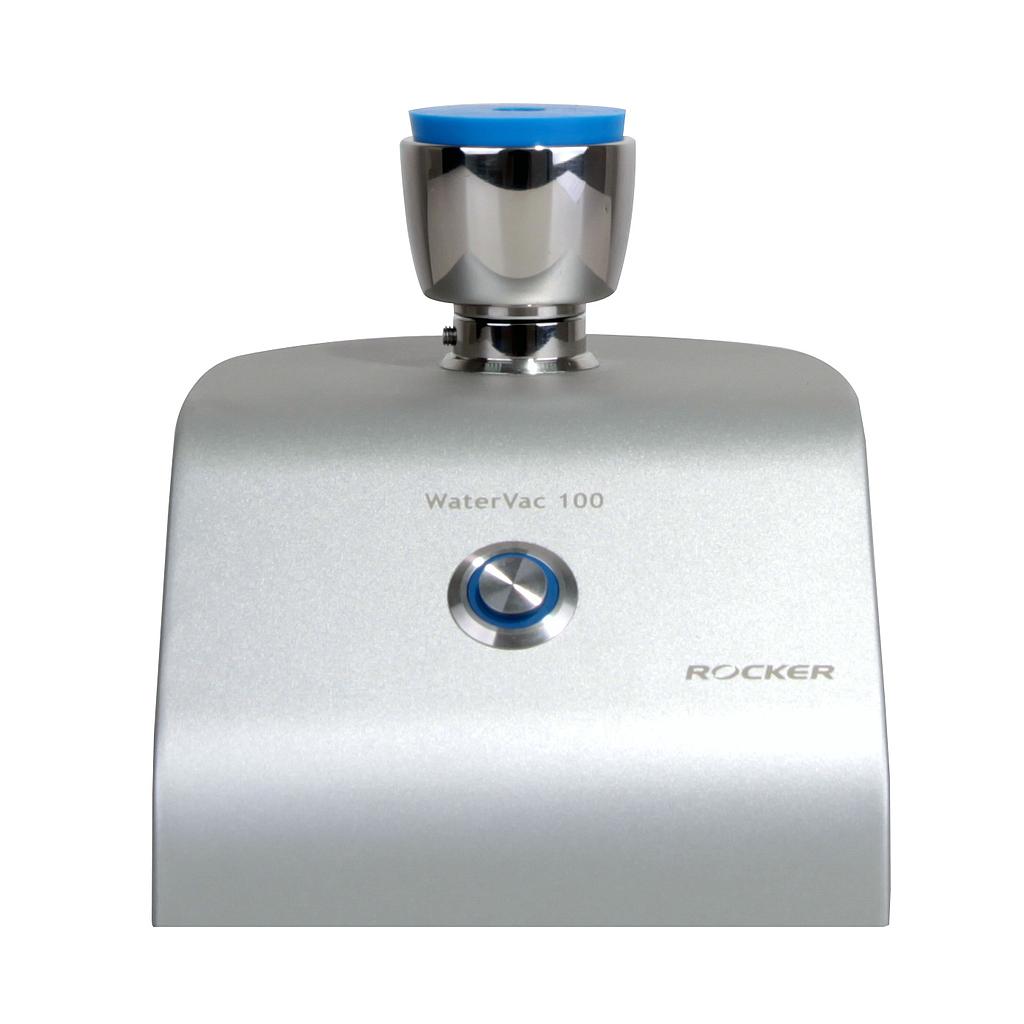

Vacuum filtration system WaterVac 100 -540mmg with integrated vacuum pump

00829 190110-02

Piece

WaterVac100 Vacuum Filtration System,
1 place,
with integrated suction system,
stopper,
AC100-240V,
DC 12V, 1,5A,

Ideal for:

microbiological filtration technique for analyzing aqueous-based fluids for microbiological contamination
suspended solid test for municipal, surface, ground and drinking water
general filtration without the need of collecting filtrate

Features:

-540 mmHg
up to 0,5 l/min (liquid) or 2,2 l/min (air)
integrated vacuum pump
compact design - ideal for work benches or laminar flow hoods
no special suction flask or waste bottle is needed
available with spin-lock or stopper design
one push-button for easy operation
silicone tube (2m) for waste drain included

Version
with spin-lock

Width (Outer)
120 mm

Diameter (outer)
Filter: Ø47 mm / 50 mm

Height (outer)
96 mm

Length (outer)
170 mm

Material
Housing: SUS 304; valve plate: EPDM; diaphragm: EPDM; inlet / outlet port: SUS 316; O-ring: FKM; tube: silicone

Ideal for
Microbiological filtration technique for analysing aqueous-based fluids for microbiological contamination, suspended solid test for municipal, surface, ground and drinking water, general filtration without the need of collection filtrate

Connections
EU-plug

Weight
1.16 kg

Vacuum range
max. -540 mmHg
