Water disinfection
The simple and safe production of drinking water.
Anywhere. Anytime. Without chemicals.
HOW IMPORTANT IS RELIABLE ACCESS TO DRINKING WATER TO YOU?
Water is an elixir of life. Without this precious wet, no life is possible. With our diverse solutions, you can turn any kind of water into drinking water. No matter where you are. No matter from which body of water you take the fresh water. You'll have access to pure drinking water in no time at all; whether you're camping, on a boat, in a camper van or anywhere else you want it. Completely chemical-free, 100 times more effective than conventional water purifiers and with a disinfection performance of 99.9999%.
Never worry about the quality of your water source again!
PLAY IT SAFE WITH US!
HERE YOU WILL FIND OUR SOLUTIONS FOR A WIDE RANGE OF APPLICATIONS:
OUTDOOR ACTIVITIES:
CLEAN DRINKING WATER ON THE GO!
The simple production of drinking water for adventurers and globetrotters. Mobile drinking water production with our Survivor kit: safe, fast, uncomplicated. And without chemicals.
Find out more
CAMPER, BOAT OR VACATION HOME:
ENJOY YOUR VACATIONS CAREFREE!
So that your vacations do not fall into the water. Get up to 5l/min purified drinking water - no matter where you are. Completely without chemicals.
Find out more
WATER DISINFECTION FOR POOL, WELL OR CISTERN:
DO WITHOUT CHEMICALS!
Reliable water disinfection for your pool, well or cistern - in just one hour to 24'000 liters of purified drinking water! Pure water pleasure, completely without chemicals.
Find out more
RELIABLE WATER PURIFICATION FOR YOUR EXISTING EQUIPMENT:
OEM MODULE
Pure water comes from within. More precisely, from your existing equipment such as refrigerators, water dispensers or ice machines. The simple integration allows you to reliably purify water.
Find out more
MOBILE DRINKING WATER PRODUCTION:
Portable water treatment plant:
Clean drinking water on the go - enjoy your outdoor activities!
Our UV-C water disinfection kit guarantees the simple, fast and uncomplicated production of drinking water for adventurers and globetrotters. And completely without chemicals. Because only you should be able to determine where you pitch your tent. The Survivor kit produces 1.2 liters of purest drinking water in just one minute; no matter from which body of water you take the water beforehand. Thanks to the electric submersible pump, the water is easily and practically taken from a well, lake, stream or a water hole. The pre-filter removes suspended solids and bacteria in the shortest possible time. The integrated heavy metal filter then removes substances such as lead, copper, chromium and other heavy metals. The resulting clear water finds its way into a UV-C unit. The remaining viruses and/or pathogens are effectively destroyed by 99.999%. The drinking water is ready!
The kit includes the following accessories:
-
Electric submersible pump
-
Double membrane filter 1um/0.3um (laboratory technology) for maximum service life
-
Heavy metal filter
-
UV-C LED Disinfection module
-
Hosing
-
Multifunctional solar panel
Performance data:
-
Disinfection power: >16 mJ/cm2
-
Flow rate: 1.2 liters per minute (0.3 gallons)
-
Service life: 72,000 liters of water or up to 10 years depending on use
-
Materials: High quality polymer housing, stainless steel reactor inside for UV LED disinfection.
-
Free from: Chemicals, mercury & other residues
-
Certification: NSF /ANSI 55 Class 'B' and NSF/ANSI 372 certified by IAPMO R&T
Dieses Kit wird in Kürze verfügbar sein!

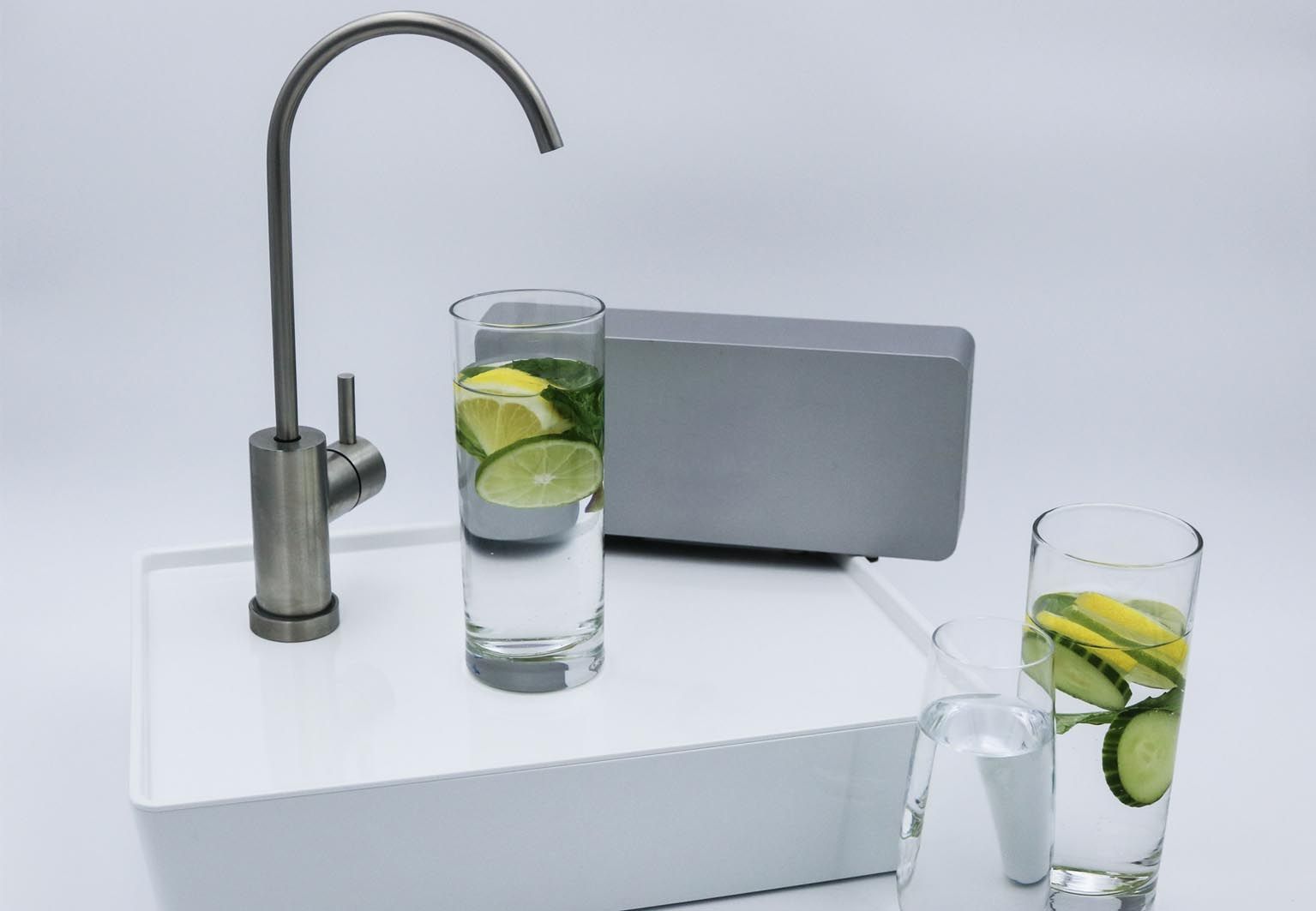

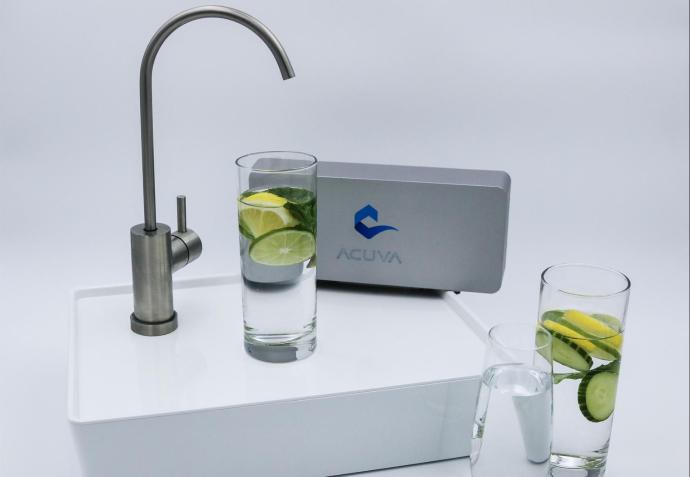

PURE DRINKING WATER FOR MOTORHOME, BOAT OR VACATION HOME - FOR CAREFREE VACATIONS!
With the optional heavy metal filter, you also eliminate substances such as lead, copper, chromium, mercury and arsenic. Unlike commercial water purifiers, Acuva systems eliminate up to 99.9999% of all bacteria and viruses.Last but not least, installation under the sink is very easy. The device is space-saving and ready for immediate use!
The advantages of our Acuva solutions at a glance:
✓ Eliminates up to 99.9999% of harmful bacteria and viruses in water
✓ Reduces chlorine, mercury, heavy metals and pesticides through the advanced pre-filter
Eco NX-Silver Water conditioner
Our Eco NX-Silver is the most powerful, compact and lightweight water purifier ever developed. This maintenance-free water disinfection product is certified by IAPMO R&T to NSF 55 Class 'B', the gold standard for drinking water. It reliably purifies without residues and without chemicals.
Leistungsdaten:
-
Flow rate: 1.2L/min
-
UV-C dose rate: >16 mJ/cm2
-
Water inlet fitting: ¼" OD push-to-connect
-
Water outlet fitting: ¼" OD push-to-connect
-
Power consumption: approx. 14 W (active)
-
Power supply: 12V / 230V selectable
-
Maximum water temperature: 40ºC
-
Max. working pressure :100 PSI
-
Min. working pressure: 12 PSI
-
Maximum relative humidity of the environment: 70%.
Arrow Max 2.0 Water purifier
Delivers up to 2 liters of purified drinking water per minute!
The powerful ArrowMAX 2.0 UV LED water purifier eliminates up to 99.9999% of bacteria, viruses and cysts, providing safe drinking water straight from the tap. The convenient point-of-use system with high quality polymer housing for motorhomes, camper vans and amaller houses are compatible with any faucet and can be connected to multiple water lines.
-
Delivers up to 2 liters of drinking water per minute (0.52 gallons)
-
Can release about 120,000 liters of water within its lifetime
-
Can be connected to multiple water lines
-
Acuva™ Smart Faucet included
-
High quality polymer housing
-
Stainless steel reactor in the inner part for UV LED disinfection
-
Residue-free, chemical-free and mercury-free water purification
Leistungsdaten:
-
Flow rate: 2 L/min
-
UV-C dose output: >16 mJ/cm²
-
Power consumption: approx. 9.0 W (active) or 0.1 W (stand-by)
-
Power supply: 12V / 230V selectable
-
Maximum water temperature: 40ºC
-
Maximum working pressure: 100 PSI
-
Min. working pressure: 12 PSI
-
Water inlet connection: ¼" OD push-to-connect
-
Water outlet connection: ¼" OD push-to-connect
-
Maximum relative humidity in the environment: 70%.
-
Stainless steel reactor inside for the best UV-C LED disinfection
-
NSF/ANSI 55 Class 'B' and NSF/ANSI 372 certified by IAPMO R&T
Arrow 5 Water purifier
Delivers up to 5 liters of purified drinking water per minute!
The Arrow 5 is our largest LED-based purification system that can supply clean water to multiple sources at once. It is perfect for yachts, cabins and houses and is optimally equipped with, among other things, a Smart Faucet water tap and advanced pre-filter.
-
Delivers up to 5 liters of drinking water per minute (1.3 gallons)
-
Long service life of up to 10 years - and can clean a total of around 900,000 liters of water
-
Acuva™ Smart Faucet included
-
High quality aluminum housing
-
Stainless steel reactor in the inner part for UV LED disinfection
-
Residue-free, chemical-free and mercury-free water purification
Leistungsdaten:
-
Dose delivery: >16 mJ/cm²
-
Flow rate: 5 L/min
-
Water inlet fitting: ⅜" OD push-to-connect
-
Water outlet fitting: ⅜" OD push-to-connect
-
Input voltage: 12V or 230V
-
Power consumption (active): Approx. 60 W
-
Power consumption (standby): Approx. 0.1 W
-
Maximum water temperature: 40ºC
-
Maximum working pressure: 100 PSI
-
Minimum working pressure: 40 PSI
-
Maximum relative humidity in the environment: 70%.
Advanced Pre-Filter (for Eco NX & Arrow)
The reliable and robust activated carbon inline water filters with 3/8'' plug-in connections provide maximum protection and remove lead, heavy metals, chlorine (99%), chromium 6, mercury, carcinogenic and other contaminants (99%) as well as turbidity, unpleasant odors and tastes. They are compatible with the Eco NX-Silver, ArrowMAX 1.0 and ArrowMAX 2.0.
After 4,000 gallons of water flow, the filter should be replaced.
WATER DISINFECTION FOR FULL WATER ENJOYMENT: DO WITHOUT CHEMICALS FOR YOUR POOL, FOUNTAIN OR CISTERN!

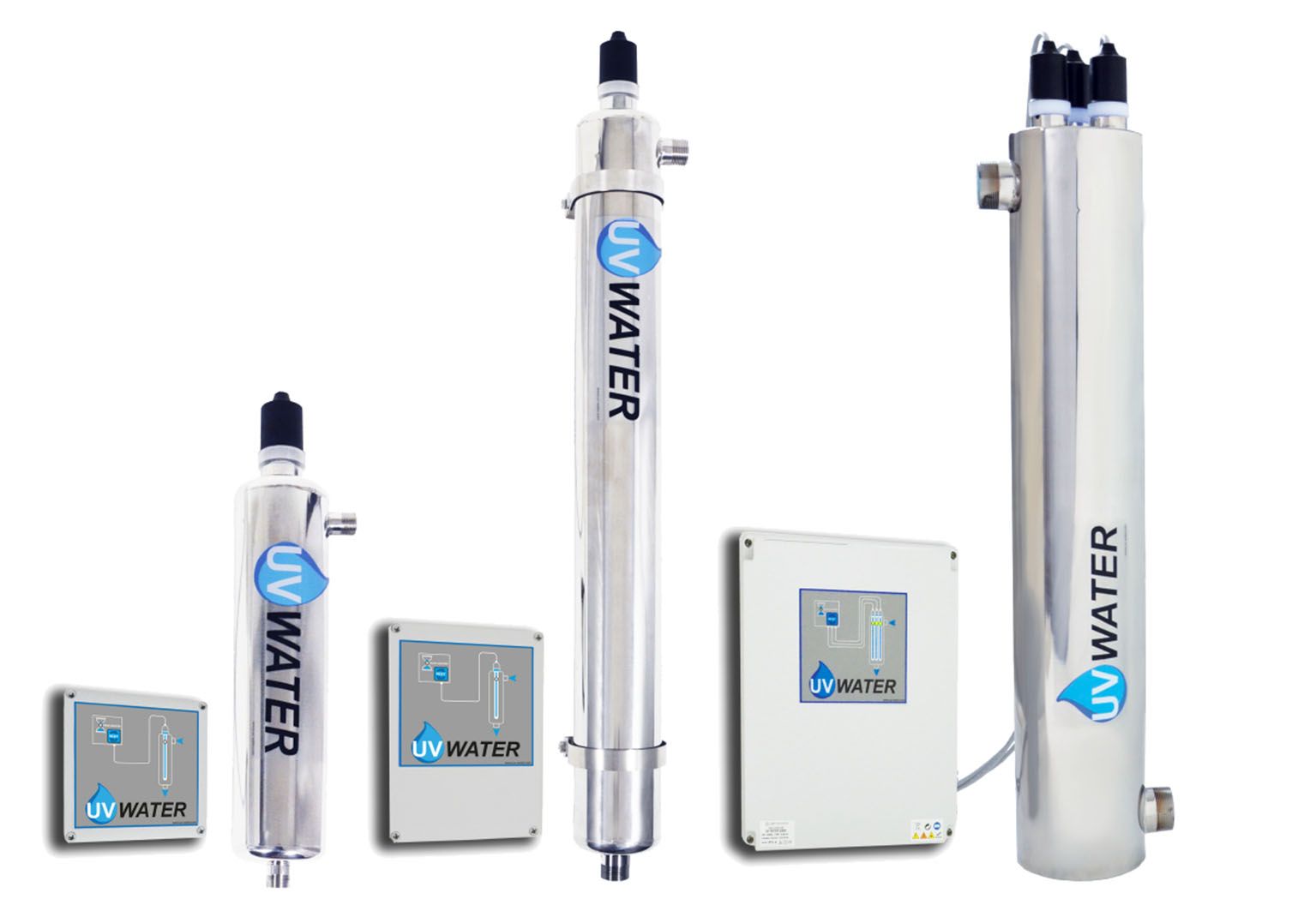

UV-Water is an excellent UV-C disinfection reactor for water disinfection of well water, cistern water, well water or spring water. Microbiological loads such as coliforms, streptococci or Escherichia coli, but also microorganisms such as molds and spores, are reliably eliminated. Even organisms that are difficult to remove are eradicated. The device can be switched on 24/7. With the practical control panel you can easily monitor the correct function at any time.Last but not least: The UV-Water can also be used for post-treatment of water, such as after activated carbon filter systems!
UV-WATER-40H / 1 X 40W LIGHTING MATERIALS
Disinfection of well, cistern or spring water / flow rate: 3'200 L/h
UV-C disinfection reactor for disinfection of well water, cistern water or spring water for flow rates up to 3'200 liters of water per hour.
Leistungsdaten:
-
Treated water flow rate: 3'200 L/h (0,9 L/s)
-
Power supply: 220/240V-50/60Hz
-
Total power: 40 W (HO) (1 lamp)
-
Faulty lamp alarm
-
Exhausted lamp alarm
-
Remote alarm in case of damage
-
S.S. UV chamber AISI 304L
-
IN / OUT 3/4" GAS BSP
-
IP protection class IP20
-
Dimensions 58 x 10cm
UV-WATER-90H / 1 X 90W LIGHTING MATERIALS
Disinfection of well, cistern or spring water / flow rate: 8'000 L/h
UV-C disinfection reactor for disinfection of well water, cistern water or spring water for flow rates up to 8'000 liters of water per hour.
Performance data:
-
Treated water flow rate: 8'000 L/h (2,2 L/s)
-
Power supply: 220/240V-50/60Hz
-
Total power: 90 W (HO) (1 lamp)
-
Faulty lamp alarm
-
Exhausted lamp alarm
-
Remote alarm in case of damage
-
S.S. UV chamber AISI 304L
-
IN / OUT 1" GAS BSP
-
IP protection class IP20
-
Dimensions 106 x 10cm
UV-WATER-2/90H / 2 X 90W LIGHTING MATERIALS
Disinfection of well, cistern or spring water / flow rate: 13'000 L/h
UV-C disinfection reactor for disinfection of well water, cistern water or spring water for flow rates up to 13'000 liters of water per hour.
Performance data:
-
Flow rate of treated water: 13'000 L/h (3.6 L/s)
-
Power supply: 220/240V-50/60Hz
-
Total power: 180 W (HO) (2 lamps)
-
Faulty lamp alarm
-
Exhausted lamp alarm
-
Remote alarm in case of damage
-
S.S. UV chamber AISI 304L
-
IN / OUT 2" GAS BSP
-
IP protection class IP20
-
Dimensions 104 x 16cm
UV-WATER-3/90H / 3 X 90W LIGHTING MATERIALS
Disinfection of well, cistern or spring water / flow rate: 18'000 L/h
UV-C disinfection reactor for disinfection of well water, cistern water or spring water for flow rates up to 18'000 liters of water per hour.
Performance data:
-
Treated water flow rate: 18'000 L/h (5 L/s)
-
Power supply: 220/240V-50/60Hz
-
Total power: 270 W (HO) (3 lamps)
-
Faulty lamp alarm
-
Exhausted lamp alarm
-
Remote alarm for damage
-
S.S. UV chamber AISI 316L
-
IN / OUT 2" GAS BSP
-
IP protection class IP20
-
Dimensions 104 x 16cm
UV-WATER-4/90H / 4 X 90W LIGHTING MATERIALS
Disinfection of well, cistern or spring water / flow rate: 24'000 L/h
UV-C disinfection reactor for disinfection of well water, cistern water or spring water for flow rates up to 24'000 liters of water per hour.
Performance data:
-
Treated water flow rate: 24'000 L/h (6.6 L/s)
-
Power supply: 220/240V-50/60Hz
-
Total power: 360 W (HO) (4 lamps)
-
Faulty lamp alarm
-
Exhausted lamp alarm
-
Remote alarm for damage
-
S.S. UV chamber AISI 316L
-
IN / OUT 2" GAS BSP
-
IP protection class IP20
-
Dimensions 104 x 16cm
RELIABLE WATER PURIFICATION FOR EXISTING SYSTEMS: OEM MODULES.
WE RECOMMEND THE FOLLOWING PRODUCTS FROM OUR ASSORTMENT:

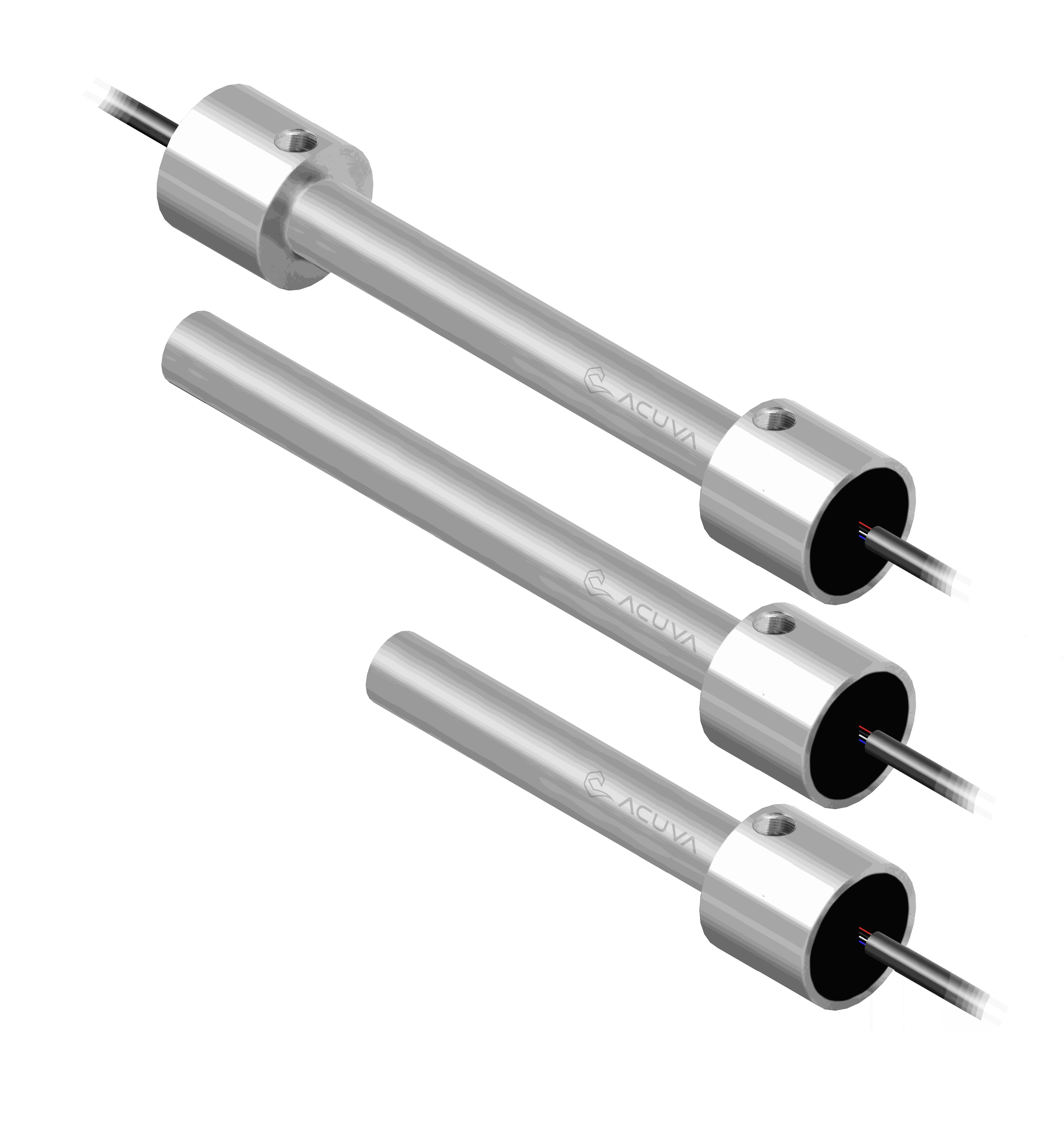

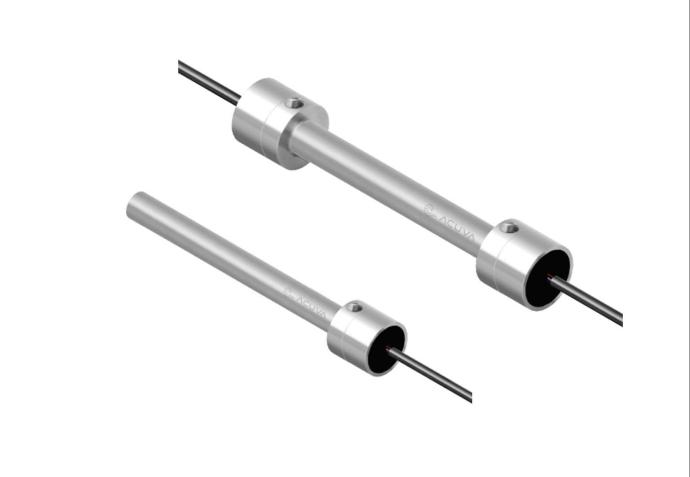

Strike I
Single UV-C LED configuration - for up to 3 liters flow rate per minute!
The Strike platform with high-power UV LED modules features patented IntenseBeam technology, which enables efficient disinfection and sterilization of drinking water for PoU applications and OEM integrations. The patented direct cooling technology requires no moving parts or separate heat sink. Strike features a compact, advanced design with the smallest possible form factor and is ideal for integration into your existing equipment.
Strike II
Double UV-C LED configuration - for up to 6 liters flow rate per minute!
The Strike platform with high-power UV LED modules features patented IntenseBeam technology, which enables efficient disinfection and sterilization of drinking water for PoU applications and OEM integrations. The patented direct cooling technology requires no moving parts or separate heat sink. Strike features a compact, advanced design with the smallest possible form factor and is ideal for integration into your existing equipment.
