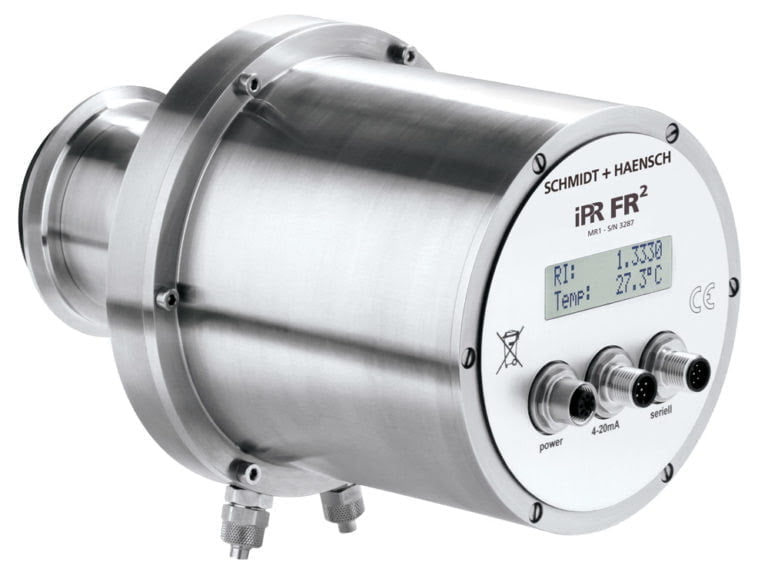

iPR FR2 in-line and process refractometer
Article Number10970
Unit of MeasurePiece
Scales Refractive index (RI), sucrose (% Brix), Standard scales included, freely definable scales Refractive index (RI), sucrose (% Brix), USG
Measuring range 1 Brix; 1.32000 - 1.53000 RI / 0% - 100% Brix
Measuring range 2 Brix; 1.42000 - 1.60000 RI / 50% - 100% Brix
Resolution 0.00001 RI / 0.01% Brix
Accuracy ± 0.00007 RI* / ± 0.05 Brix at 25°C
Ambient temperature - 10 °C to + 45 °C
Temperature measurement NTC sensor for measuring the temperature inside the prism
2 shielded analogue connections 4-20mA
2 digital connections (up to 1A)
1 serial port (RS232) as alternative RS485 or USB
24 V DC power supply
Sapphire prism
Light source/ wavelength LED, interference filter 589 nm
Process pressure (145psi, 10bar) optionally expandable up to 30 bar
Contact material to the measured material Sapphire, stainless steel optionally also Hastelloy
Process connections Varivent (Tuchenhagen), APV or TriClamp
Continuous concentration measurement in real time
Wide measuring range and wide range of applications
User-defined scales programmable
Simple and certified calibration
Suitable for harsh conditions and aggressive chemicals, sample temperatures up to 150 °C
Compliance with food and beverage regulations and standards
Cleaning In Place (CIP) with liquid or ultrasonic cleaning device
The iPR FR2 provides laboratory-quality industrial measurements for a range of industries, including food and beverage, chemical, pharmaceutical, medical and packaging.
Applications include condensate measurement, packaging disinfectant control, pharmaceutical purity control, liquid-liquid extraction and more.
