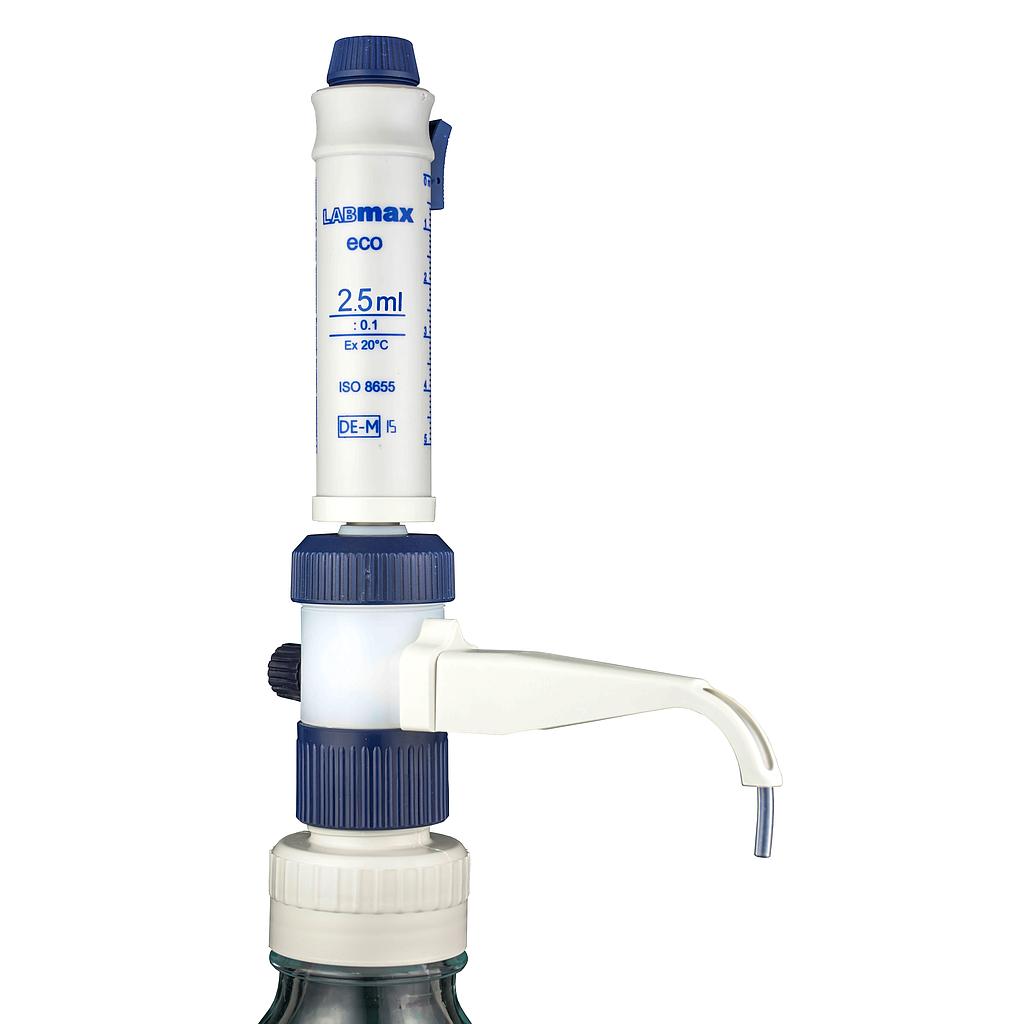

Bottle-Top Dispenser LABMAX eco,
volume range: 0.25 - 2.5 ml,
subdivision: 0.05 ml,
tolerance: ±0.012 ml,
deviation: 0.002 ml,
thread size: GL32

Dispensing with LABMAX eco is both economic and environmental friendly. This standard-dispenser is usable for nearly all applications of dispensing liquids in the lab and is especially ECOnomically priced. Use the “recycling mode” for an ECOlogical air-purging and draining without any loss of reagent!
Your advantage at a glance:

high quality precision instrument, made in Germany
all-purpose dispenser, universal chemical compatibility
highest accuracy and precision, our error ranges are better than the DIN EN ISO 8655-5 requirements
most affordable price in its class
direct displacement piston system, ideal for crystalline solutions
robust and stable, made of high quality materials e.g. platinum springs
0% loss of reagent by pumping in a closed circuit
100% drip-free due to our unique anti-drip system
360° rotatable valve block for added safety
one handed operation
flexible by using different bottle adapters
easy to clean, completely autoclavable at 121°C
250ml dispenser available
individual certificate and serial number
DE-M marked according to the German calibration law

Features

Quick and precise volume settingAdjusting the volume of LABMAX eco is very simple: Just push the quick-adjust knob – slide to the desired volume– release – that’s all!

Perfect air-purging mechanism for 0% reagent lossTurn the discharge tube at 90°. Remove (purge) trapped air without reagent loss by pumping in a closed circuit: The reagent flows back into the bottle! After pumping 2 - 3 times the dispenser is free of air and ready to use. This special feature helps not only to save residual reagent but also when accidentally setting the wrong volume!

100% drip-free system for your safetyBy turning the discharge tube at 180° all liquid flows back into the bottle. LABMAX eco is completely closed and no accidental discharge can occur by inadvertently moving the piston. There is absolutely no dripping possible!

360°-turn for your added safetyNo matter how much you tighten LABMAX eco, you can always redirect the discharge tube by simply turning the valve block to the desired position. This way the label of the bottle is always visible. This feature works for all our adapters. Adapters for different bottle threads can remain on the bottle.

The components having direct contact with the reagent are made of chemical resistant materials: platinum spring, ceramic valve balls, PTFE piston, borosilicate glass 3.3 cylinder, borosilicate glass 3.3 valve

Thread
GL32

Systematic errors ISO
±0.012 ml

Numeric division
0.05 ml

Random errors ISO
≤0.002 ml

Volume
0.25 - 2.5 ml

Volume adjustment
Adjustment knob
