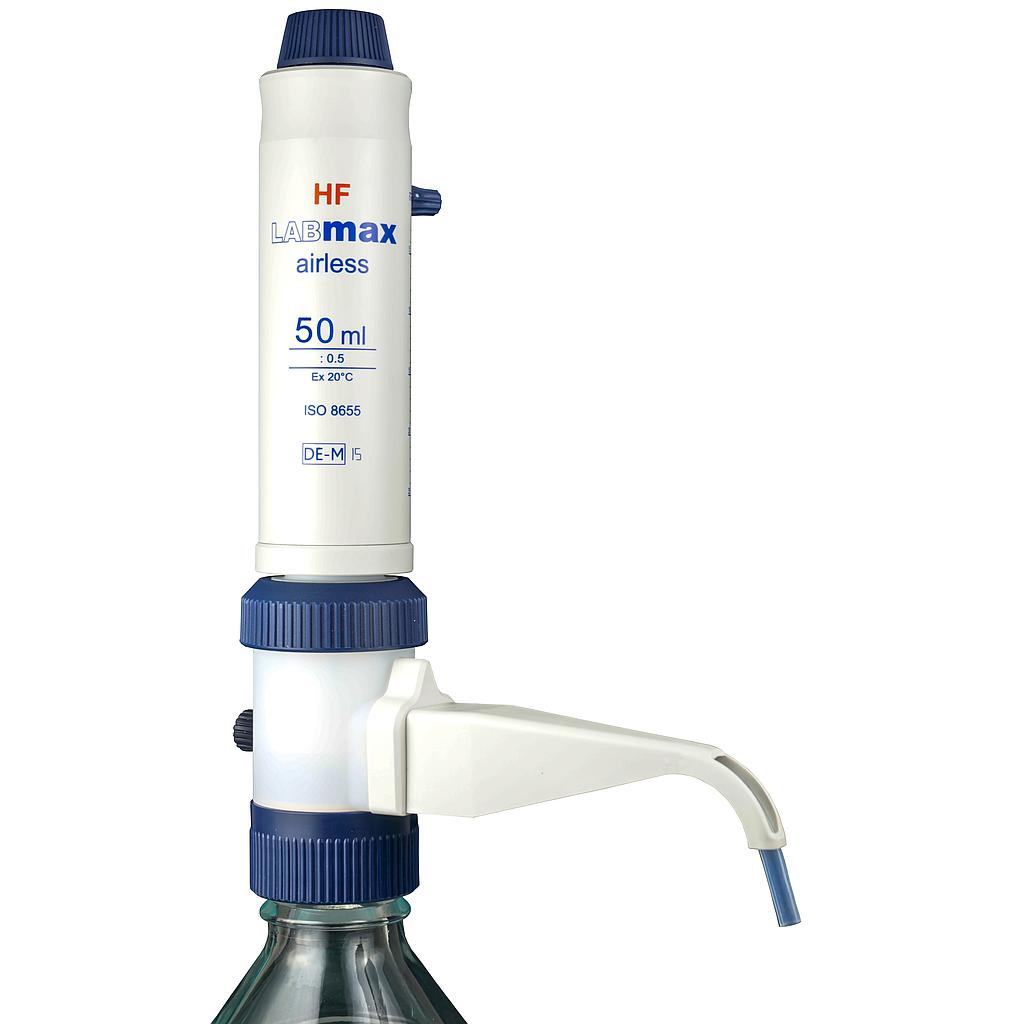

Bottle-top dispenser Labmax airless HF, 5.0-50.0ml

5 370 825

Piece

Bottletop dispenser LABMAX Airless HF,
volume range: 5.0 - 50.0 ml,
subdivision: 1.00 ml,
accuracy: 0.30 ml,
deviation: 0.050 ml,
thread size: GL45

LABMAX airless HF is a special dispenser for hydrofluoric acid (HF). The components which have direct contact with the acid are made of HF-resistant materials. LABMAX airless HF is equipped with an automatic air-purging system: Your dispenser is ready to use after no more than two dosings.

Your advantage at a glance:

high quality precision instrument, made in Germany
special dispenser, ideal for hydrofluoric acid
highest accuracy and precision, our error ranges are better than the DIN EN ISO 8655-5 requirements
robust and stable, made of high quality materials e.g. platinum spring, ruby valve balls, sapphire valve, PTFE
100% drip-free due to our unique anti-drip system
360° rotatable valve block for added safety
one handed operation
flexible by using different bottle adapters
easy to clean, completely autoclavable at 121°C
individual certificate and serial number
DE-M marked according to the German calibration law

Features

360°-turn for your added safetyNo matter how much you tighten LABMAX airless HF, you can always redirect the discharge tube by simply turning the valve block to the desired position. This way the label of the bottle is always visible. This feature works for all our adapters. Adapters for different bottle threads can stay on the bottle!

100% drip-free system for your safetyBy turning the discharge tube at 180° all liquid flows back into the bottle. LABMAX airless HF is completely closed and no accidental discharge can occur by inadvertently moving the piston. There is absolutely no dripping possible!

Automatic air-purgingTo ensure accurate volume it is necessary that the device is free from air before dispensing. All LABMAX airless HF models have an automatic air purging system. Air, lighter than liquid, passes off the device automatically through the special ejection channel and discharge tube. A contamination of the bottle content is not possible.

The components having direct contact with the reagent are made of chemical resistant materials: platinum spring, ceramic valve balls, PTFE piston, borosilicate glass 3.3 cylinder, borosilicate glass 3.3 valve

Thread
GL45

Systematic errors ISO
±0.3 ml

Numeric division
1 ml

Random errors ISO
≤0.05 ml

Volume
5.0 - 50.0 ml

Volume adjustment
Adjustment screw
