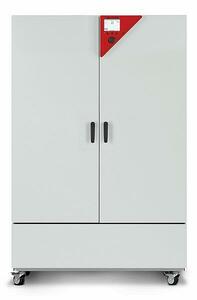

Binder Cooling Incubator KB 720
Article Number9020-0204
Unit of MeasurePiece
-Temperature range: -10 °C to 100 °C
- Outside dimensions W 1250 x H 1925 x D 885 mm
- Inner dimensions W 970 x H 1250 x D 576 mm
- Inner volume 720 L
-APT.line™ preheating chamber technology
-Up to 30% lower energy consumption compared to the previous model
-Cooling with compressor cooling unit
-Controller with time-segment and real-time programming
-Computer interface: Ethernet
-Inner door made of tempered safety glass
-2 stainless steel racks
-4 stable castors, two with brakes
-Access port with silicone plug, 30 mm, left
-Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Series KB | Cooling incubators with compressor technology
The powerful virtuoso in cooling incubators for microorganisms: the KB masters temperature ranges from -10 °C to 100 °C. The new KB series consumes up to 30% less energy compared to its predecessor. With its extensive programming options and homogenous incubation conditions even when fully loaded, this cooling incubator covers a wide range of applications.
Important characteristics
Temperature range: -10 °C to +100 °C
APT.line™ preheating chamber technology
Up to 30% lower energy consumption compared to the previous model
Cooling with compressor cooling unit
Door heating
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
4 casters, two with locking brakes
Access port with silicone plug, 30 mm, left
Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Computer interface: Ethernet
Performance Data Temperature
Recovery time after 30 seconds door open at 37 °C [min] 3
Temperature fluctuation at 37 °C [± K] 0.1
Temperature range -10…100 -
Temperature range °C -10…100
Temperature variation at 37 °C [± K] 0.2
Electrical data
Nominal power [kW] 2.3
Phase (Nominal voltage) 1~
Power frequency [Hz] 50/60
Rated Voltage [V] 200…240
Unit fuse [A] 16
Doors
Inner doors 2
Unit doors 2

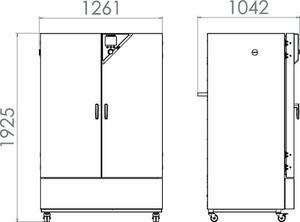

Housing dimensions not incl. fittings and connections
Depth net [mm] 885
Height net [mm] 1925
Width net [mm] 1250
Internal Dimensions
Depth [mm] 576
Height [mm] 1250
Width [mm] 970
Measures
Interior volume [L] 698
Load per rack [kg] 45
Net weight of the unit (empty) [kg] 309
Permitted load [kg] 150
Wall clearance back [mm] 100
Wall clearance sidewise [mm] 100
Environment-specific data
Energy consumption at 37 °C [Wh/h] 360
Sound-pressure level [dB(A)] 53
Fixtures
Number of shelves (std./max.) 2/15
