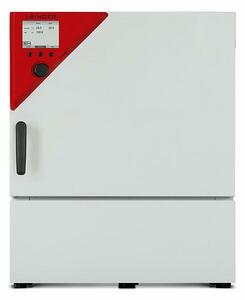

Binder Cooling Incubator KB 115
Article Number9020-0397
Unit of MeasurePiece
-Temperature range: -10°C to 100 °C

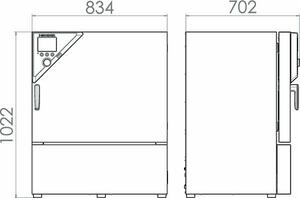

- Outside dimensions W 835 x H 1025 x D 650 mm
- Inner dimensions W 600 x H 480 x D 400 mm
-Inner Volume 115 L
-APT.line™ preheating chamber technology
-Up to 30% lower energy consumption compared to the previous model
-Cooling with compressor cooling unit
-Controller with time-segment and real-time programming
-Computer interface: Ethernet

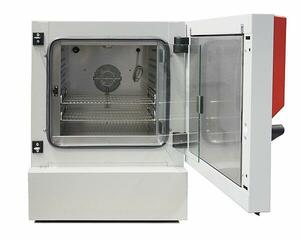

-Inner door made of tempered safety glass
-2 stainless steel racks
-4 stable castors, two with brakes
-Access port with silicone plug, 30 mm, left
-Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Benefits
Safe, reproducible incubation, even at high ambient temperatures
Disinfection routine at +100 °C
Up to 30% lower energy consumption compared to the previous model
Important characteristics
Temperature range: -10 °C to +100 °C
APT.line™ preheating chamber technology
Up to 30% lower energy consumption compared to the previous model
Cooling with compressor cooling unit
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
Computer interface: Ethernet
Performance Data Temperature
Recovery time after 30 seconds door open at 37 °C [min] 2 2
Temperature fluctuation at 37 °C [± K] 0.1 0.1
Temperature range [°C] -5…100 -5…100
Temperature variation at 37 °C [± K] 0.2 0.2
Housing dimensions not incl. fittings and connections
Depth net [mm] 800 800
Height net [mm] 1465 1465
Width net [mm] 925 925
Internal Dimensions
Depth [mm] 485 485
Height [mm] 785 785
Width [mm] 650 650
Measures
Interior volume [L] 247 247
Load per rack [kg] 30 30
Net weight of the unit (empty) [kg] 171 171
permitted load [kg] 100 100
