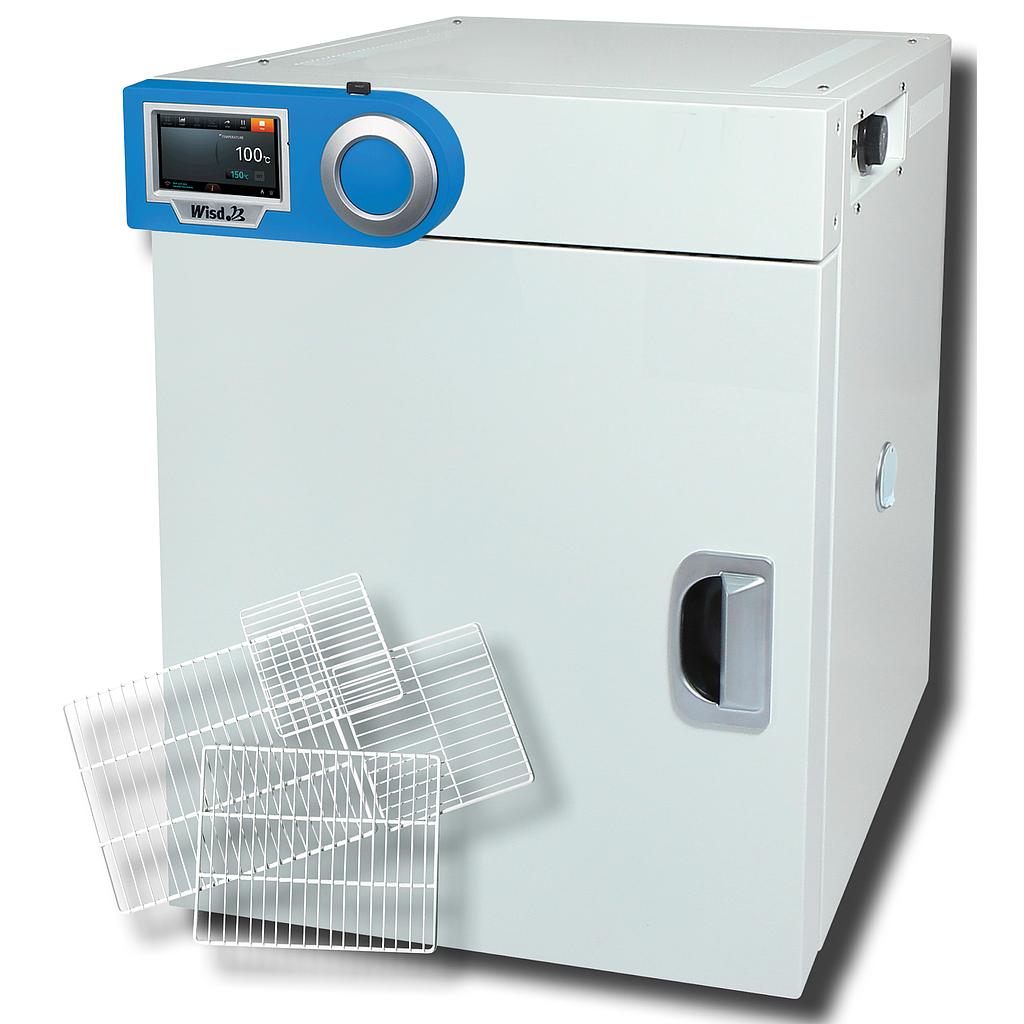

Incubators SWIG gravity-air SmartLab 32 Liter 70°C

DH.SWIG03032

Piece

Incubator, type SWIG-32,
capacity: 32 Liter,
with Smart-Lab Controller, 4" Full Touch Screen,
Timer: 99 hr/59 min.,
temperature range: ambient +5°C - 70°C,
circulation: gravity convection,
internal dimension: 310 x 290 x 360 mm,
external: 458 x 477 x 662 mm,
heater power: 150 W,
incl. 2 PTFE-coated steel wire shelves,
power supply: 230 V, 50/60 Hz

Ideal for:

microorganism culture, animal and plant cell culture, constant temperature, germination, etc.

Features:

gravity-air flow by natural flow preventing cross contamination of samples
temperature uniformity and accuracy by high performance 3-sided heating mechanism
2x PE-coated steel wire shelves included
corrosion resistant stainless steel chamber, powder-coated body
inner tempered glass door with silicone packing offers easy observation without door opening
ambient to 70°C of temperature range, fluctuation of ±0.2°Cat 37°C, ±0.3°C at 50°C
storage function for the set values of temperature and timer
alarm function: error status and timer end
backlight LCD display
CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection

Controller:

Smart-Lab™ controller with 4? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi

Features

SMART-LabTM Controller

full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnosis and interactive temperature graph
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Gravity-air:The incubators gravity-air flow is established by creating radiant and conductive heat on three sides of the chamber (bottom, left and right side).

Version
with Smart-LabTM controller

Width (Outer)
458 mm

Height (outer)
624 mm

Length (outer)
477 mm

Heating time
25 min. to 37°C, 40 min. to 50°C

Width (inner)
312 mm

Shelves
2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf)

Weight
32 kg

Weight with packaging
39 kg

Heating power
150 W

Height (inner)
360 mm

Capacity
32 l

Length (inner)
290 mm

Hole diameter
Inner Ø35 mm

Holes
1 ventilation hole with stainless steel cap

Power consumption
159 W

Temperature variation
±0.6°C at 37°C, ±1.0°C at 50°C

Temperature control resolution
Control ±0.1°C

Temperature range
Room temperature +5°C - 70°C

Temperature fluctuation
±0.2°C at 37°C, ±0.3°C at 50°C

Packing size
568 x 592 x 698 mm

Recovery time
8 min. to 37°C, 12 min. to 50°C

Sensor
Temperature sensor PT100
