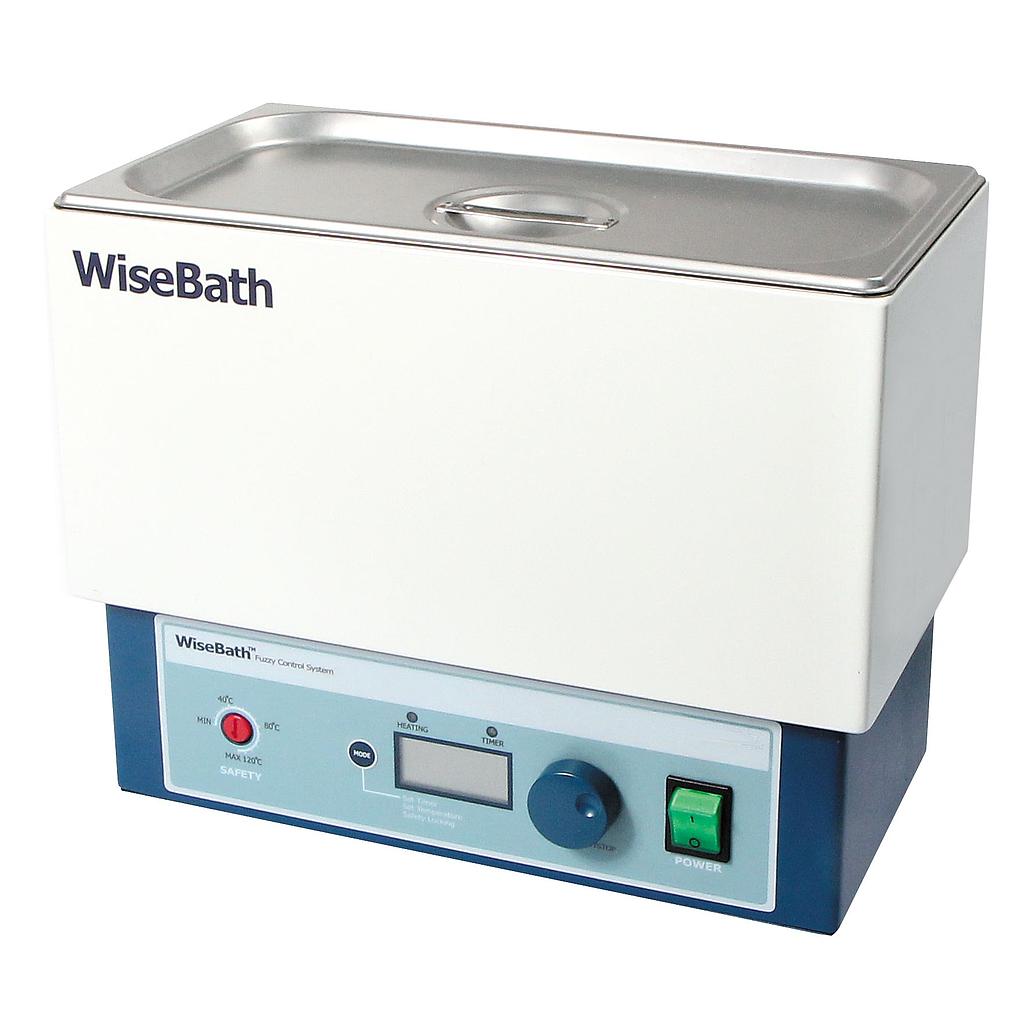

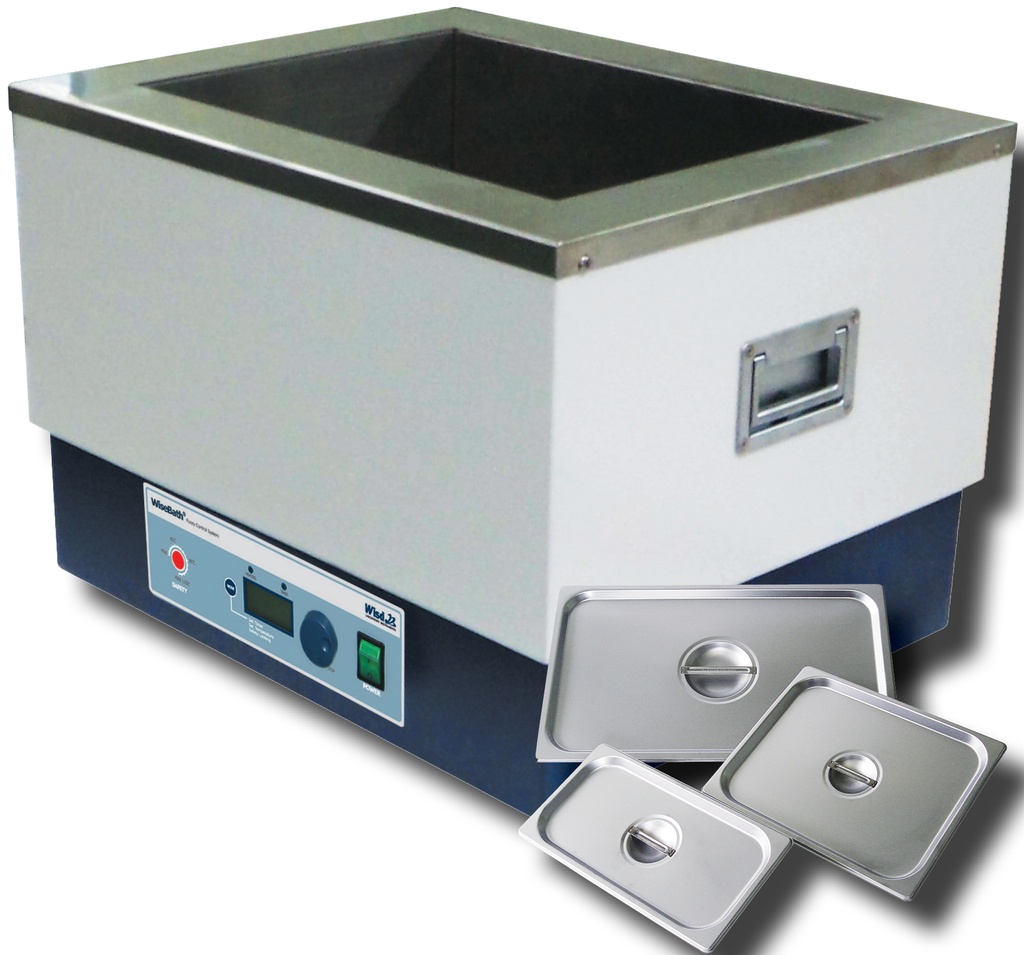

Baths WB Water bath 22 Liter 100°C ±0,1°C

DH.WB000122

Piece

Water bath, type WB-22,
digital,
capacity: 22 L,
heater: 2 kW,
temp. range: ambient +5 - 100°C,
digital fuzzy control system,
Timer: 99 hr. / 59 min.,
bath effective space: 500 x 295 x 110 mm,
external dim.: 535 x 330 x 260 mm,
complete with stainless steel flat lid,
power supply: 230 V, 50/60 HZ

Ideal for:

water bath for general purpose

Features:

user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
stainless steel bath & lid for superior durability & high thermal efficiency / consistency, dome lid optional
digital timer function (99hr 59min): delay time and operation time can be controlled
storage function for the set values of temperature and timer
backlight LCD display
CE-certified and unique serial number for tracing

Safety mechanism:

locking mode
over- temperature and over-current protection
sensor error protection

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
535 mm

Height (outer)
260 mm

Length (outer)
330 mm

Drain valve
mounted (Ø9.5 - 11mm)

Width (inner)
500 mm

Weight with packaging
14 kg

Height (inner)
150 mm

Capacity
22 l

Length (inner)
295 mm

Effective space
500 x 295 x 110 mm

Power consumption
2000 W

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±1.0°C

Temperature accuracy
±0.1°C

Packing size
570 x 360 x 310 mm

Sensor
Temperature sensor PT100
