Baths WCB-H Circulation head 22 Liter 100°C ±0,1°C

DH.WCB10022

Piece

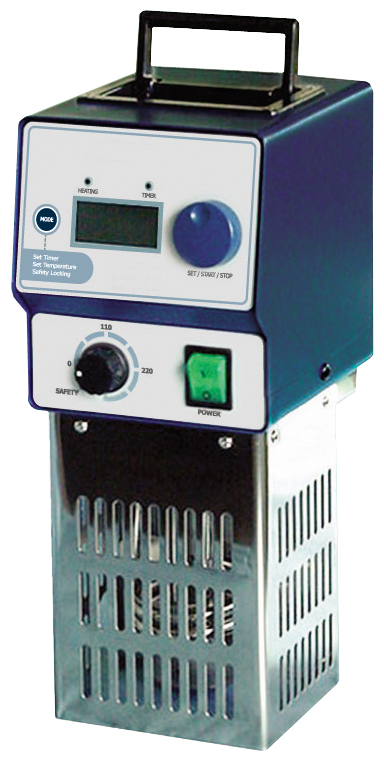

Immersion circulator head WCB-22H,
digital, cap.: 22 Liter,
temp. range: ambient: +5°C-100°C,
with digital fuzzy control system,
LCD display, timer: 99 hr. / 59 min.,
130 x 165 x 320 cm,
pump: 5 l/min.,
heater: 2 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

multi-use digital precise immersion circulator head

Features:

user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
digital timer function (99hr 59min): delay time and operation time can be controlled
powerful circulation pump assures temperature uniformity
storage function for the set values of temperature and timer
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

locking mode
over- temperature and over-current protection
sensor error detection
low water level warning and automatic stop function

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
130 mm

Height (outer)
320 mm

Length (outer)
165 mm

Weight with packaging
8 kg

Capacity
11 l

Pump performance
5 l/min

Power consumption
1000 W

Temperature range
Room temperature +5°C - 100°C

Temperature accuracy
±0.1°C

Packing size
400 x 280 x 200 mm

Sensor
Temperature sensor PT100
