Baths WCH Circulation water bath 8 Liter 250°C ±0,1°C

DH.WCH00408

Piece

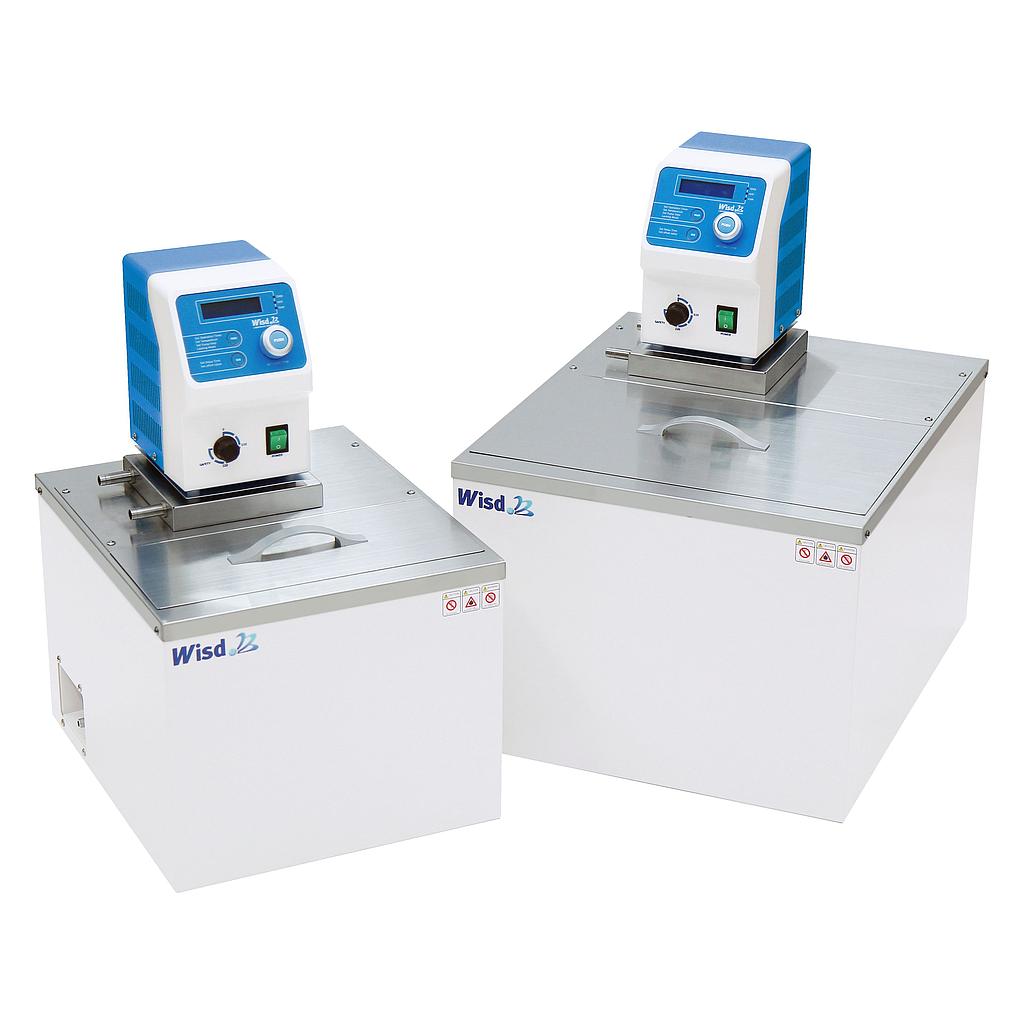

High Temperature Bath Circulator WCH-8,
capacity: 8 Liter,
with digital fuzzy control & digital LCD- back light system,
Temp. range: ambient +5°C - 250°C,
bath effective space: 180 x 130 x 155 mm,
pump: 16 L/min.,
timer: 99 hr. / 59 min.,
incl. stainless steel cover,
heater: 1,0 kW,
power supply: 230 V, 50/60 Hz

Ideal for:

applications at high temperature
biotechnology, clinical, environmental, medical, petroleum & food industry, pharmaceutical and industrial applications
connection with evaporators and viscometers is applicable

Features:

corrosion resistant stainless steel bath with 1.2 mm thickness
ceramic fibre insulator of 50 mm thickness and powder-coated steel body
user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
digital timer function (99hr 59min): delay time and operation time can be controlled
drain valve mounted and stainless steel flat lid included
storage function for the set values of temperature and timer
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection
locking mode

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Width (Outer)
303 mm

Height (outer)
569 mm

Length (outer)
443 mm

Connections

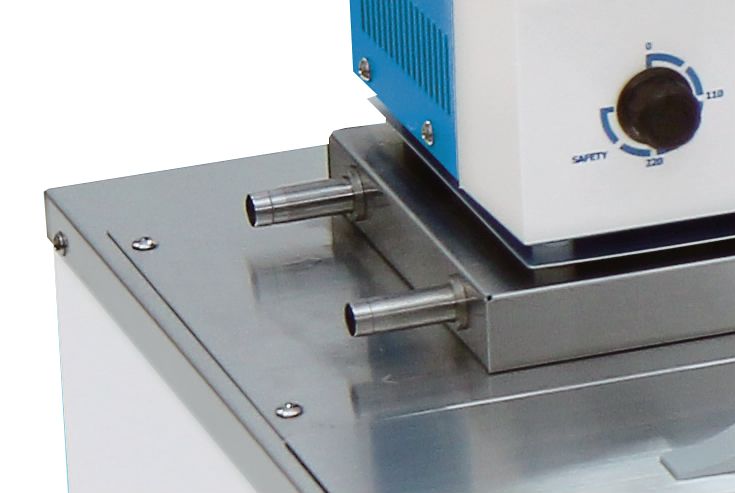

Circulation nozzle inner Ø7 x outer Ø11mm ( IØ 9 / OØ 12 mm silicon tube connection for inner circulation)

Width (inner)
180 mm

Pressure
5 psi

Weight with packaging
19 kg

Height (inner)
155 mm

Capacity
8 l

Length (inner)
320 mm

Effective space
180 x 130 x 155 mm

Pump performance
16 l/min, max. lift: 2.8m

Power consumption
1000 W

Temperature control resolution
Display 0.1°C, control 0.5°C

Temperature range
Room temperature +5°C - 250°C

Temperature fluctuation
±0.2°C

Temperature accuracy
±0.1°C

Packing size
470 x 400 x 500 mm

Sensor
Temperature sensor PT100

Flow rate
16l/Min.
