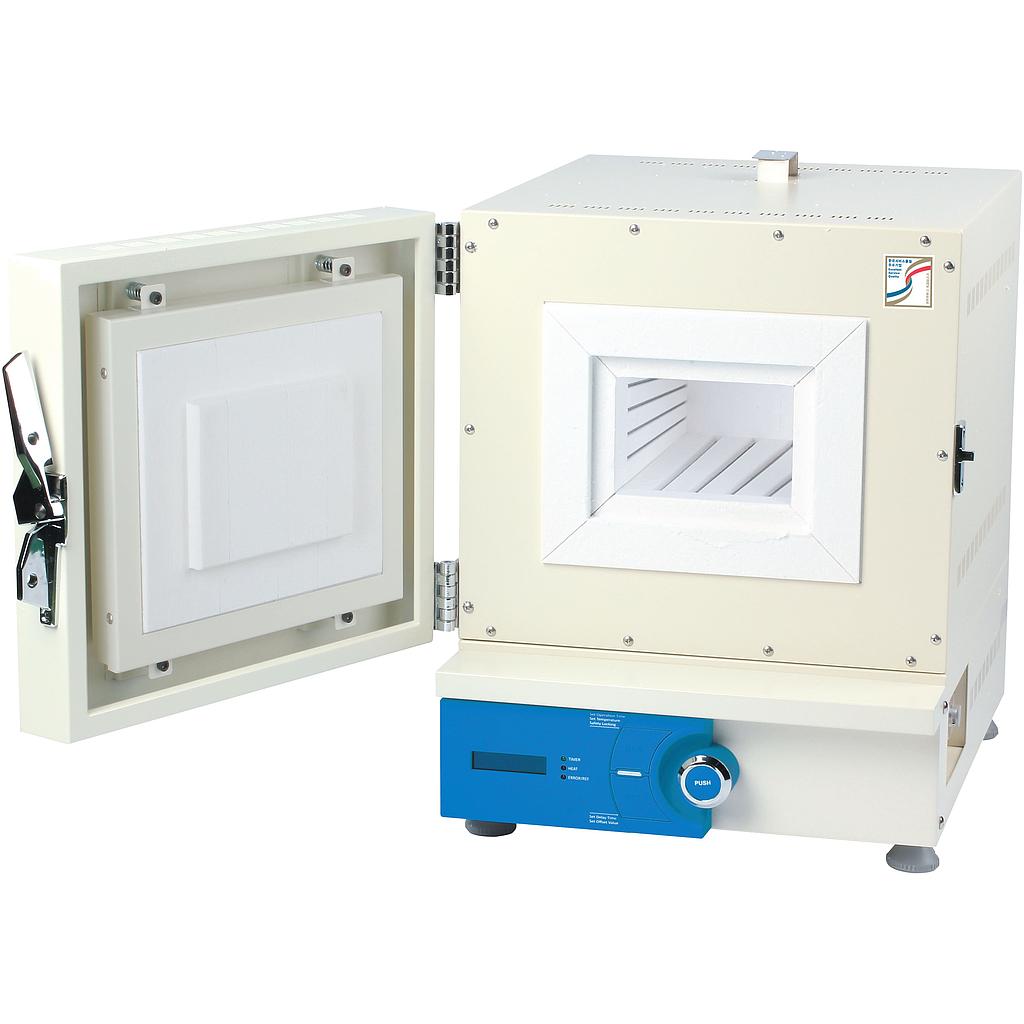

Muffel furnace FHP muffle furnace 3 Liter 1200°C

DH.WFH22.P03

Piece

Programmable Digital Muffle Furnace,
Type FHP-03,
with 4-side heating & program digital PID control system,
temperature range: 300° - 1200°C,
capacity: 3 Liter, internal: 130 x 250 x 90 mm,
external: 390 x 480 x 530 mm,
power: 1,4 kW,
power supply: 230 V, 50/60 Hz,

*** open door safety switch included ***

Ideal for:

ash-determinations, enameling, fusions, precipitate drying

Features:

user‘s self-compensation function for temperature (±50.0°C)
resolution: 1°C, 1 min

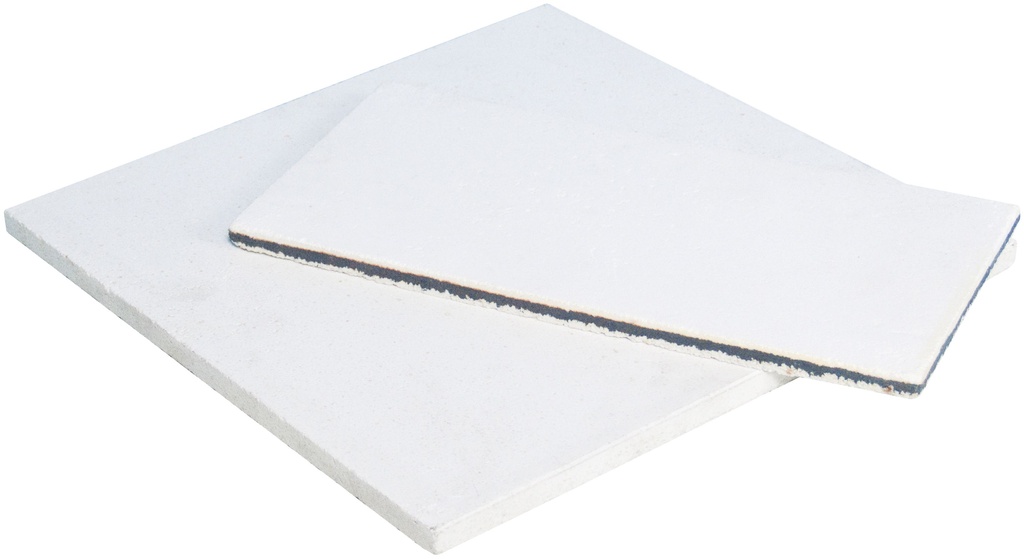

ceramic fibre plate included

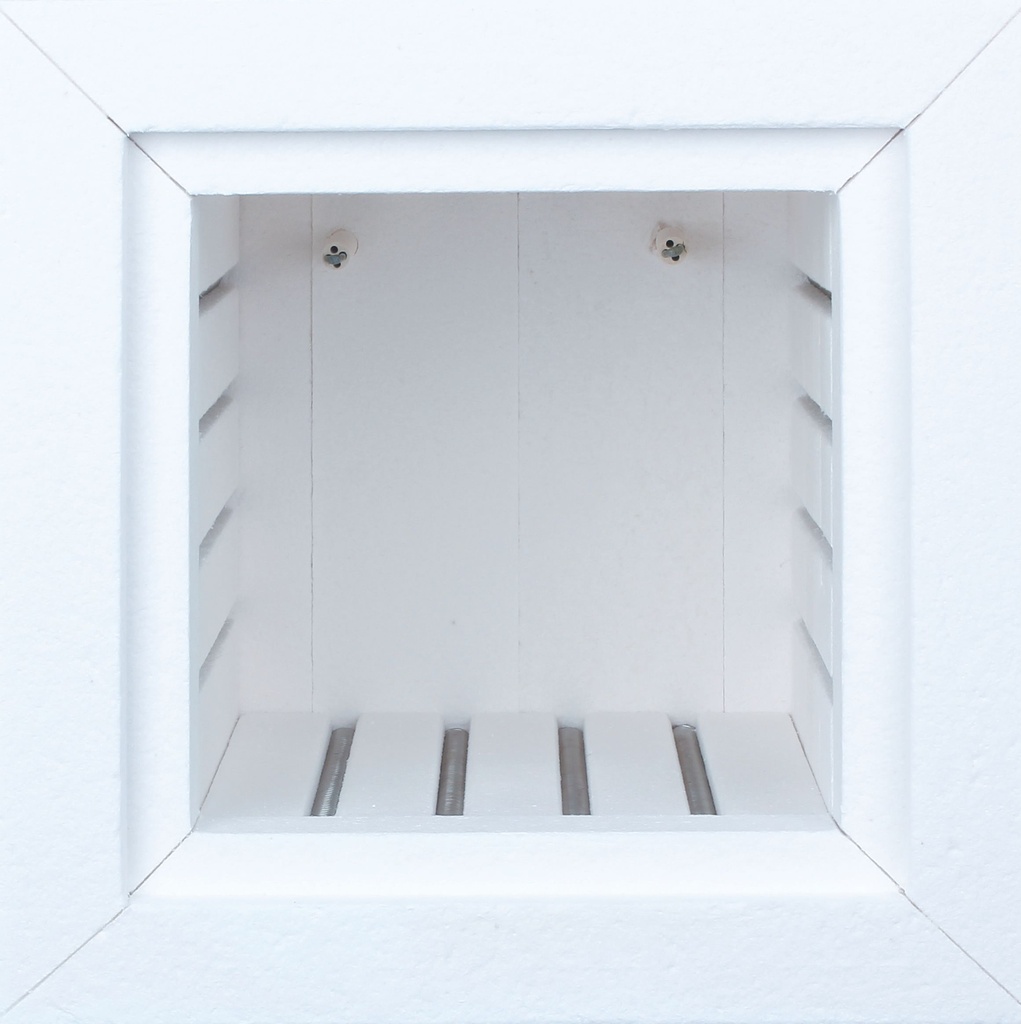

powder-coated steel body, ceramic fibre insulation, ceramic fibre exposed heating wire interior with 4-sided heating
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

safety switch for door opening
overheat and over-current protection
sensor error detection

Controller:

Jog-Dial controller (PID) with 2-way knob (turn + push), digital LCD with backlight, and two durable setting buttons
programmable: 4 patterns with 10 segments

Width (Outer)
410 mm

Height (outer)
530 mm

Length (outer)
480 mm

Ideal for
Ash-determinations, enameling, fusions, precipitate drying

Heating time
16 min. to 800°C

Width (inner)
130 mm

Weight with packaging
47 kg

Heating power
1400 W

Height (inner)
90 mm

Capacity
3 l

Length (inner)
250 mm

Temperature range
300°C - 1200°C

Thermocouple
K-type thermocouple

Packing size
630 x 540 x 770 mm

Accessories
Heater: Kanthal A1, expose wire heating elements, 4-side heating
