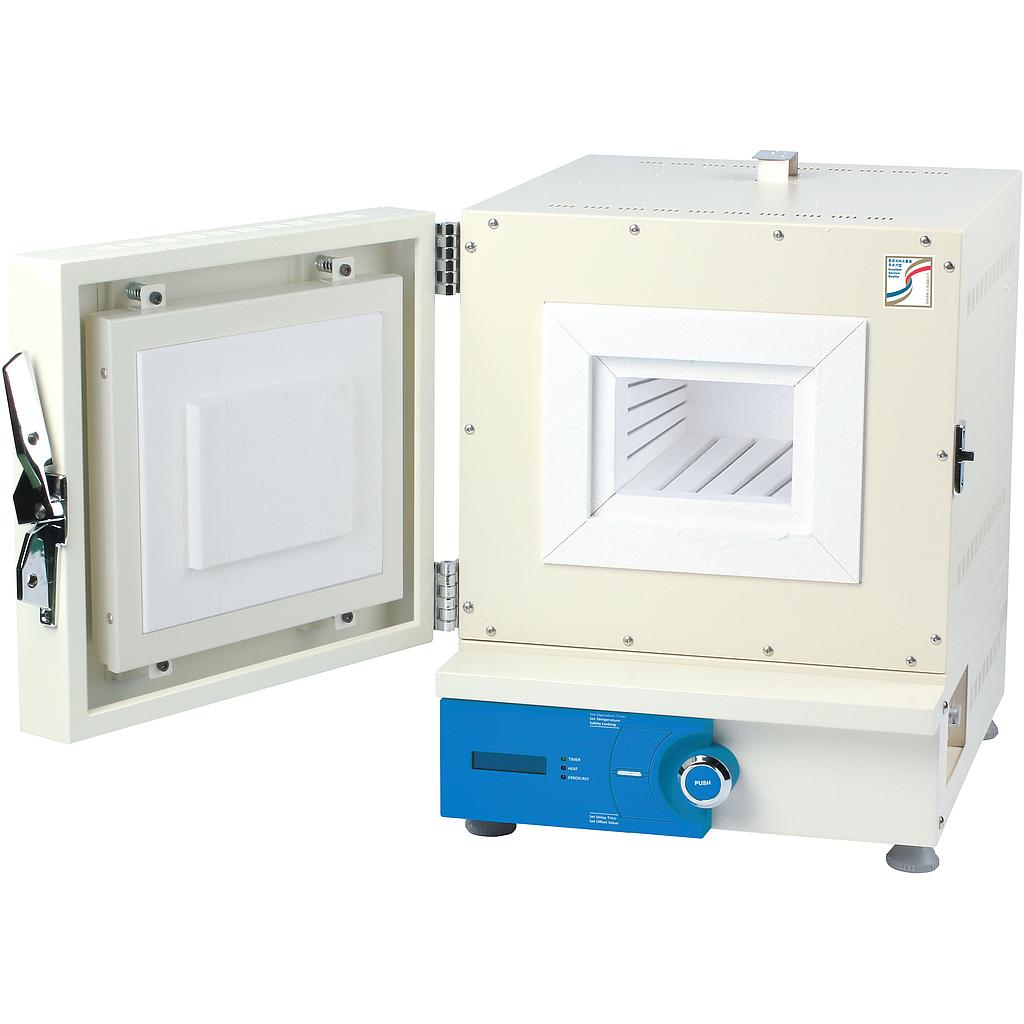

Muffel furnace FHP muffle furnace 12 Liter 1200°C

DH.WFH23.P12

Piece

Programmable Digital Muffle Furnace,
Type FHP-12,
with 4-side heating & program digital PID control system,
temperature range: 300° - 1200°C,
capacity: 12 Liter,
internal: 200 x 300 x 200 mm,
external: 480 x 550 x 660 mm,
power: 3,6 kW,
power supply: 400 V, 50/60 Hz,
power plug 3 phase, 16A CEE

*** open door safety switch included ***

Ideal for:

ash-determinations, enameling, fusions, precipitate drying

Features:

user‘s self-compensation function for temperature (±50.0°C)
resolution: 1°C, 1 min

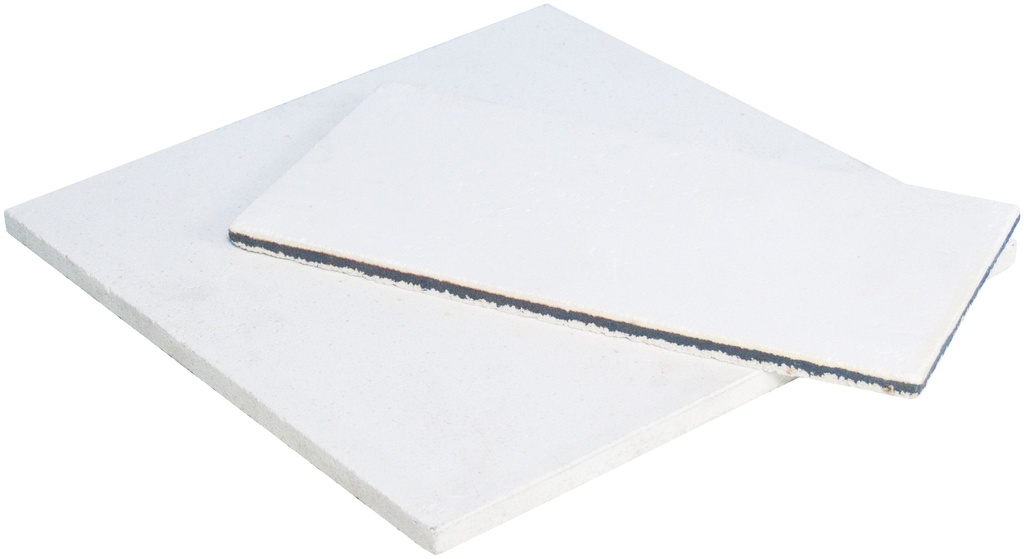

ceramic fibre plate included

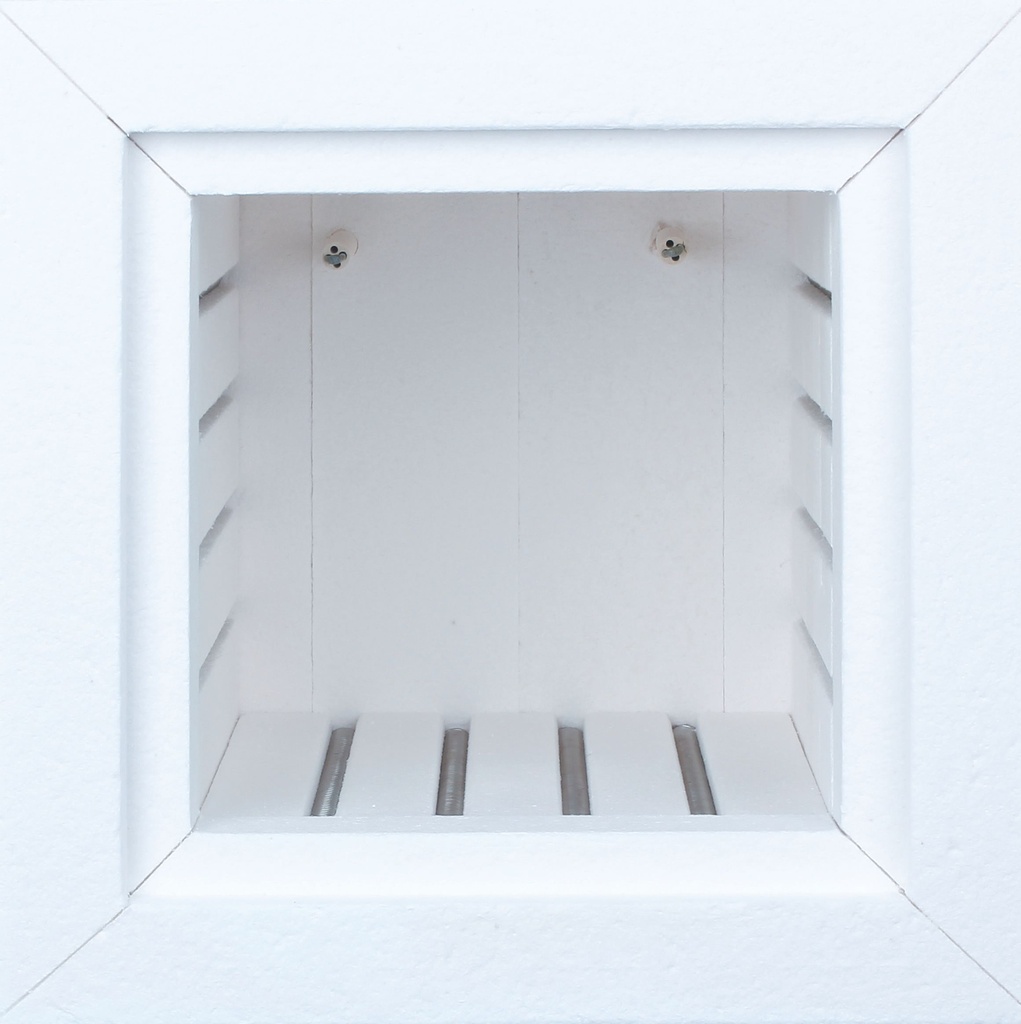

powder-coated steel body, ceramic fibre insulation, ceramic fibre exposed heating wire interior with 4-sided heating
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

safety switch for door opening
overheat and over-current protection
sensor error detection

Controller:

Jog-Dial controller (PID) with 2-way knob (turn + push), digital LCD with backlight, and two durable setting buttons
programmable: 4 patterns with 10 segments

Width (Outer)
500 mm

Height (outer)
660 mm

Length (outer)
550 mm

Ideal for
Ash-determinations, enameling, fusions, precipitate drying

Heating time
20 min. to 800°C

Width (inner)
200 mm

Weight with packaging
59 kg

Heating power
3600 W

Height (inner)
200 mm

Capacity
12 l

Length (inner)
300 mm

Temperature range
300°C - 1200°C

Thermocouple
K-type thermocouple

Packing size
700 x 630 x 890 mm

Accessories
Heater: Kanthal A1, expose wire heating elements, 4-side heating
