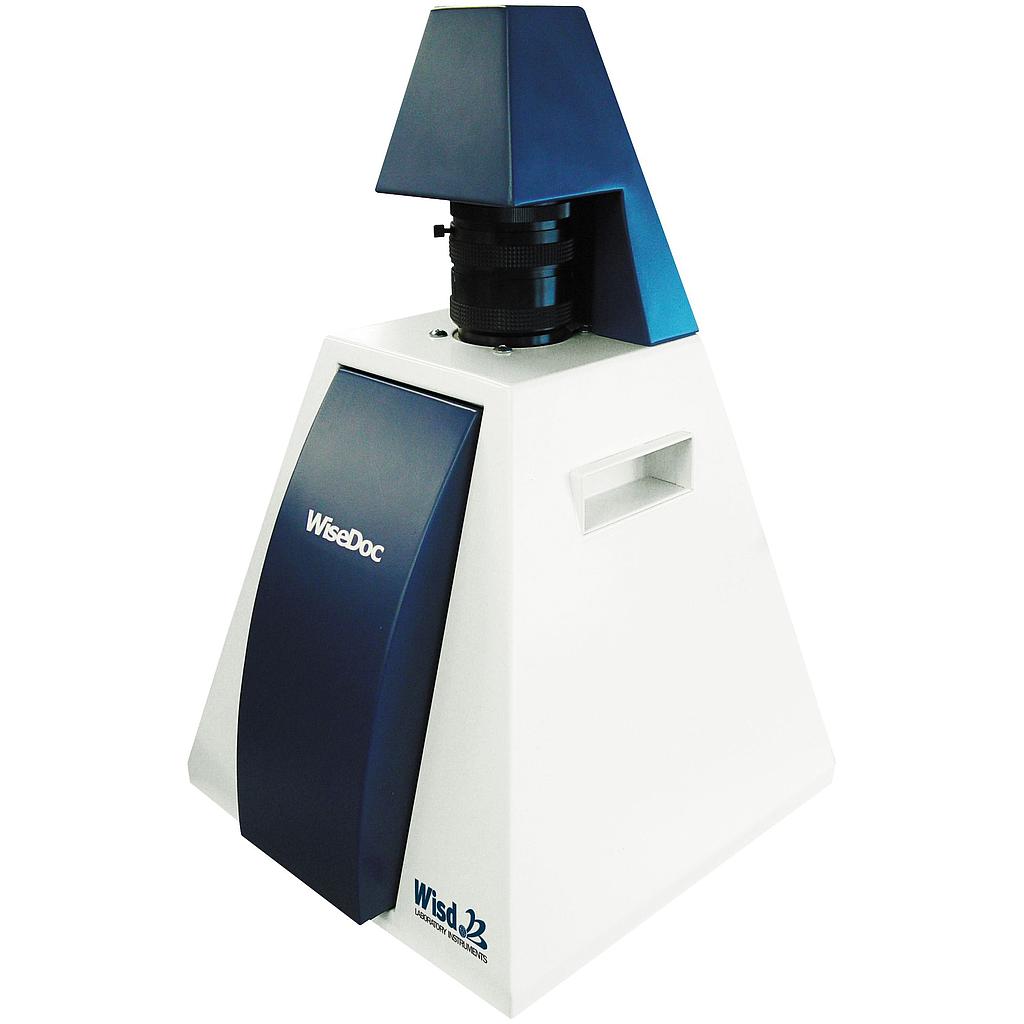

Gel documentation system WGD20S portable with camera and software
Article NumberDH.WGD00024
Unit of MeasurePiece
Gel Documentation System WGD-20S,
with a camera (1,5 Megapixel),
portable Darkroom and Software serial-no.
Ideal for:
DNA, RNA gel imaging capture and analysis
Features:
the most cost-effective system
high precise and large caliber optical lens with zoom, focus and iris control
digital CCD camera (resolution 1360x1024, 1.5 m pixel) with portable darkroom10-bit CCD, available for 8-bit grey level image capturing
very compact portable darkroom system for highest flexibility
existing transilluminator can be used
USB 2.0 interface for real-time images and data transfer
power supply via USB
WiseCapture II™ software: easy and fast view, capture and save gel images (included)
TotalLab™ Quant software (WGD-20S): fully automatic, single button press complete image analysis in interesting area
CE certified and unique serial number for tracing
Width (Outer)
260 mm
Height (outer)
430 mm
Length (outer)
260 mm
Ideal for
DNA, RNA gel imaging capture and analysis
Connections
USB 2.0
Weight
9 kg
Weight with packaging
18 kg
Temperature range
Operation temperature -10°C to +50°C
Packing size
400 x 350 x 510 mm
Sensor
1/2“ CCD
