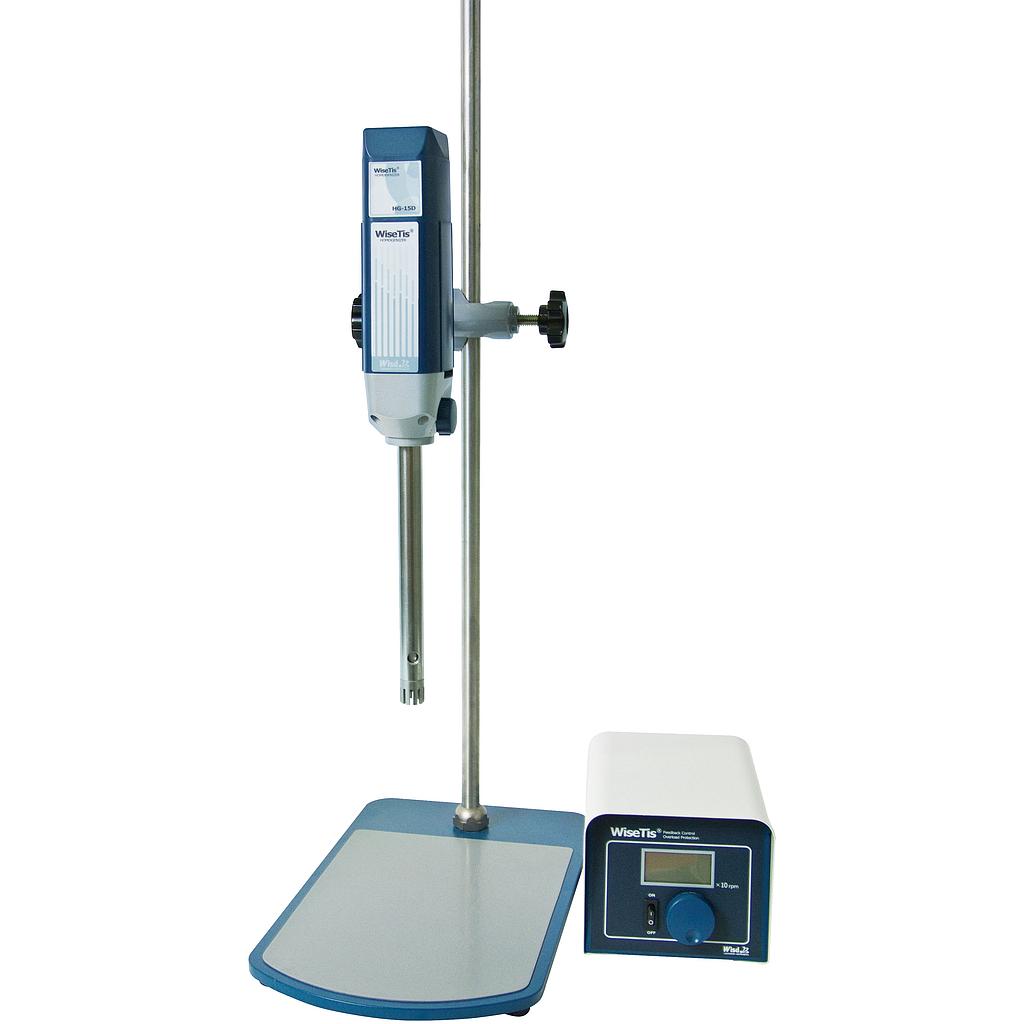

Homogenizer HG-15D SET-B 27000rpm digital external controller

DH.WHG02020

Piece

Homogenizer HG-15D-SET-B,
with microprocessor digital control,
working range: 1 - 2500 ml,
max. 27000 rpm,
motor rating: 300/160 W,
60 x 75 x 215 mm,
weight: 2,5 kg,
230 V, 50/60 Hz

additional supplied with:
dispersing tool HT1025, rotor Ø 20 mm stator Ø 25 mm,
working range: 50 - 2500 ml - clamp CL200, for rods up to 25 mm
standard plate stand ST110, plate 200 x 350 mm, rod 800 x 16 mm

Ideal for:

all disperging and homogenizing applications
designed for liquid and tissue samples

Features:

2,000 - 27,000 rpm
working range 1 - 2,500 ml
digital LCD display on remote controller
timer from 10 sec. up to 15 min.
CE certified and unique serial number for tracing

Safety mechanism:

timer-end alarm
locking mode
overload protection
overheat protection

Controller:

Jog-Shuttle remote controller with touch-button

Version
Set B

Width (Outer)
60 mm

Diameter (outer)
Extension arm size: Ø12.7

Height (outer)
215 mm

Length (outer)
75 mm

Material
ABS & aluminium die-casting

Ideal for
all disperging and homogenizing applications, designed for liquid and tissue samples

Controller
Digital, remote

Moisture range
85% RH

Speed
2000 - 27000 rpm, resolution: 10 rpm

Weight
2.5 kg

Weight with packaging
6 kg

Capacity
1 - 2500 ml

Length (inner)
Extension arm: 250 mm

Motor rating
Input: 300 W, output: 160 W

Temperature range
Ambient temperature +5 - 50°C

Packing size
580 x 340 x h230 mm
