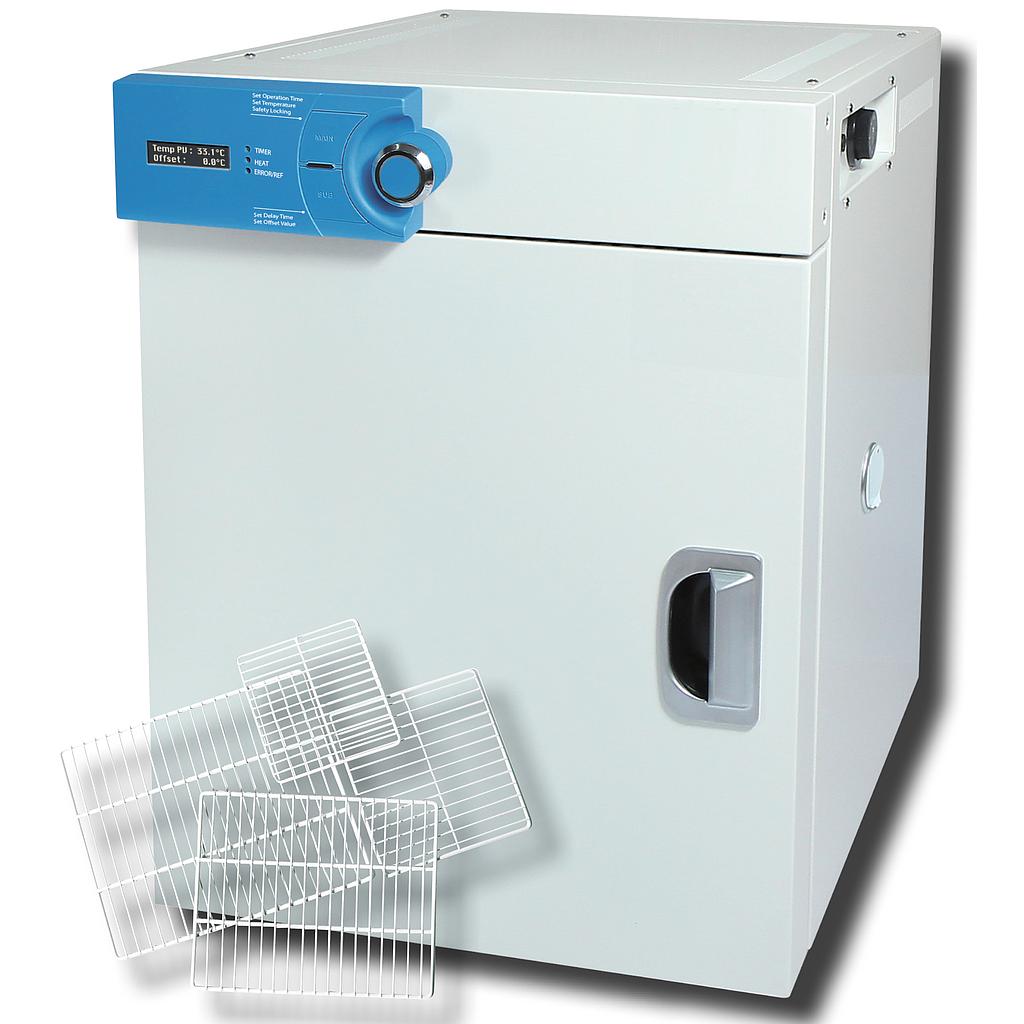

Incubators WIF-50 forced-air 50 Liter 70°C

DH.WIF03050

Piece

Digital Incubator, Type WIF-50,
capacity: 50 Liter,
with digital fuzzy control,
Timer: 99 hr/59 min.,
temperature range: ambient +5°C - 70°C,
circulation: forced-air type,
internal dim.: 370 x 350 x 419 mm,
external dim.: 518 x 637 x 700 mm,
heater: 200 W,
power supply: 230 V, 50/60 Hz

Ideal for:

microorganism culture, animal and plant cell culture, constant temperature, germination, etc.

Features:

optimized air flow by forced-air mechanism
temperature uniformity and accuracy by high performance 3-sided heating mechanism
2x PE-coated steel wire shelves included
ambient to 70°C of temperature range, accuracy of ±0.2°C at 37°C, ±0.3°C at 50°C
corrosion resistant stainless steel chamber, powder-coated body
inner tempered glass door with silicone packing offers easy observation without door opening
RS232C interface for monitoring and controlling (WireRemote) storage function for the set values of temperature and timer
alarm function: error status and timer end
backlight LCD display
CE & UL/CUL certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection and locking mode

Controller:

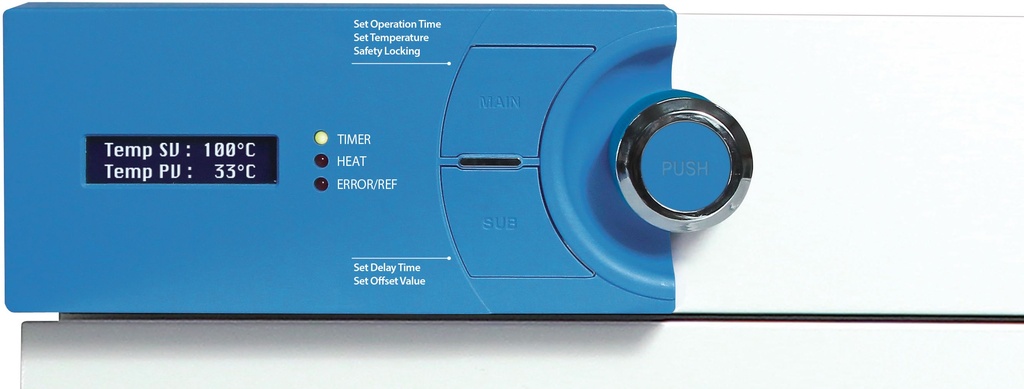

Jog-Dial controller (PID) with 2-way knob (turn and push), digital LCD with backlight, and two durable setting buttons

Features

Jog-Dial controller:

ergonomic design for easy and convenient usage
2-way Jog-Dial knob provides simple setting of required temperature and time
high quality illuminated LCD
„MAIN“ and „SUB“ button to access all menus

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

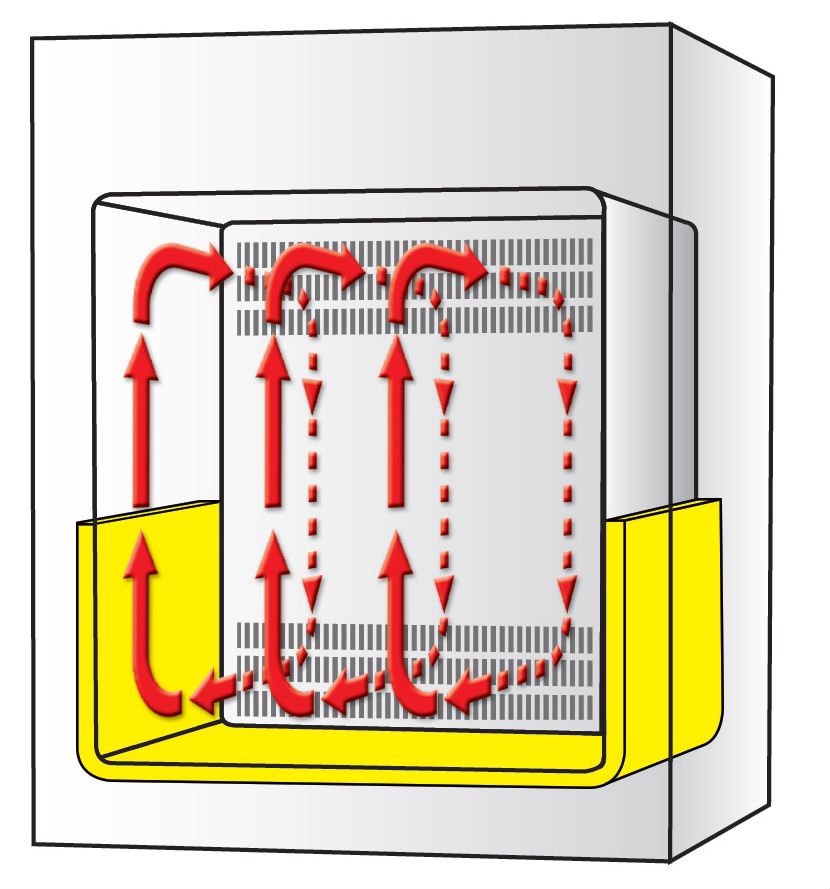

Forced-air: The incubators forced-air flow is established by a three sided heating element in combination with a very effective fan placed in an air-flow room for best temperature uniformity in the whole chamber.

Width (Outer)
518 mm

Height (outer)
700 mm

Length (outer)
637 mm

Heating time
17 min. to 37°C, 28 min. to 50°C

Width (inner)
370 mm

Shelves
2 PE-coated steel wire shelves included, total load 32kg (16kg per shelf)

Weight
46 kg

Weight with packaging
58 kg

Heating power
200 W

Height (inner)
419 mm

Capacity
50 l

Length (inner)
350 mm

Hole diameter
Inner Ø35 mm

Holes
1 ventilation hole with stainless steel cap

Power consumption
216.3 W

Temperature variation
±0.5°C at 37°C, ±0.9°C at 50°C

Temperature control resolution
Control ±0.1°C

Temperature range
Room temperature +5°C - 70°C

Temperature fluctuation
±0.2°C at 37°C, ±0.3°C at 50°C

Packing size
628 x 752 x 775 mm

Recovery time
3 min. to 37°C, 4 min. to 50°C

Sensor
Temperature sensor PT100
