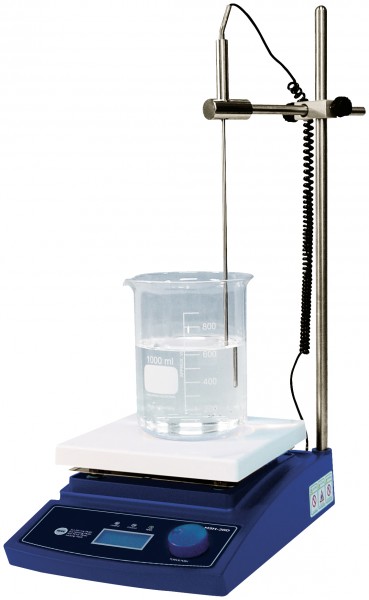

Magnetic stirrer with hotplate MSH-D digital, up to 380°C, 80-1,500 rpm - SET

DH.WMH03021

Piece

Digital Hotplate stirrer, MSH-20D Set,
ceramic-coated plate 180 x 180 mm,
with digital feedback control,
Timer: 99 hr./ 59 min.,
temp. up to 380°C, 80-1500 rpm,
stirring capacity: 20 liter,
dimension: 206 x 307 x 99 mm,
weight: 5 kg,
power: 600 W,
power supply: 230 V, 50/60 Hz

additional supplied with:
direct contact temperature sensor SS200, PT100
stand rod RD200, stainless steel 450 x 12 mm
clamp and holder CL220, for temp. sensor

Ideal for:

mixing of chemical, laboratory and pharmaceutical materials
heat-sensitive procedures in microbiology and biochemistry
sample drying and general lab heating applications where high temperature is needed



Features:

up to 380°C
shade motor for 80-1,500 rpm
digital display with backlight
ceramic-coated aluminium plate 180x180 / 260x260 mm
heat-, chemical- and restricted acid-resistant
no liquid can get into the body
powder-coated body
easy to clean

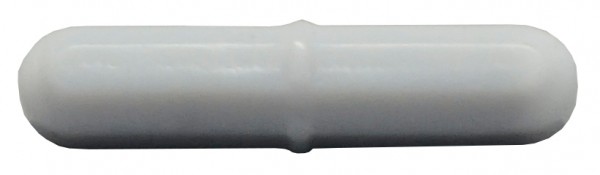

30 mm stirrer bar included
CE certified and unique serial number for tracing



Safety mechanism:

timer 99h 59min with timer-end signal
error status
locking mode
operation LEDs



Controller:

Jog-Shuttle controller with touch-button


Version
Set

Width (Outer)
206 mm

Height (outer)
99 mm

Length (outer)
307 mm

Power supply
230 V, 50/60 Hz

Version with filter
rectangular

Controller
Digital

Housing material
Powder-coated aluminium

Speed
80 - 1500 rpm

Weight
3.3 kg

Weight with packaging
5 kg

Heating power
600 W

Capacity
20 l

Plate size
180 x 180 mm

Plate material
Ceramic-coated aluminium

Temperature control resolution
Display 0.1°C, control 0.5°C

Temperature range with filter
380°C

Temperature accuracy
±0.3°C

Packing size
400 x 280 x h200 mm
