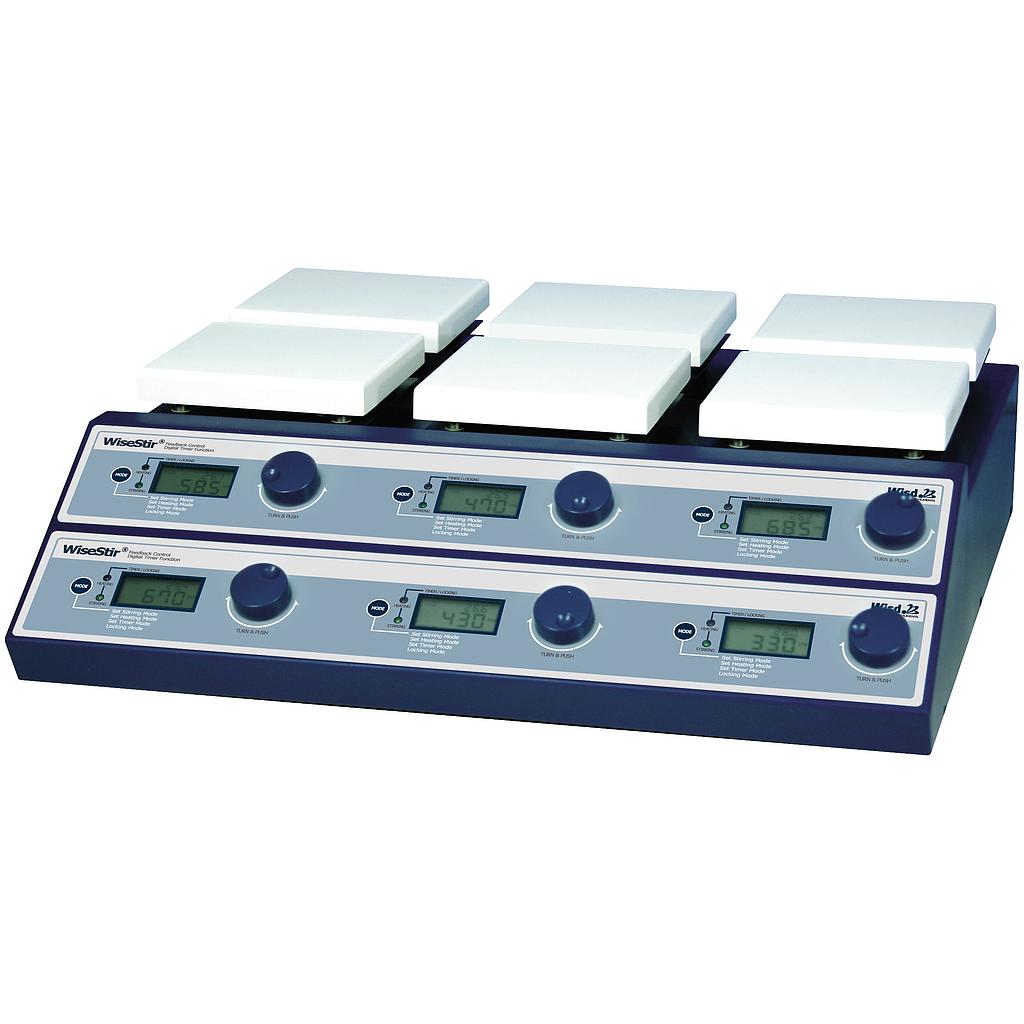

Magnetic stirrer with hotplate SMHS-6 with 6 places 350°C 1500rpm

DH.WMH03506

Piece

Multi-Hotplate stirrers SMHS-6,
6 places (3X2),
digital feedback controller,
Timer: 99 hr. / 59 min.,
ceramic plate 140 x 140 mm,
Temp. range max. 350°C,
stirring capacity: max. 20 Liter,
speed range: 80-1500 rpm,
heating power: 3,0 kW,
dimension: 510 x 410 x 180 mm,
weight: 18 kg,
power supply: 230 V, 50/60 Hz

Ideal for:

multiple mixing and heating applications at the same time
mixing of chemical, laboratory and pharmaceutical materials
heat-sensitive procedures in microbiology and biochemistry
sample drying and general lab heating applications

Features:

each place individually adjustable
digital Jog-Dial controller for each place
up to 350°C
up to 1.500 rpm
ceramic-coated aluminium plate with 3 or 6 places 140x140 mm
heat-, chemical- and restricted acid-resistant
no liquid can get into the body
powder-coated steel body
easy to clean
30 mm stirrer bar included (3x / 6x)
up to 3 temperature probes possible (3 & 6 place-type)
CE certified and unique serial number for tracing

Safety mechanism:

timer 99h 59min with timer-end signal
error status
locking mode
operation LEDs

Controller:

Jog-Dial controller with touch-button

Version
6 (2x3) stirring points

Width (Outer)
410 mm

Height (outer)
180 mm

Length (outer)
510 mm

Connections
3 temperature sensor ports, 6 stand rod sockets

Controller
Digital

Housing material
Powder-coated steel

Speed
80 - 1500 rpm

Weight
18 kg

Weight with packaging
18 kg

Heating power
6 x 400 W

Capacity
20 l

Plate size
140 x 140 mm (each place)

Plate material
Ceramic-coated aluminium

Temperature control resolution
Display 0.1°C, control 0.5°C

Temperature range with filter
350°C

Temperature accuracy
±0.3°C

Packing size
570 x 540 x h230 mm
