Baths WSB-45 Shaking water bath 45 Liter 100°C ±0,1°C

DH.WSB03045

Piece

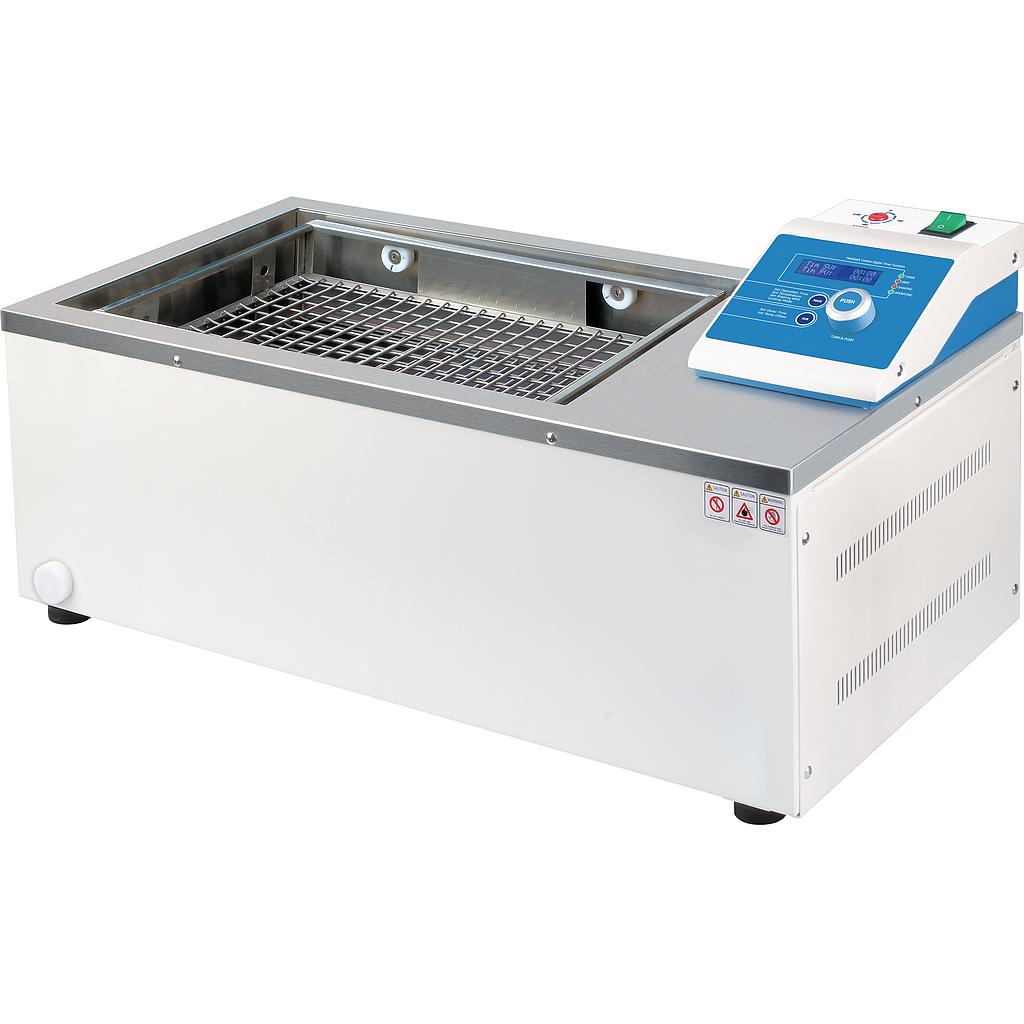

Shaking Water Bath, type WSB-45,
capacity 45 Liter,
reciprocating motion,
with digital fuzzy control,
temperature range: ambient +5°C to 100°C,
shaking speed: 20 to 250 stroke/min.,
timer: 99 hr. / 59 min.,
delay & continuous function incl.,
bath dimension: 600 x 380 x 200 mm,
external: 863 x 433 x 340 mm,
incl. stainless steel spring rack,
230 V, 50/60 Hz

Ideal for:

direct immersion of samples for shaking in the field of biotechnology and laboratories, hybridization applications, cell cultures, cell aeration, increasing solubility rates, molecular biology assays and bacterial vultures

Features:

stainless steel interior and bath, powder-coated steel body, double painted & baked body, 20 mm polyurethane-insulation
high-performance shaking engine ensures best smoothly shaking motion, minimum noise and vibration
universal stainless steel spring rack included: for various kind of flasks and tubes (up to 2l), easy to disassemble
user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
drain valve mounted
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detection

Controller:

Jog-Dial controller (turn + push)
digital feedback controller for precise speed control
digital fuzzy controller for precise temperature control

Version
max. quantity of Erlenmeyer flasks: 18 x 250 ml, 15 x 500 ml, 8 x 1000 ml

Width (Outer)
863 mm

Height (outer)
340 mm

Length (outer)
433 mm

Width (inner)
600 mm

Weight with packaging
32 kg

Height (inner)
200 mm

Capacity
45 l

Length (inner)
380 mm

Shaking speed
20 - 250 rpm, 1 rpm-display, 1 rpm-control

Shaking stroke
20 mm (other strokes on request)

Power consumption
2400 W

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±0.5°C at -20°C

Temperature accuracy
±0.1°C

Packing size
920 x 500 x 450 mm

Sensor
Temperature sensor PT100
