Baths WVB Viscosity bath 100°C ±0,1°C

DH.WVB01030

Piece

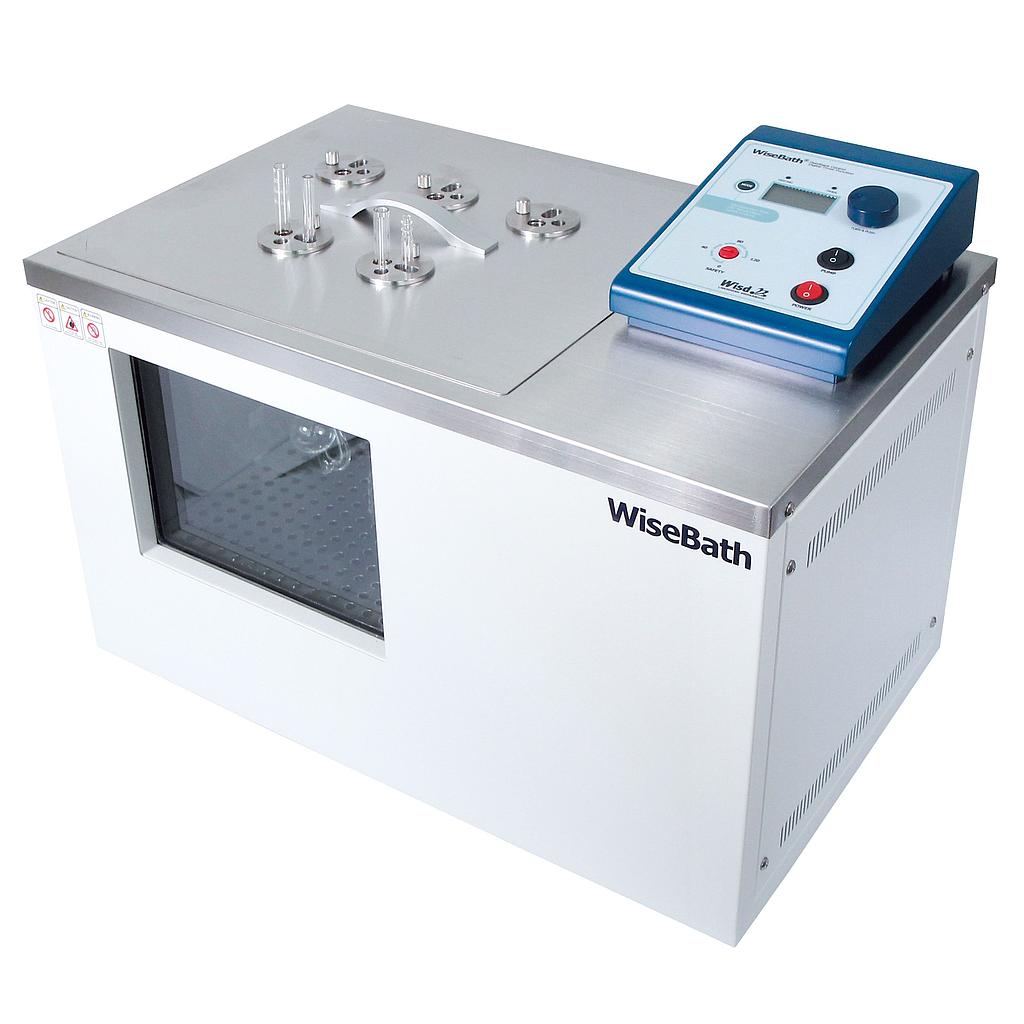

Precise Viscosity Bath, type WVB-30,
capacity 30 Liter,
with transparent windows,
with digital fuzzy control,
temp.range: ambient +5°C to 100°C,
timer: 99 hr. / 59 min.,
effective space: 330 x 300 x 260 mm,
external dimension: 585 x 375 x 420 mm,
heater: 2 kW,
incl. stainless steel lid for the support of 5 viscometer holder,
Power supply: 230 V, 50/60 Hz serial-no.

Ideal for:

precise measurement with capillary viscometers

Features:

powerful circulation pump ensures highest temperature uniformity
stainless steel interior and lid with 5 holes for viscometer holder, powder-coated steel body, vacuum sealed and tempered safety glasses window
storage function for the set values of temperature and timer
digital timer function (99hr 59min): delay time and operation time can be controlled
user‘s self-compensation function to control difference between real temperature and indicated temperature (±10.0°C)
drain valve mounted
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

overheat and over-current protection
sensor error detectionlocking mode

Controller:

digital fuzzy controller with Jog-Shuttle-switch (turn + push)

Version
with viewing window 230 x 180 mm

Width (Outer)
585 mm

Height (outer)
420 mm

Length (outer)
375 mm

Width (inner)
350 mm

Weight with packaging
24 kg

Height (inner)
300 mm

Length (inner)
300 mm

Effective space
330 x 300 x 260 mm

Pump performance
30 l/min, magnetic drive

Power consumption
2000 W

Temperature control resolution
Display 0.1°C, control 0.1°C

Temperature range
Room temperature +5°C - 100°C

Temperature fluctuation
±0.2°C

Temperature accuracy
±0.1°C

Packing size
640 x 450 x 500 mm

Sensor
Temperature sensor PT100

Flow rate
30 l/Min
