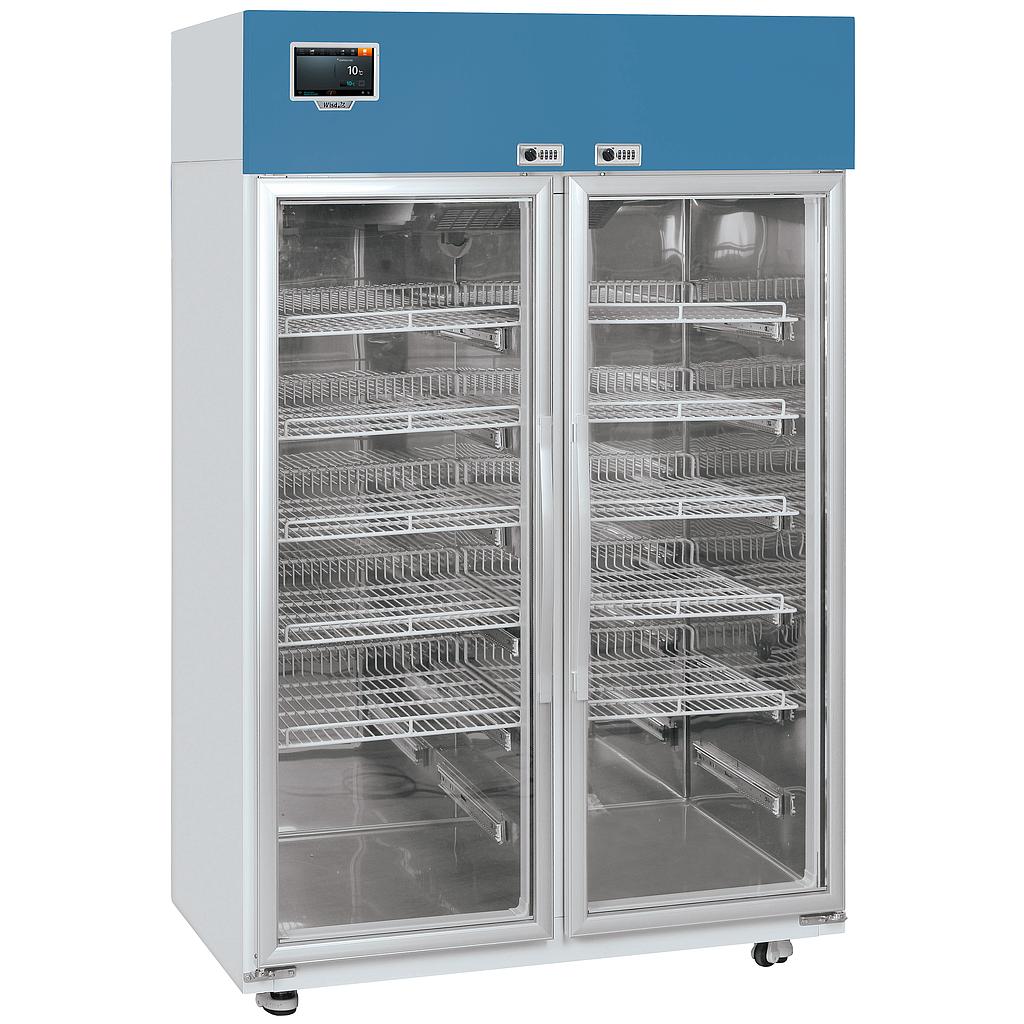

Laboratory Refrigerators LR-1000, with Smart-Lab Controller, 1140 Liter
Article NumberDH.REFL1000
Unit of MeasurePiece
Laboratory Refrigerators LR-1000,
with Smart-Lab Controller,
capacity: 1140 Liter,
temp. range: 0°+10°C,
internal: 1140 x 700 x 1430 mm,
external: 1260 x 805 x 1930 mm,
with 12 shelves,
with glass door,
power supply: 230 V, 50/60 Hz
Ideal for:
laboratory refrigeration
Features:
CFC free refrigerant (R-404A)
intelligent control of refrigerator for preventing overload of compressor
pre-set points to warn of temperature deviation at +5.5°C or -1.5°C
built-in battery for power failure alarm
automatic condensate removal, no drain line required
extensible PTFE-coated wire shelves (6 or 12 acc. to model)
stainless steel interior and powder-coated steel body
optional built-in chart recorder & remote alarm system
double fold tempered glass window
castors for easy movement
CE certified and unique serial number for tracing
Safety mechanism:
overheat and over-current protection
push alarm service to your smartphone
sensor error detection
door locking system
door open error
door ajar and power failure alarm
Controller:
Smart-Lab™ controller with 7? full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnostic function
automatic data recording
data transfer to PC by USB memory
Internet connectivity with WiFi
Features
SMART-LabTM Controller:
full touch screen TFT LCD:
WiRe™ app service, remote control system
variable program settings
self-diagnosis function and interactive temperature graph
automatic data recording and password protection
data transfer to PC by USB memory
digital calibration (offset function)
min-/max-temperature memory & program function
push-alarm service to smartphone or tablet PC
Door locking system:for safe storage of all probes
Forced-air refrigeration:superior temperature
Auto-defrost system
Extensible shelves:easy storage and classification of samples in the refrigerator
convenient for cleaning and maintenance processes due to PTFE-coating
Castors for easy movement
Version
Defrost & circulation: automatic defrost and melt water evaporation, dual turbo fan forced-air circulation
Width (Outer)
1260 mm
Height (outer)
1930 mm
Length (outer)
805 mm
Ideal for
Laboratory refrigeration
Width (inner)
1140 mm
Shelves
12 PTFE-coated steel wire shelves, height adjustable
Weight
208 kg
Weight with packaging
278 kg
Height (inner)
1430 mm
Capacity
1140 l
Compressor
250 W
Length (inner)
700 mm
Power consumption
750 W
Temperature control resolution
Display 1.0°C, control 1.0°C
Temperature range
0°C - +10°C (at 30°C room temperature & 70% humidity)
Evaporator
Auto exchange dual evaporator
Packing size
1510 x 1240 x 2200 mm
Sensor
Temperature sensor PT100
