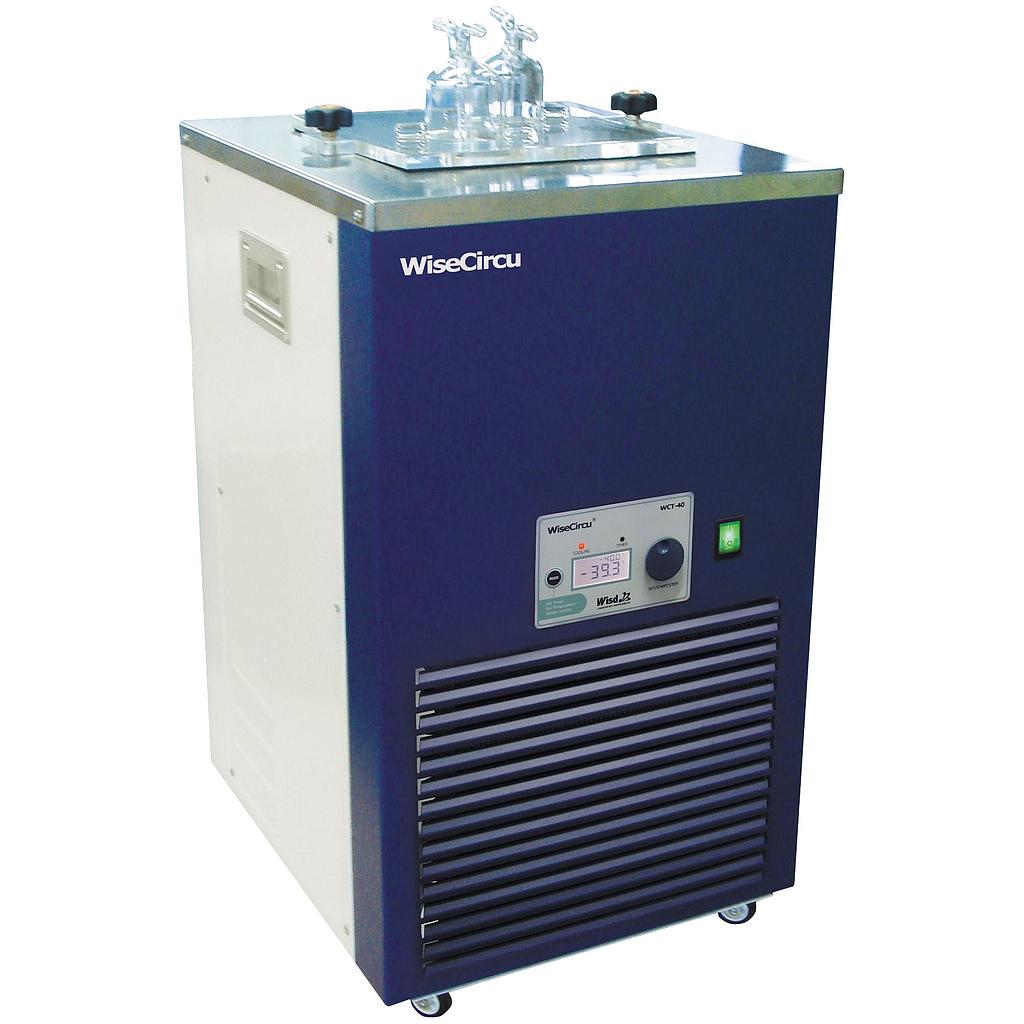

Baths WCT-80 Cold trap bath 10 Liter -80°C

DH.WCT00180

Piece

Refrigerated Bath WCT40 for cold traps,
capacity: 10 L,
with Temperature Controller and digital Display,
temperature range down to -40°C,
Bath: 220 x 220 x 210 mm,
external dimension: 377 x 453 x 705 mm,
refrigerator 736 W,
Power supply: 230 V, 50/60 Hz

Ideal for:

collecting evaporation vapor or hazardous vapor from vacuum line

Features:

stainless steel bath
powder-coated steel, double painted & baked, 20 mm polyurethane-insulation
digital timer function (99hr 59min): delay time and operation time can be controlled
user‘s self-compensation function to control difference between real temperature and indicated temperature
drain valve mounted
backlight LCD display
CE certified and unique serial number for tracing

Safety mechanism:

over-current protection
sensor error detection and leakage breaker
locking mode

Controller:

digital PID controller with Jog-Shuttle-switch (turn + push)

Version
2 glass cold trap

Width (Outer)
377 mm

Height (outer)
705 mm

Length (outer)
453 mm

Ideal for
Collecting evaporation vapor or hazardous vapor from vacuum line

Width (inner)
220 mm

Weight with packaging
90 kg

Height (inner)
210 mm

Capacity
10 l

Refrigerant
Mixture of R1270, R14, R134A, R404A, R508A

Length (inner)
220 mm

Temperature range
-65°C up to -80°C

Packing size
680 x 640 x 1130 mm

Refrigerator
750 W
