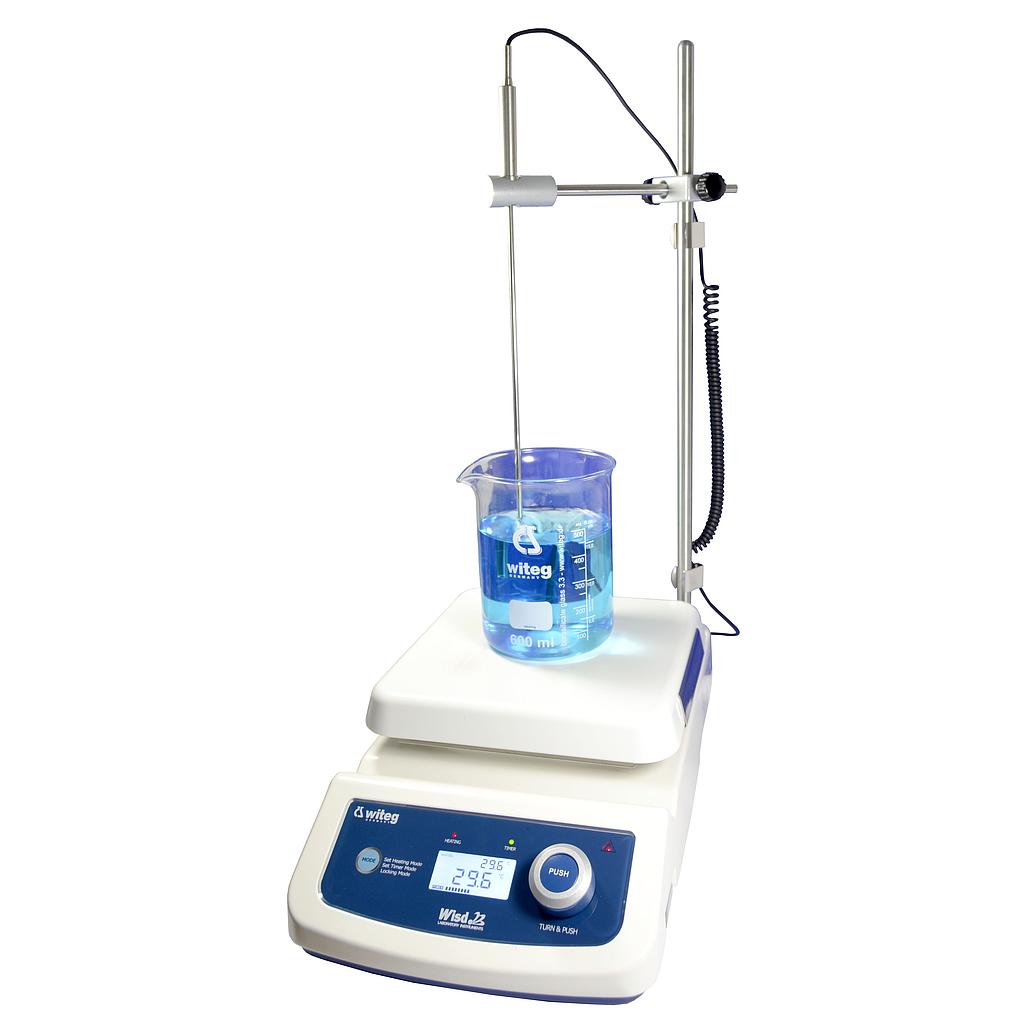

Hotplate HP-500D SET digital, 500°C

DH.WHP04020

Piece

Digital Hotplate, HP-500D-Set,
solid ceramic plate 200 x 200 mm,
with digital feedback control,
Timer: 99 hr./ 59 min.,
temp. range max. 500°C,
dimension: 205 x 345 x 135 mm,
weight: 3,3 kg,
power: 850 W,
power supply: 230 V, 50/60 Hz

additional supplied with:
direct contact temperature sensor SS500,
PT100, stand rod RD200, stainless steel 450 x 12 mm
clamp and holder CL220, for temp. sensor serial-no.

Ideal for:

sample drying and general lab heating applications where high temperature is needed


Features:

up to 500°C
digital display with backlight
high-quality solid ceramic plate 200x200 mm
heat-, chemical- and acid-resistant
perfect heat uniformity from the inner to the edge
no liquid can get into the body
powder-coated aluminium body
CE certified and unique serial number for tracing


Safety mechanism:

hot top indicator lamp
high quality insulation (BTU)
timer 99h 59min with timer-end signal
error status
locking mode
operation LEDs


Controller:

Jog-Dial controller with touch-button for precise temperature control

Features

Protection: Two features protect the device from internal corrosion and prolong its life time: the closed coverage type and the intelligent fluid management system, which leads off accidentally spilled liquids away from the interior of the device.

Surface: The superior full ceramic plate achieves up to 500°C, is resistant against aggressive chemicals and easy to clean.

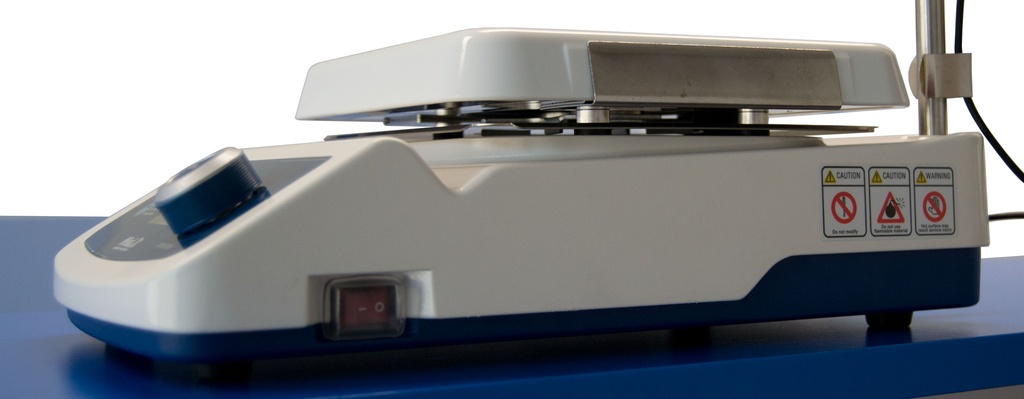

Housing: The die-cast case with high-quality insulation ensures user safety during operation at high temperatures. The minimized heat transfer from the plate to the inside also ensures a longer life time.

Temperature control & safety:Two independent internal temperature sensors assure accurate temperature control and prevent from malfunction or danger caused by overheating.

Accessories: The external temperature sensor allows accurate temperature due to digital feed-back control system.

Safety first: Hot top indicator lamp illuminates when temperature on the plate is over 50°C.

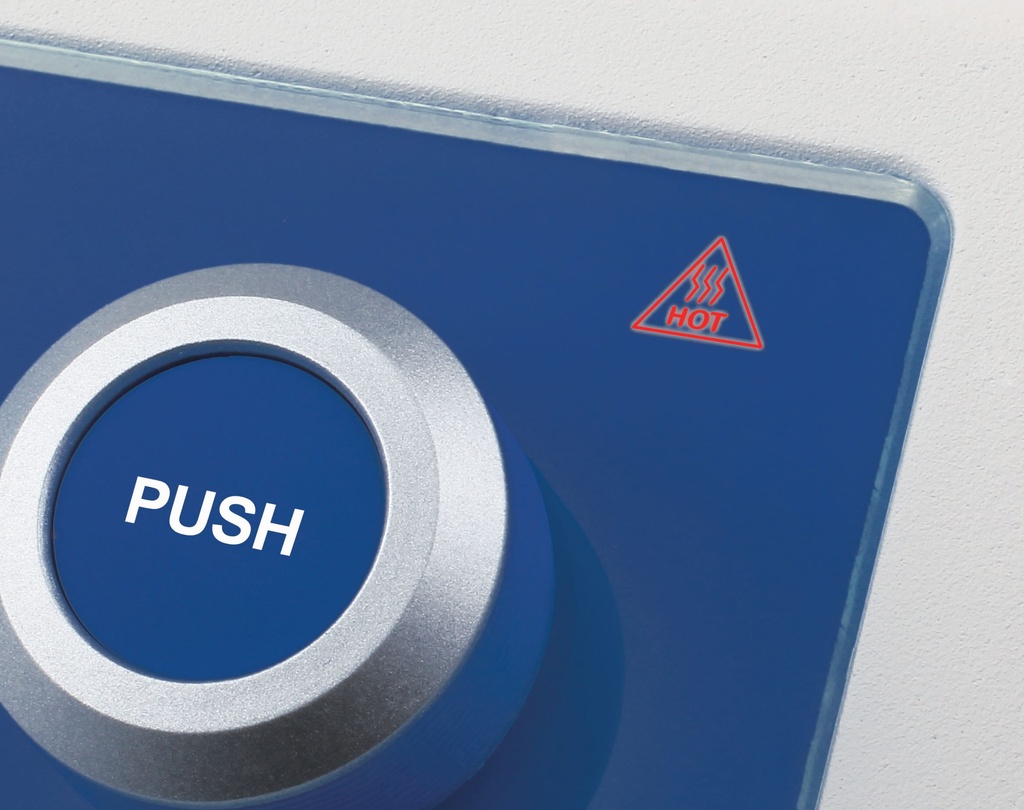

Controller: New Jog-Dial “Turn + Push” and touch button are designed for intuitive, easy and direct use.


Version
Set

Width (Outer)
205 mm

Height (outer)
135 mm

Length (outer)
345 mm

Version with filter
rectangular

Controller
Digital

Housing material
powder-coated aluminium

Heating power
850 W

Plate size
200 x 200 mm

Plate material
solid ceramic plate

Temperature control resolution
0.1°C display, 0.5°C control

Temperature range
max. 500°C

Temperature accuracy
±0.3°C
