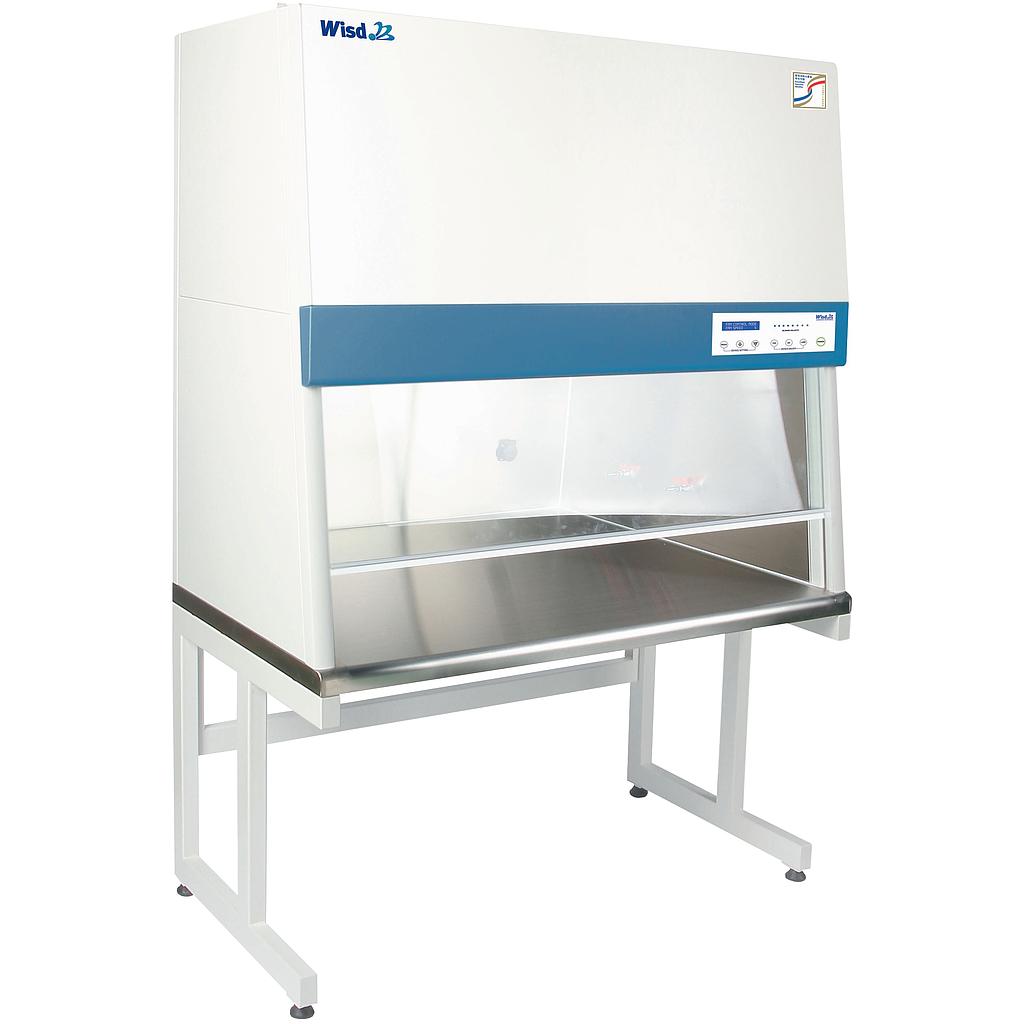

Clean bench WLC-V1800 - 2020m²/h with HEPA Filter
Article NumberDH.WLCV1800
Unit of MeasurePiece
Laminar Flow Clean Bench, type WLC-V1800,
vertical air flow,
air volume: 2020 m²/h,
8-step air velocity control,
air flow velocity: 0,3-0,6 m/s,
HEPA filter class 100,
with air- and gas cock,
dual UV- (30W) and florescent lamp (56W),
digital microprocessor controller and back light LCD display,
timer: 99 hr. / 59 min.,
dimension interior: 1800 x 660 x 610 mm,
exterior: 1880 x 735 x 1895 mm,
tempered safety glass sliding door,
corrosion resistant stainless steel working table,
power supply: 230 V, 1 phase, 50/60 Hz
Ideal for:
protection of samples and work processes against dust and particulate contamination
Features:
class 100 HEPA filter of efficiency up to 99.97% & 0.3 micron size (easy to exchange)
mesh guard for HEPA filter protection
vertical air flow-type
optimized air flow system for uniform air flow/velocity
8 steps air velocity control
UV and fluorescent lamp, external gas connection valve, internal electrical outlet
silent and vibration-free blower (under 65 dB)
corrosion resistant 304 stainless steel working table interior, powder-coated body and tempered safety glass sliding door for protection from UV radiation
99hr 59min timer
high-quality backlight LCD display
CE certified and unique serial number for tracing
Safety mechanism:
UV protection system: UV lamp is only activated when safety glass door is completely closed
Controller:
microprocessor digital controller
high performance touch input
Features

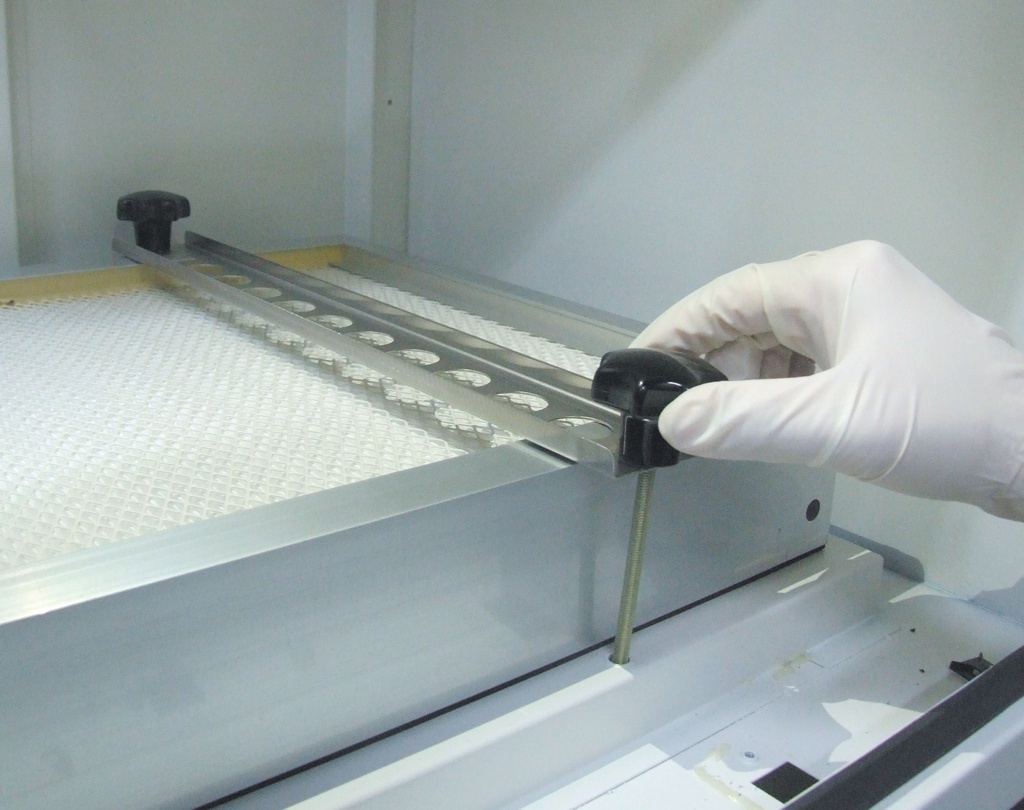

Class 100 HEPA filter & vertical air flow:The laminar flow clean bench provides reliable protection for samples and work processes against particulate contamination. The air from above the cabinet vertically goes through a pre-filter and a class 100 HEPA filter with an efficiency up to 99.97% & 0.3 micron size.

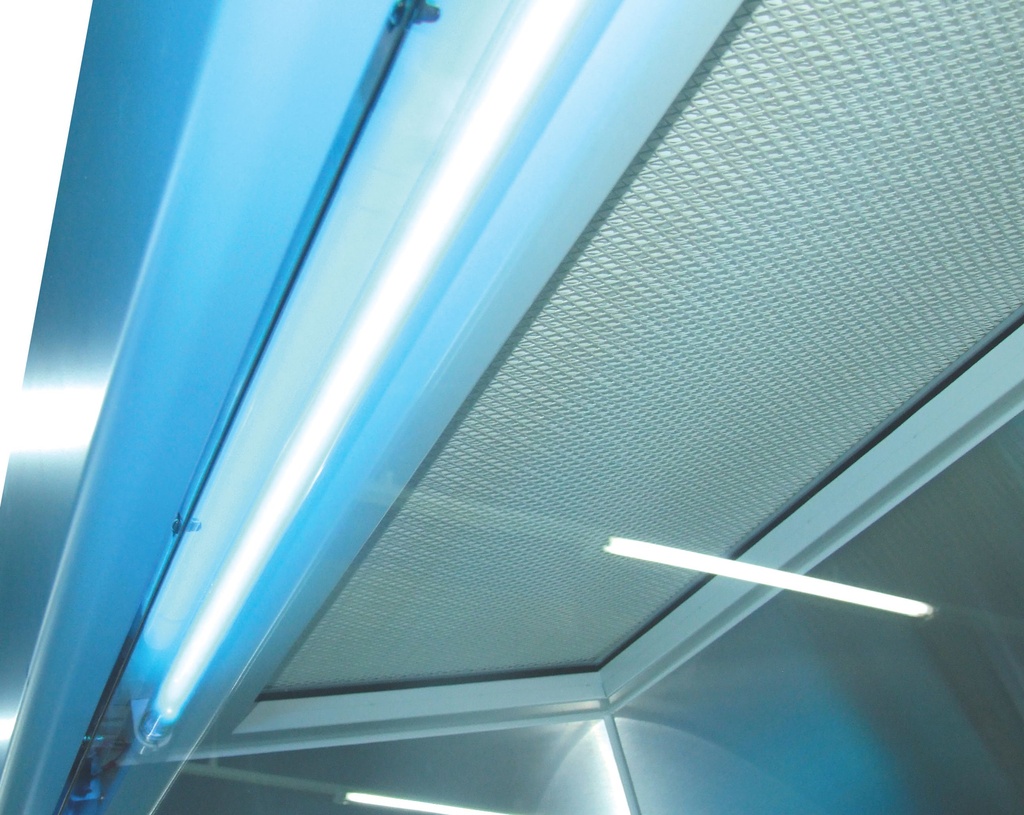

UV lamp:The built-in UV lamp contributes to a better sterilization. The UV lamp automatically turns off when the front door is opened.

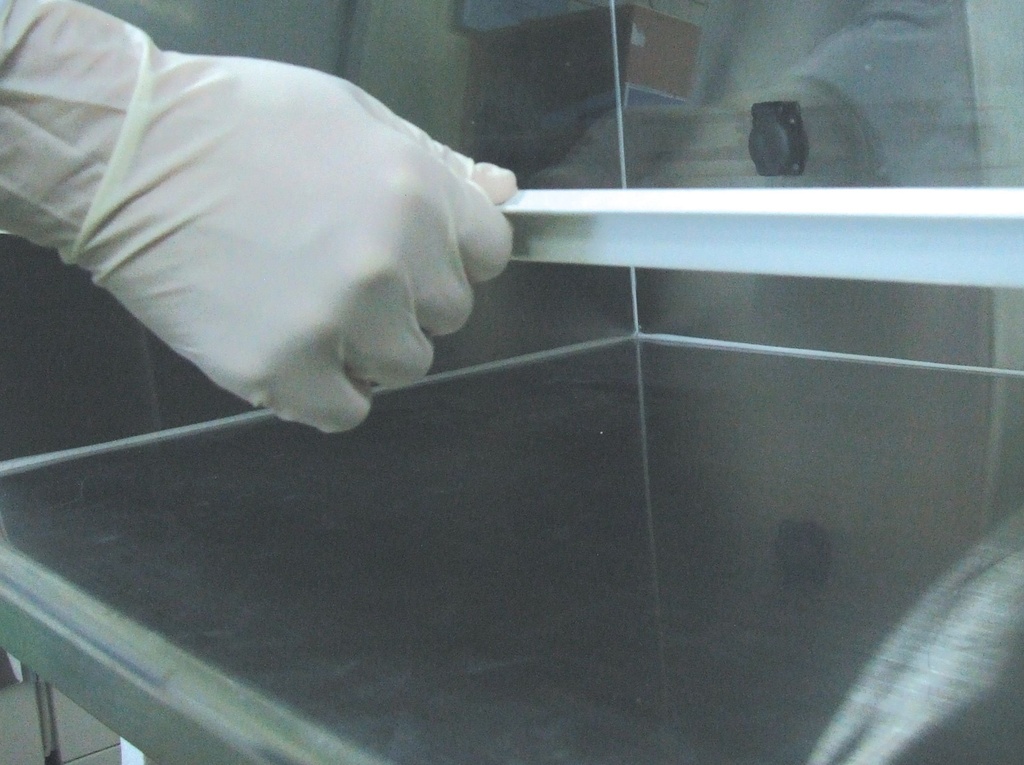

Door: Easy to open tempered glass sliding door ensures safe operation and protection against UV radiation.
Connections:Operation of different types of devices within the clean bench due to two built-in power connections. Connection of two different gas types possible.

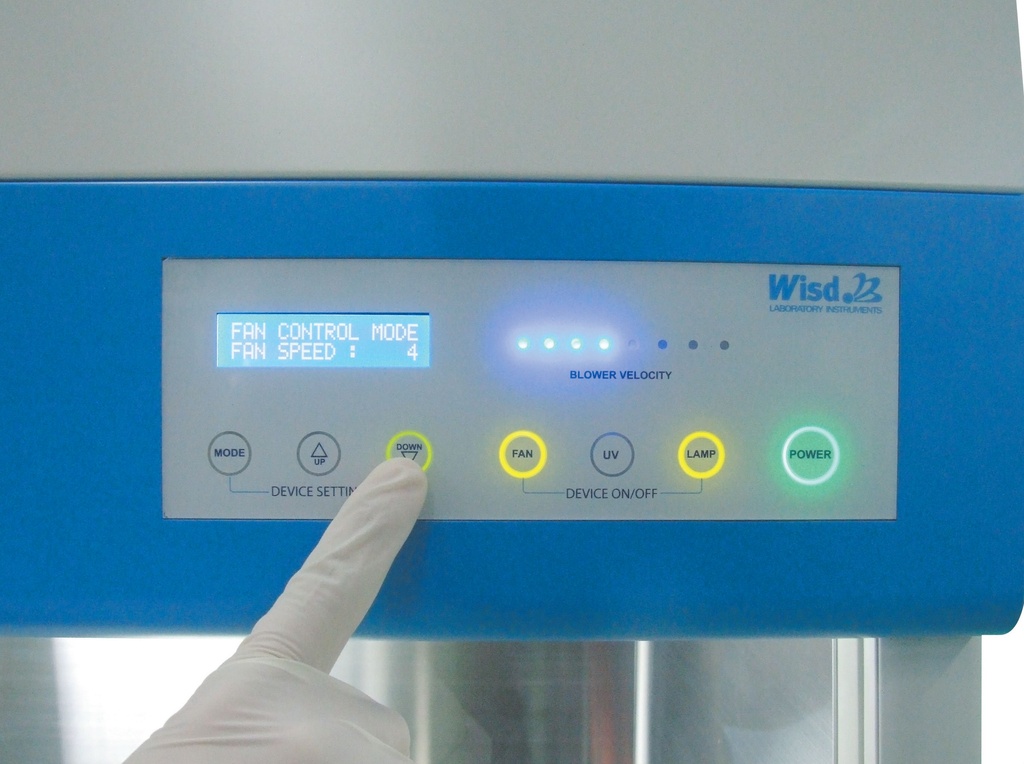

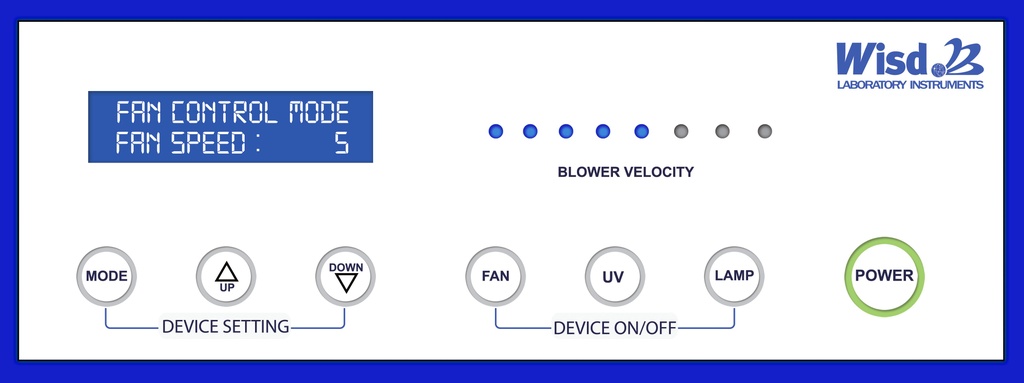

Controller: Intuitive touch-button controller. 8-step control of air-flow speed. Timer function for UV lamp.
Width (Outer)
1880 mm
Filter
HEPA filter: class 100, 0.3 μm particle removal 99.97%; pre-filter: 3-30 μm particle removal
Height (outer)
1895 mm
Length (outer)
735 mm
Ideal for
Protection of samples and work processes against dust and particulate contamination
Connections
1 x air cock, 1 x gas cock, 2 x 230 V outlet
Illumination
1 UV 30 W, 1 x FL 55 W
Width (inner)
1800 mm
Speed
Air flow: 0.3 - 0.6 m/s, air velocity control: 8 steps
Height (inner)
610 mm
Length (inner)
660 mm
Air volume
2020 m2/h
