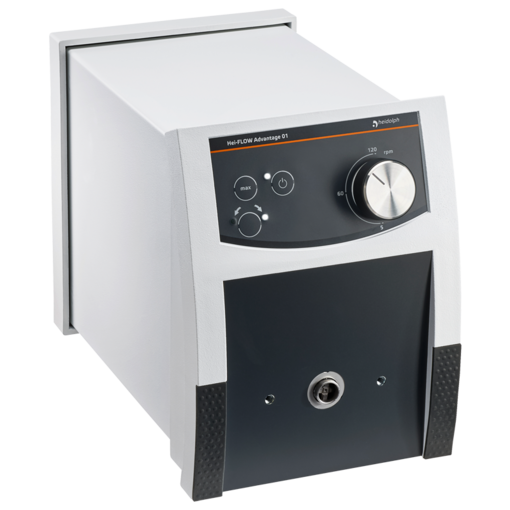

Heidolph Hei-FLOW Advantage 01 (CH-Plug)

523-51010-00

Piece

Speed range 5 - 120 rpm
Control accuracy motor ±0.5 %
Select direction of rotation CW / CCW
Flow rates single-channel pumps 0.38 – 813 ml/min
Flow rates multi-channel pumps 0.005 – 329 ml/min
Flow rate accuracy (water without counter pressure) ±3.5 %
Interval dosing -
Volume dosing -
Analog interface for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
Digital Interface -
Protection class DIN EN 60529 IP 55

For reproducible results and liquid transfer

Flow rates of 0.38 - 813 ml/min with single-channel pump heads
Multi-channel flow rates from 0.005 - 329 ml/min
This pump drive is suitable for multi-channel operation
Control speed (rpm), direction and On/Off function via analog interface for 0 – 10 V or 4 – 20 mA
Adjust the variable speed from 5 - 120 rpm on the analog control knob. Your speed is held constant even under changing loads
These models feature electronic speed control at an accuracy of ± 0.5 %
These models connect to an optional foot-pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety and superior ease of use in multiple sample fills
A press of the max button accelerates the filling and draining of your tube
At the press of a button the pump operates clockwise or counter-clockwise


Multi-Channel Operation:

Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system
Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate
Save time: tubing change is done in just seconds
In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation
Change your cassettes easily, even during operation – there are no restrictions
Cassette adjustments and changes are simple, just click in place
No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs
