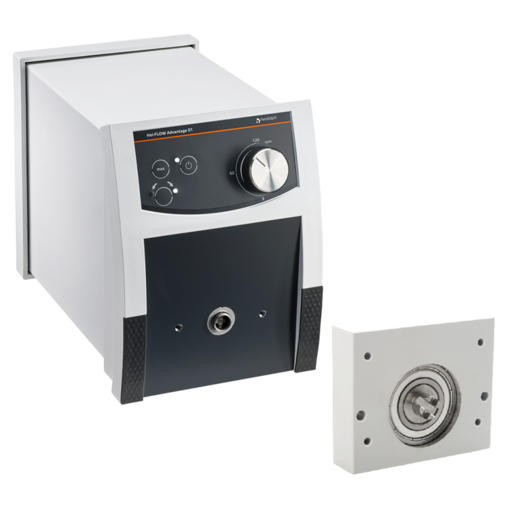

Heidolph Hei-FLOW Advantage 01 Multi (CH-Plug) Peristaltikpumpe mit Adapter

523-51013-00

Piece

Speed range 5 - 120 rpm
Control accuracy motor ±0.5 %
Select direction of rotation CW / CCW
Flow rates single-channel pumps 0.38 – 813 ml/min
Flow rates multi-channel pumps 0.005 – 329 ml/min
Flow rate accuracy (water without counter pressure) ±3.5 %
Interval dosing -
Volume dosing -
Analog interface for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop
Digital Interface -
Protection class DIN EN 60529 IP 55

For reproducible results and liquid transfer

Flow rates of 0.38 - 813 ml/min with single-channel pump heads
Multi-channel flow rates from 0.005 - 329 ml/min
This pump drive is suitable for multi-channel operation

Control speed (rpm), direction and On/Off function via analog interface for 0 – 10 V or 4 – 20 mA
Adjust the variable speed from 5 - 120 rpm on the analog control knob. Your speed is held constant even under changing loads
These models feature electronic speed control at an accuracy of ± 0.5 %
These models connect to an optional foot-pedal remote control via cable to start and stop your pump drive outside a closed fume hood increasing your personal safety and superior ease of use in multiple sample fills
A press of the max button accelerates the filling and draining of your tube
At the press of a button the pump operates clockwise or counter-clockwise


Multi-Channel Operation

Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system
Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate
Save time: tubing change is done in just seconds
In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation
Change your cassettes easily, even during operation – there are no restrictions
Cassette adjustments and changes are simple, just click in place
No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs
