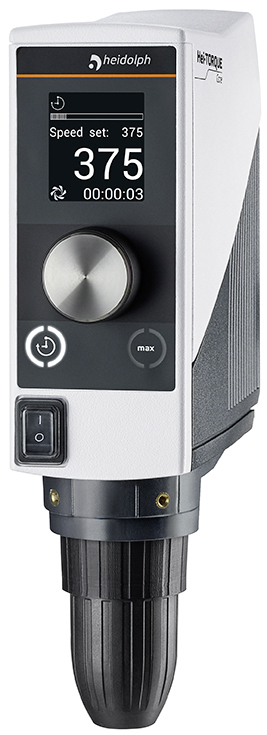

Hei-TORQUE Core

501-60410-00

Piece

Number of speed gears 1
Rotation speed range 20 - 2,000 rpm
Rotation speed indicator digital
monochrom 2"
Speed control electronic
Max. torque 40 Ncm
Torque indicator symbol
Overheat protection automatic cut-out
Viscosity max. 10,000 mPa s
Stirring cap. (H2O), max. 25 l
Throught-shaft design ✔
Shaft diameter, max. 10.5 mm
Counter/ Timer ✔
Analog / digital interface -
Power rating motor input 105 W
Protection class DIN EN 60529 IP 42

Lightweight for big tasks


The compact design allows for integration in closed systems, such as fume hoods, reactors, or production systems. Suitable for low- to medium-viscosity media up to 25 l.
The large diameter of the chuck (10 mm) allows you to use even large impellers and VISCO JET® tools. This facilitates a wide variety of applications, such as homogenization, dispersing, the dissolving of agglomerates, and more.

Torque up to 40 Ncm
Speed range up to 2,000 rpm
Viscosity up to 10,000 mPas
Control knob for rotation speed, pushing starts or stops the function
Timer
“Max” button for short-term operation at maximum speed
